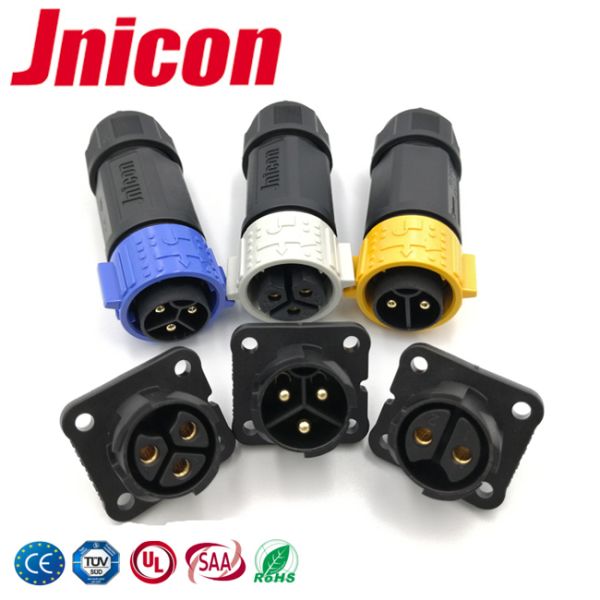

CE approval M25 Waterproof Panel Mount Connector Quick Lock Electrical Power Connectors
CE approval M25 Waterproof Panel Mount Connector Quick Lock Electrical Power Connectors
Specifications
Brand Name :
Jnicon
Model Number :
M25
Certification :
CE,TUV,UL,RoHS
Place of Origin :
China
MOQ :
100 (10 Pairs of samples)
Price :
Negotiable
Payment Terms :
T/T,Paypal,L/C,Western Union
Supply Ability :
10000/days
Delivery Time :
3-6 working days
Packaging Details :
High Quality export carton
Protection level :
IP67 Waterproof
Current Rating(A) :
50A
Operating Voltage :
500V
Connection Way :
Push locking
Gender :
Male Plug Female Socket
Material :
PPA
Description

Jnicon 3Pin Cable Connector Waterproof Circular Connectors M25 50A

Quick Detail Of Waterproof Circular Connectors

1) Advanced structure: Self-locking

2) Mutiple pin:2,3,4,5,6,7,8,9 to 22 pins are optional

3) Contact pin: Screw terminal and soldering terminal available

4) Assembly: wire to wire type(no cable),wire to wire by overmolding, wire to board

5) Colours:Black,blue,white and yellow color supported

6) Cable length:Different cable length could be customized

M25 waterproof Circular connector is the perfect solution to make your own waterproof connection cables easily. Thanks to its screw based terminal, soldering is not required and installation just takes a few minutes.

Operation Parameters
Voltage Rating 600VAC max
Current Rating 50A max
Min Wire Size OD 6.5mm ~ 10mm
Max Wire Size OD 10.5mm ~ 18mm
Max.Cable Cross Section Area 0.5mm2 ~ 6.0mm2
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone


Once assembled, the M25 Outdoor Waterproof Circular Conector is easy to plug and play while keeping the elements and water out of splices and junctions. To disconnect, just unscrew the main body and pull apart the two ends.The M25 Waterproof conector has multiple waterproofing levels, consisting of o-rings, waterproof sealant, and flexible end seals designed to tighten and close awhen screwed together.

CE approval M25 Waterproof Panel Mount Connector Quick Lock Electrical Power Connectors

Application Of Waterproof Circular Connectors

Our products are widely used in LED lighting, outdoor soft strip display, electrical equipment, automated robots, electric bicycles, ships, electric vehicles, etc.

  1. LED lighting
  2. outdoor soft strip display
  3. electrical equipment
  4. automated robots
  5. electric bicycles
  6. Ships
  7. electric vehicles

Details and Pin Arrangement

CE approval M25 Waterproof Panel Mount Connector Quick Lock Electrical Power Connectors
