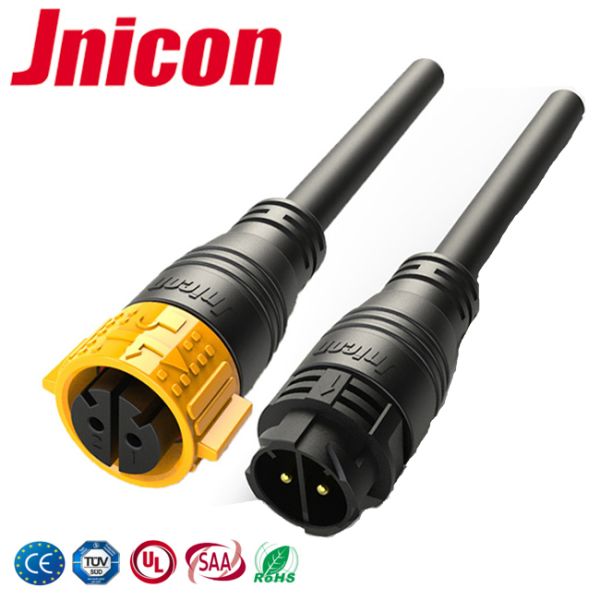

2 Pin M25 50A PPA Pin Power Connector Push Locking Waterproof Cable Connector
2 Pin M25 50A PPA Pin Power Connector Push Locking Waterproof Cable Connector
Specifications
Brand Name :
Jnicon
Model Number :
M25
Certification :
CE,TUV,UL,RoHS
Place of Origin :
China
MOQ :
100 (10 Pairs of samples)
Price :
Negotiable
Payment Terms :
T/T,Paypal,L/C,Western Union
Supply Ability :
10000/days
Delivery Time :
3-6 working days
Packaging Details :
High Quality export carton
Assembly Wire :
Soldering or Screw fitting
Pin :
2pin male female connector
Current Rating(A) :
50A For Power
Connection Way :
Push locking
Material :
PPA
Operating Voltage :
500V
Description

Jnicon 2Pin Cable Connector Waterproof Power Connectors M25 50A

Description:

  • TUV,UL,CUL,CE approval
  • Any quantity is welcome
  • Panel mount connectors: for PCB, for screw fitting or soldering
  • 2pin wire to wire waterproof connector
  • circular outdoor power cable connectors
  • waterproof cable connector ip67
  • 2pin DC power plug socket
  • industrial Electrical Plug socket

M25 waterproof Circular connector is the perfect solution to make your own waterproof connection cables easily. Thanks to its screw based terminal, soldering is not required and installation just takes a few minutes.

Operation Parameters
Voltage Rating 600VAC max
Current Rating 50A max
Min Wire Size OD 6.5mm ~ 10mm
Max Wire Size OD 10.5mm ~ 18mm
Max.Cable Cross Section Area 0.5mm2 ~ 6.0mm2
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone


Once assembled, the M25 Outdoor Waterproof Circular Conector is easy to plug and play while keeping the elements and water out of splices and junctions. To disconnect, just unscrew the main body and pull apart the two ends.The M25 Waterproof conector has multiple waterproofing levels, consisting of o-rings, waterproof sealant, and flexible end seals designed to tighten and close awhen screwed together.

2 Pin M25 50A PPA Pin Power Connector Push Locking Waterproof Cable Connector

This M25 circular power connector has a waterproof rating of IP67. To assemble the M25 Outdoor Waterproof Connector,only a Screwdriver is required to attach the two wires inside each main body. Once each side is connected, the wiring is fully protected from the elements.If soldering version needed, its also avialble.

Details and Pin Arrangement

2 Pin M25 50A PPA Pin Power Connector Push Locking Waterproof Cable Connector
