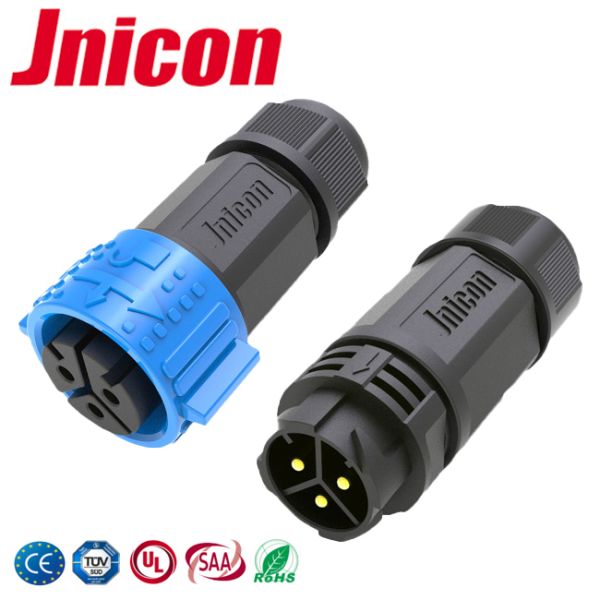

50A 500V M25 3 Pin Waterproof Outdoor Connectors Quick Lock Electrical Connectors
50A 500V M25 3 Pin Waterproof Outdoor Connectors Quick Lock Electrical Connectors
Specifications
Brand Name :
Jnicon
Model Number :
Waterproof Circular Connectors
Certification :
TUV, UL, 3C, CE, ROHS, ISO90001
Place of Origin :
China
MOQ :
100 (10 Pairs of samples)
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pair/day
Delivery Time :
3-5 days
Packaging Details :
1.plastic bag 2.carton 3.As per customer's requirement
product type :
3 Pin Circular Connector
current/voltage :
50A 500V Power Connector
Durability :
1500 times plug/unplug
waterproof level :
IP67
Application :
LED display, Electrical equipment
contact material :
copper alloy(gold-plate)
Description

Jnicon 3 Pin Male Female Waterproof Circular Connector 50A LED Lighting IP67

Description of Jnicon 3 Pin Male Female Waterproof Circular Connector

1. 2pin, 3pin, 9pin, 22 pin, 32 pins are available.

2. The max.cable diameter: 16.0 mm.

3. plug/unplug locking style,easy to assemble.

4. stable, compression, anti-explosion and anti-deformation.

5. gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.

6. protection level: IP67

Specifiction of 10A waterproof circular connector

Connecting mode plug/unplug Locking
Protection level IP67
Cable specification Max 10AWG
diameter range Φ6-Φ16
Current rating(A) 50A
Operating voltage(AC.V.rms) 500V
Withstand voltage(AC.V)1min 2500V
Temperature rating -40°C~105°C
Method of connecting cable Solder
Prevent the combustion level UL94-V0
Material
Shell&insulated parts High performance engineering plastics
Contact pin Copper alloy(gold-plated)
Spring Stainless steel

Product detail picture

♦ Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.

♦ It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.

50A 500V M25 3 Pin Waterproof Outdoor Connectors Quick Lock Electrical Connectors

FAQ

Q: How to buy your products?

A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Connector and Contact Gender
* Confirm Assembly style
* Confirm Mating style ( series or parallel)
* Confirm Cable OD size
* Confirm Cable Length and Material.

Q. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.

Q: Do you have a guarantee of your product quality?

A: Yes, we provide warranty for one year.
