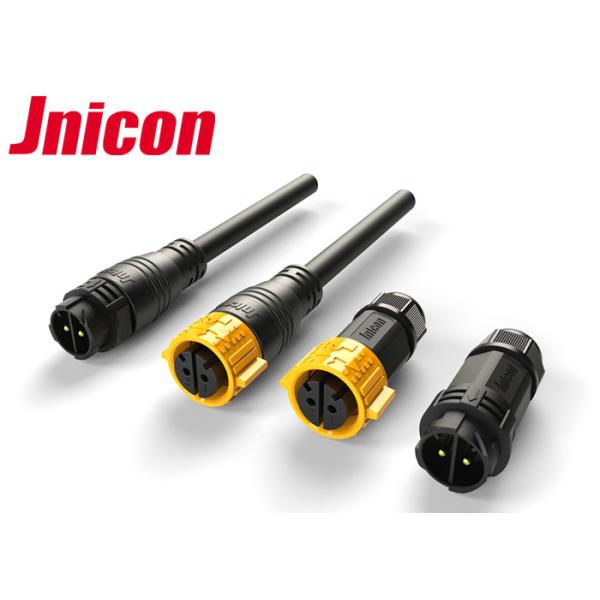

IP67 M25 4 Pin 30A Outdoor Power Connector Quick Release Wire Connector
IP67 M25 4 Pin 30A Outdoor Power Connector Quick Release Wire Connector
Specifications
Brand Name :
Jnicon
Model Number :
M25
Certification :
CE,TUV,UL,RoHS
Place of Origin :
China
MOQ :
100 (10 Pairs of samples)
Price :
Negotiable
Payment Terms :
T/T,Paypal,L/C,Western Union
Supply Ability :
10000/days
Delivery Time :
3-6 working days
Packaging Details :
High Quality export carton
Protection level :
IP67 Waterproof
Assembly Wire :
Soldering
Pin :
4pin Power Cable Connectors
Connection Way :
Push locking
Current Rating(A) :
30A
Operating Voltage :
600V
Description

Jnicon 4Pin 20A Male Female Plug Waterproof M25 Circular Power Connectors

Description:

  • Waterproof cable connector ip67
  • Cable assembly supported
  • industrial Electrical Plug
  • Any quantity is welcome
  • 5Pin male plug female plug
  • TUV,UL,CUL,CE approval
  • Panl mount connectors: for PCB, soldering
  • circular outdoor power cable connectors

M25 waterproof round electrical connectors is the perfect solution to make your own waterproof connection cables easily. soldering is required and installation just takes a few minutes.

Operation Parameters
Voltage Rating 600VAC max
Current Rating 30A max
Min Wire Size OD 6.5mm ~ 10mm
Max Wire Size OD 10.5mm ~ 18mm
Max.Cable Cross Section Area 0.5mm2 ~ 6.0mm2

Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone


Once assembled, the M25 waterproof ac power plug is easy to plug and play while keeping the elements and water out of splices and junctions. To disconnect, just unscrew the main body and pull apart the two ends.The M25 Waterproof conector has multiple waterproofing levels, consisting of o-rings, waterproof sealant, and flexible end seals designed to tighten and close when screwed together.

IP67 M25 4 Pin 30A Outdoor Power Connector Quick Release Wire Connector

This M25 circular power connector has a waterproof rating of IP67. To assemble the M25 ip67 waterproof connector,only a Screwdriver is required to attach the two wires inside each main body. Once each side is connected, the wiring is fully protected from the elements.

If soldering version needed, its also avialble.

IP67 M25 4 Pin 30A Outdoor Power Connector Quick Release Wire Connector
