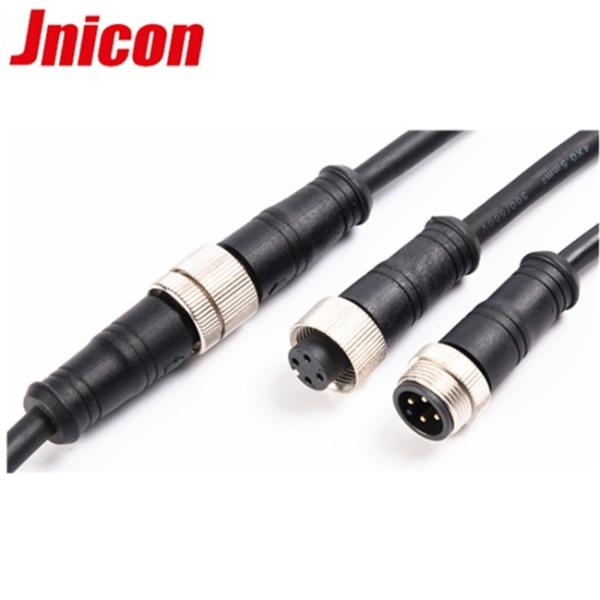

Underground Waterproof Electrical Connectors IP68 With 10A Male Female
Underground Waterproof Electrical Connectors IP68 With 10A Male Female
Specifications
Brand Name :
Jnicon
Model Number :
M16
Certification :
UL,TUV,CE,ROHS,CQC
Place of Origin :
China
MOQ :
100 (10 Pairs of samples)
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5 working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Gender :
Male female with cable
Pole No. :
2, 3 and 4 poles avaiable
Connector type :
Overmolded cable connector
Weterproof level :
IP68
Rated current :
10Amps
Warranty :
5 years
Description

IP68 Underground Electrical LED Cable Connectors With 10A Male Female

Main Features

  • Gold-plated contact, high performance of corrosion resistance and electrical
  • Conductivity effectively deal with temperature rise.
  • Screw locking connector,easy operation and installation
  • Dustproof cover design under off-working condition
  • Rated current is 10Amps
  • Protection level: IP68

Technical Data

Connector type : overmolded cable connector
Connector material: metal screw
Waterproof level: IP68
Cable specification: 20AWG-18AWG
Cable diameter range: 4.5mm-11mm
Rated current (A): 10A
Operating voltage (AC.V.rms): 500V

Cable length could be customized according to your requirements, multipins avaialble such as 2 pin,3pin and 4 pin, metal screw more durable and anti-corrosion, M16 B type is a very economic model for wall washer lights, wall washer bar.

Material

Shell and insulated parts: High performance engineering plastics
Contact pin: Copper alloy(gold-plated)
Spring: Stainless steel
Sealing: Silica gel

Better quality connectors could be used for a long time and no need to replace always, UL approved material and connectors to ensure your applications long working time and more stable, 5 years warranty is provided.

Popular Applications

  • Stage equipment
  • The smart grid
  • LED lighting
  • LED display
  • Medical equipment
  • Battery charing
  • Automation
  • Solar energy equipment
  • Ship equipment
  • Agriculture
