T Shape Waterproof Data Connector Outdoor 3 Pin IP67 Three - Way Push Locking
T Shape Waterproof Data Connector Outdoor 3 Pin IP67 Three - Way Push Locking
Specifications
Brand Name :
Jnicon
Model Number :
Waterproof Data Connector
Certification :
TUV, UL, 3C, CE, ROHS, ISO90001
Place of Origin :
China
MOQ :
100 (10 Pairs of samples)
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pair/day
Delivery Time :
3-5 days
Packaging Details :
1.plastic bag 2.carton 3.As per customer's requirement
product name :
3 Pin T shape Waterproof Data Connector Outdoor
current rating :
20A
cable gauge :
16-12 AWG
material of copper alloy :
copper alloy( gold plate)
operation temperature :
-40℃~105℃
connection mode :
push locking
Description

3 Pin T Shape Waterproof Data Connector Outdoor IP67 Three-way Push Locking

More details of 3 Pin T Shape Waterproof Data Connector:

• The waterproof rating is IP67(plug locking).
• the current/ voltage of waterproof data connector are 20A/300V. the withstanding voltage is 1500V AC.
• 3 pin three branch waterproof data connector.
• High current application safety and stable wire.
• 2-4 pins are available and for varies industrial demands.
• Push locking style,easy to assemble.

The specifiction of 3 pin three branch waterproof data connector:

SPECIFICATION
Designation 3 pin T shape waterproof date connector three branch
Model No. 53-100311-01
Item Specification
1. Electrical characteristics
1A Contact Resistance 10mΩ max.
1B Insulation Resistance 10MΩ min.
1C Withstand Voltage 1500V AC There shall be no breakdown.
1D Rating 20A 300V
2. Mechanical
2A Mating/Unmating force Mating & Unmating Force: 10~30N Test data:22N,23N,25N,26N,23N
2B Life test Mating & Unmating 500 cycles
3. Material
3A Contact Plating 1u" gold plating
3B Contact material Brass (C3604)
3C Housing material PA66
4. Environmental
4A Flammability UL 94V-0
4B Operation temperature range: -30℃~+80℃
4C Preservative temperature range: -40℃~+85℃


More Detail:

The copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.
Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.

3 pin waterproof data connectors could be widely used in indoor & outdoor led lighting, LED screen, audio visual equipment, industrial and testing equipment, electricl power connection, landscape lights,underwater lights,equipments etc.

gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.

Product detail picture

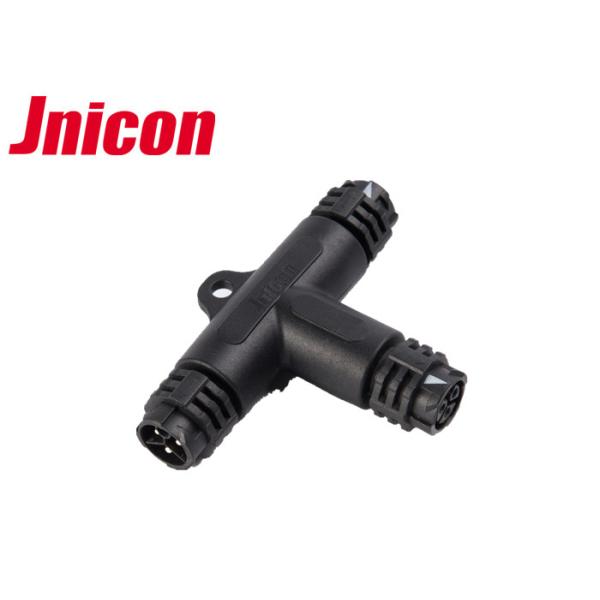

Type 1: push locking
T Shape Waterproof Data Connector Outdoor 3 Pin IP67 Three - Way Push Locking

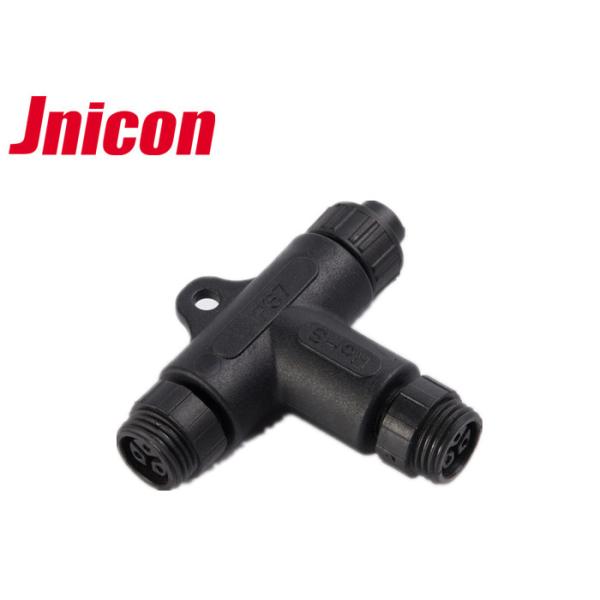

Type 2: screw locking
T Shape Waterproof Data Connector Outdoor 3 Pin IP67 Three - Way Push Locking
