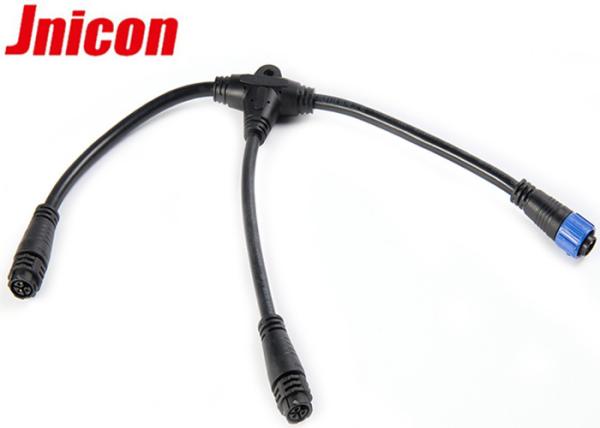

T Shaped Waterproof Power Cable Connectors Outdoor With 2 Female And 1 Male
T Shaped Waterproof Power Cable Connectors Outdoor With 2 Female And 1 Male
Specifications
Brand Name :
Jnicon
Model Number :
M19
Certification :
CE,TUV,UL,RoHS
Place of Origin :
China
MOQ :
100 (10 Pairs of samples)
Price :
Negotiable
Payment Terms :
T/T,Paypal,L/C,Western Union
Supply Ability :
10000/days
Delivery Time :
3 days
Packaging Details :
High Quality export carton
Product name :
T shaped waterproof connector
Rated current :
20A max
Cable spec :
20AWG-12AWG
Cable diameter :
12mm max
Core No. :
2,3,4 and 5 cores
Waterproof level :
IP67
Description

Outdoor T Shaped Waterproof Power Cable Connector With 2 Female And 1 Male

Details:

M19 3pin T type waterproof connector is a popupar power extension cable, which could be widely used for led ligthing, automatic, industrial equipment etc, main features as below :

1. Multicore are optional, such as 2 pin,3pin,4 pin and 5 pin.

2. Connection method: soldering(welding)

3. Connector type: cable to cable

4. Certification: UL, TUV, RoHs, CQC,CE

5. Max current: 20A/300V

6. IP67 protection level

7. Gender: male and female

8. Connection mode: push pull locking

Technical Specification:

Waterproof level: IP67
Cable specification: 20AWG-12AWG
Cable diameter range: 4.5mm-12mm
Contact diameter*No. Φ1.0-Φ2.4
Rated current (A): 20A
Operating voltage (AC.V.rms): 500V
Withstand voltage (AC.V)1min: 1500V

Application & benefits of waterproof power connector:

1. Great suitable for Outdoor LED light, LED equipment, grating, external wiring, CCTV, factory automation control, wireless bridge and other places need waterproof power extension use.

2. Moisture-proof and Dust-proof waterproof connector, never leave your precious wires exposed and have a good protection on them.

3. Easy connection, convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.

Contact resistance: <5mΩ
Insulation resistance: >500MΩ
Durability: ≥3000 mating and unmating cycles
Temperature rating: -40°C~105°C
Connecting mode: Solder type/screw terminal
Flame-resistance: UL94-V0

Popular Applications

Stage equipment The smart grid LED lighting
Medical equipment Battery Automation
Solar energy equipment Ship equipment Agriculture
Electric power equipment Vehicle equipment Ebike/motorcycle
Communications equipment Heavy machinery Transportation

T Shaped Waterproof Power Cable Connectors Outdoor With 2 Female And 1 Male
