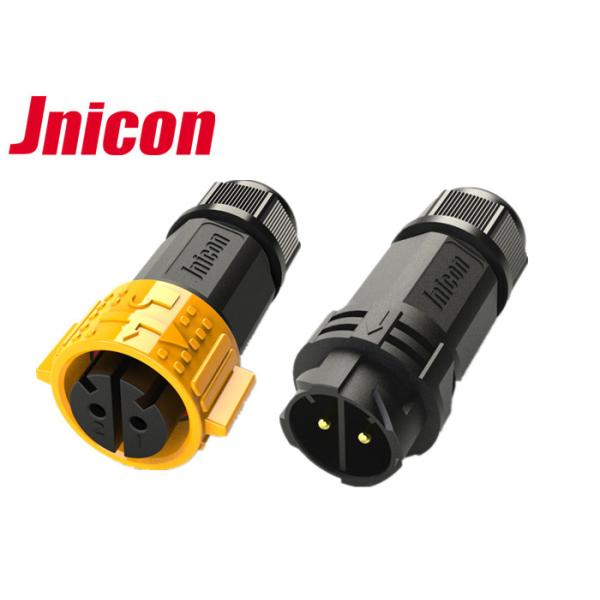

600V 20A Waterproof Male Female Connector , Industrial Power Connectors
600V 20A Waterproof Male Female Connector , Industrial Power Connectors
Specifications
Connection Way :
Push locking
Brand Name :
Jnicon
Model Number :
M25
Certification :
CE,TUV,UL,RoHS
Place of Origin :
China
MOQ :
100 (10 Pairs of samples)
Price :
Negotiable
Payment Terms :
T/T,Paypal,L/C,Western Union
Supply Ability :
10000/days
Delivery Time :
3-6 working days
Packaging Details :
High Quality export carton
Current Rating(A) :
60A max.
Color :
Orange,Black
Contact Material :
Gold-Plated
Assembly Wire :
Soldering or Screw fitting
Operating Voltage :
600V
Description

Inline Industrial 2Pin Waterproof Male Female Connector,20A Power Connector Waterproof

Description of 2Pin Circular waterproof cable plug

M25 waterproof power connector is the perfect solution to make your own waterproof connection cables easily. Thanks to its screw based terminal, soldering is not required and installation just takes a few minutes.

Electrical Parameters

Number of Poles 3
Current Rating 50A max
Voltage Rating 600VAC max
Durability Voltage 2500VAC @ 60 s.

Once assembled, the M25 Outdoor Waterproof Conector is easy to plug and play while keeping the elements and water out of splices and junctions. To disconnect, just unscrew the main body and pull apart the two ends.The M25 Waterproof conector has multiple waterproofing levels, consisting of o-rings, waterproof sealant, and flexible end seals designed to tighten and close awhen screwed together.

Operation Parameters

Voltage Rating 600VAC max
Current Rating 50A max
Min Wire Size OD 6.5mm ~ 10mm
Max Wire Size OD 10.5mm ~ 18mm
Max.Cable Cross Section Area 0.5mm2 ~ 6.0mm2

This M25 waterproof power Connector has a waterproof rating of IP67. To assemble the M25 Outdoor Waterproof Connector,only a Screwdriver is required to attach the two wires inside each main body. Once each side is connected, the wiring is fully protected from the elements.

Main Feature

  • IP67 rating, suitable for outdoor usin
  • Push locking Full waterproof design, much more convenient and easier to operate
  • High quality with 12 months waranty
  • Panel mount socket,bultt joint available
  • Pin quantity from 2 to 22
  • cable in any length and process terminals if required
  • Customer's drawings and designs are welcome, as we have our own professional R&D team to provide you various solutions


Technical Parameters

Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone

Drawing:

600V 20A Waterproof Male Female Connector , Industrial Power Connectors

600V 20A Waterproof Male Female Connector , Industrial Power Connectors
