336hp Horsepower HOWO Tipper Dump Truck 6x4 Drive Wheel
336hp Horsepower HOWO Tipper Dump Truck 6x4 Drive Wheel
336hp Horsepower HOWO Tipper Dump Truck 6x4 Drive Wheel
336hp Horsepower HOWO Tipper Dump Truck 6x4 Drive Wheel
336hp Horsepower HOWO Tipper Dump Truck 6x4 Drive Wheel
336hp Horsepower HOWO Tipper Dump Truck 6x4 Drive Wheel
336hp Horsepower HOWO Tipper Dump Truck 6x4 Drive Wheel
336hp Horsepower HOWO Tipper Dump Truck 6x4 Drive Wheel
336hp Horsepower HOWO Tipper Dump Truck 6x4 Drive Wheel
336hp Horsepower HOWO Tipper Dump Truck 6x4 Drive Wheel
336hp Horsepower HOWO Tipper Dump Truck 6x4 Drive Wheel
336hp Horsepower HOWO Tipper Dump Truck 6x4 Drive Wheel
Specifications
Brand Name :
Howo
Model Number :
jnhtc
Certification :
ISO CCC
Place of Origin :
Shandong, China
MOQ :
1 UNIT
Price :
USD23100-25410
Payment Terms :
L/C, T/T
Supply Ability :
50 units per week
Delivery Time :
45 Work days
Packaging Details :
nude
Horsepower :
336hp
Engine Capacity :
> 8L
Cargo Tank length :
5.3-6.2M
Drive Wheel :
6x4
Capacity (Load) :
21 - 30T
Fuel Tank Capacity :
300-400L
Description

HOWO Dump Truck After The First Four Eight Muck Year-round Export Of Tipper Dump Trucks

Model
ZZ3257V3847B1
Driver's Cab
HW76 extended cab, with one sleeper berth ,with air conditioner, air seat for driver. MP3
Engine
Model: WP12.400E201, Euro II emission standard, 4 stroke injection diesel engine, 6
cylinder in-line with water cooling, turbo-charging & inter cooling.
Maximum output: 400PS (294kW) at 2100 rpm
Maximum torque: 2060Nm at 1200-1500rpm
Bore: 126mm Stroke: 155mm
Displacement: 11.596L
Brand: Weichai
Steering
Model: BOSCH
Hydraulic steering with power assistance
Left hand driving
Clutch
Φ430 Pull-type diaphragm spring clutch
Transmission
Model: HW19710, 10 forward and 2 reverse
Manual type
With transmission power take-off HW70
Max Torque: 1900N·M
Front Axle
Model: HF9
Drum brake system
Rated loading capacity :9000kgs
Rear Axle
Model: MCP16ZG
Capacity: 16000kgs
Drum braking steering axle,self-adjusting arm
Speed ratio:
Wheelbase
3800+1350 mm
Brake System
Type :Wabco braking system
ABS 4S/4M
Engine exhaust valve brake
Oil Tanker
300L aluminum alloy fuel tank
Tires
Types: 12.00R20 radial tire; 18PR
10 pcs, plus one pc spare tire
Bumper
Metal bumper

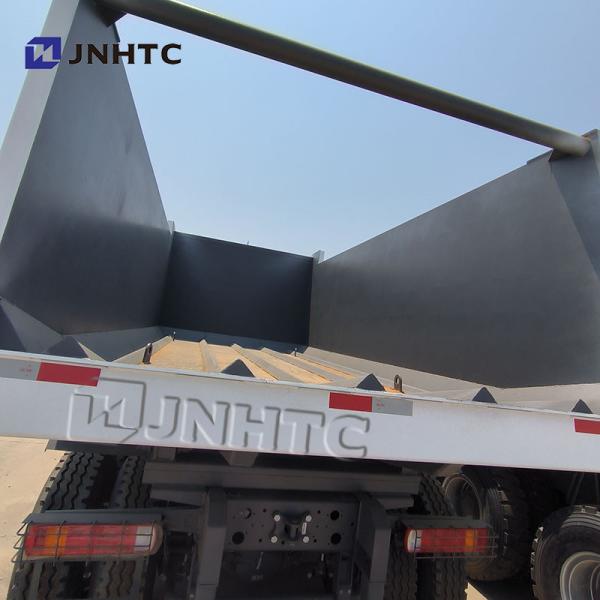

Dump body
5600*2300*1500mm, 8mm for bottom and 6 mm for side plate, rectangular box, Chinese brand front lifting cylinder, with integral
fender, headlight cover.
Dimensions in mm
Front wheel track (mm): 2022
Rear wheel track (mm):1830
Overhang(front/rear) (mm):1500/1870
Overall Dimension (mm): 8650*2580*3450
Weight in kg
Dead weight (kg):13500
Gross vehicle weight (kg):25000

A dump truck, also known as a tipper truck, is a vehicle designed for transporting bulk materials such as sand, gravel, demolition waste, and more. These trucks are essential in construction, mining, and other industries where large quantities of loose material need to be moved efficiently.

Key Components and Features

  1. Chassis: The truck's main structural framework that supports the engine, cab, and dump body.
  2. Engine: Typically a diesel engine that provides the necessary power for the truck.
  3. Cab: The driver’s compartment where controls and instruments are located.
  4. Dump Body: The open-box bed that holds and dumps materials.
  5. Hydraulic Ram: Lifts the front of the dump body to unload materials by tipping it backward.
  6. Tailgate: The rear gate of the dump body that opens to allow materials to be discharged.

Types of Dump Trucks

  1. Standard Dump Truck: Built on a truck chassis with a mounted dump body. It uses a hydraulic ram to lift the front of the dump body.
  2. Articulated Dump Truck: Has a hinge between the cab and the dump body, making it suitable for rough terrain.
  3. Transfer Dump Truck: Pulls a separate trailer with a movable cargo container, increasing load capacity.
  4. Side Dump Truck: Tilts its dump body to the side to unload materials, which is useful for quickly spreading materials.
  5. Superdump Truck: Features additional axles to carry more weight and increase payload capacity.
  6. Semi Trailer End Dump Truck: A tractor-trailer combination where the trailer contains a hydraulic hoist for dumping.
