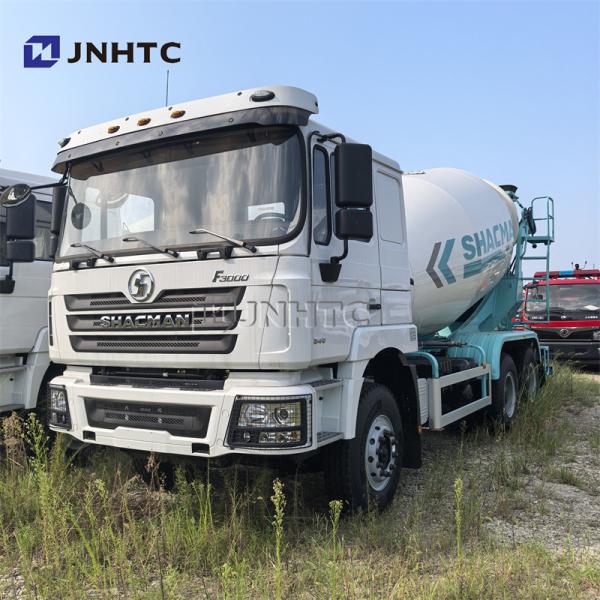

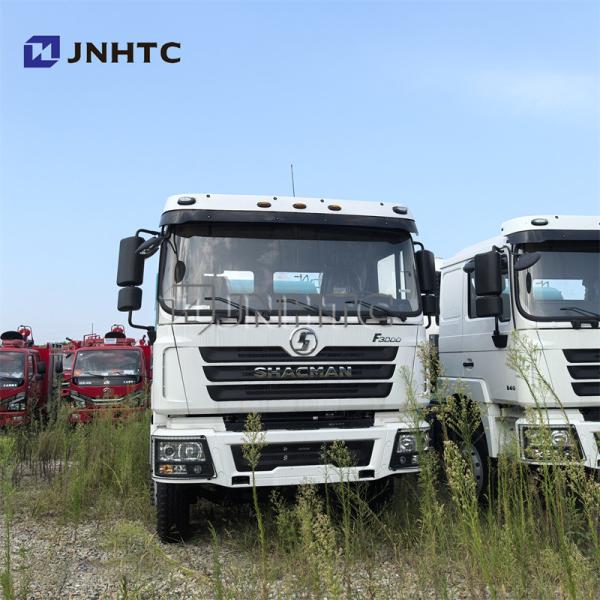

New Shacman F3000 10m3 15 Cubic Meters Self Loading Concrete Mixer Truck
New Shacman F3000 10m3 15 Cubic Meters Self Loading Concrete Mixer Truck
New Shacman F3000 10m3 15 Cubic Meters Self Loading Concrete Mixer Truck
New Shacman F3000 10m3 15 Cubic Meters Self Loading Concrete Mixer Truck
New Shacman F3000 10m3 15 Cubic Meters Self Loading Concrete Mixer Truck
New Shacman F3000 10m3 15 Cubic Meters Self Loading Concrete Mixer Truck
New Shacman F3000 10m3 15 Cubic Meters Self Loading Concrete Mixer Truck
New Shacman F3000 10m3 15 Cubic Meters Self Loading Concrete Mixer Truck
New Shacman F3000 10m3 15 Cubic Meters Self Loading Concrete Mixer Truck
New Shacman F3000 10m3 15 Cubic Meters Self Loading Concrete Mixer Truck
New Shacman F3000 10m3 15 Cubic Meters Self Loading Concrete Mixer Truck
New Shacman F3000 10m3 15 Cubic Meters Self Loading Concrete Mixer Truck
Specifications
Brand Name :
Shacman
Model Number :
jnhtc
Certification :
ISO CCC
Place of Origin :
China
MOQ :
1 unit
Price :
$46500 unit
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 unit per month
Delivery Time :
30days
Packaging Details :
No nude
Drive wheel :
6x4 drive model
Fuel type :
Diesel
Condition :
New
Gross vehicle weight :
25000
Horsepower :
351 - 450hp
Emission standard :
Euro 2
Port :
Qingdao/Tianjin
Color :
Customer's Request
Description

New Shacman F3000 10m3 15 Cubic Meters Self-loading Concrete Mixer Truck

1. products description

Model
SX5255GJBDR384
Make
SHACMAN
Dimensions(mm)
10,600X 2,499 X 3,450
Engine
WP10.340E22+PTO, Weichai engine, Euro 2
HorsePower
340HP
Transmission
10JSD180, 10 forward and 2 reverse, FAST brand
Driving Cab
SHACMAN F3000, flat roof cab with single sleeper,Air main seat, four-point air suspension cab, electronically controlled automatic
constant temperature Air Conditioner, electric window shaker, metal bumper, with USB, can play radio with MP3 format
Chassis Frame
8+5 mm, reinforced double layer frame
Wheelbase (mm)
4375+1400
Front Axle
7.5 T MAN
Rear Axle
13T MAN , single reduction 5.262
Tyre
12.00R20
Suspension
Multi Leaf Springs & 2 Main Piece U-bolts
Fuel Tank Capacity (L)
400L, Aluminium tank
Braking
Drum,Dual-circuit compressed air brake,Power spring brake acting on front & rear wheel
Color
Optional


2. Products show

Mixer truck is a kind of vehicle specially used for transporting and mixing concrete, also known as concrete

mixing truck. It plays an important role in fields such as construction sites, road construction and infrastructure

construction.
Vehicle structure: The mixer truck is usually composed of chassis, mixing tank, mixing device, feeding system,

discharging system and control system. The chassis is generally used for heavy trucks or special chassis

to ensure the carrying capacity and stability of the vehicle.
Mixing tank: This is the core part of the mixer truck for loading and mixing concrete. The inside of the tank

is equipped with mixing blades or mixing shafts, and the concrete raw materials are fully mixed by rotating

mixing.
Stirring device: The stirring device is usually driven by a motor or hydraulic motor, which drives the stirring

blade or the stirring shaft to rotate. Mixing speed and time can be adjusted according to the type and

requirements of concrete.
Feed system: The feed system includes components such as the feed hopper and conveyor belt to transport

the concrete raw material into the mixing tank. The hopper is usually removable for easy material loading.
Discharge system: The discharge system generally includes discharge doors and discharge chutes, etc.,

which can unload the mixed concrete to the construction site. The opening and closing of the discharge

door can be operated by the control system.

New Shacman F3000 10m3 15 Cubic Meters Self Loading Concrete Mixer TruckNew Shacman F3000 10m3 15 Cubic Meters Self Loading Concrete Mixer TruckNew Shacman F3000 10m3 15 Cubic Meters Self Loading Concrete Mixer TruckNew Shacman F3000 10m3 15 Cubic Meters Self Loading Concrete Mixer Truck

3. Customer visit

New Shacman F3000 10m3 15 Cubic Meters Self Loading Concrete Mixer Truck

4. Company Profile

New Shacman F3000 10m3 15 Cubic Meters Self Loading Concrete Mixer Truck

New Shacman F3000 10m3 15 Cubic Meters Self Loading Concrete Mixer Truck
