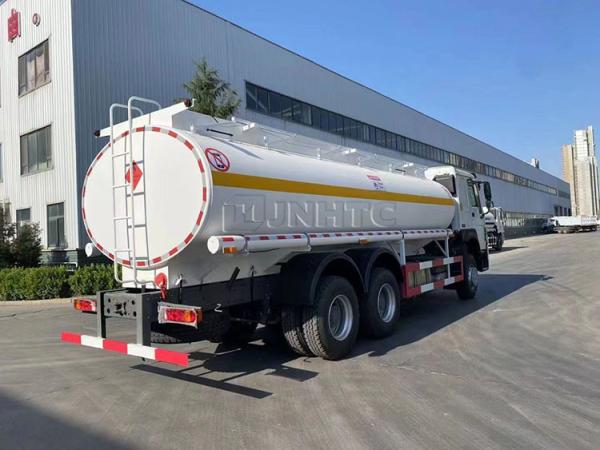

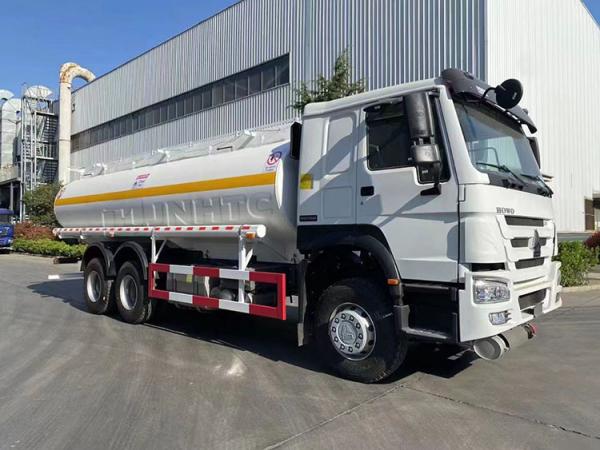

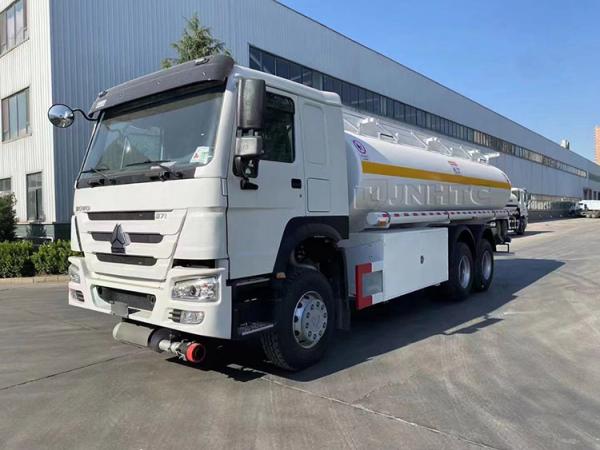

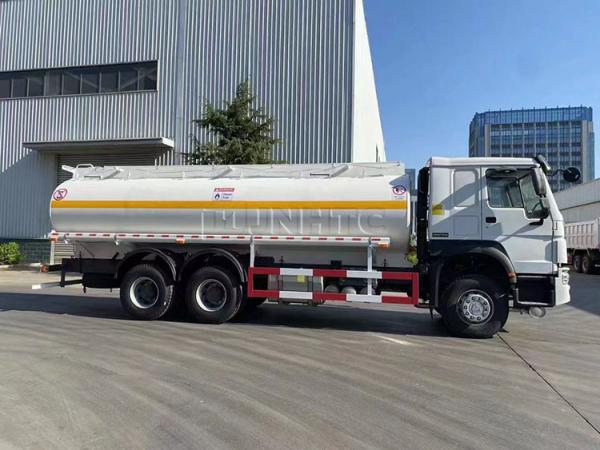

6x4 20000L Sinotruk Howo Tanker Truck 371hp LHD Driving
6x4 20000L Sinotruk Howo Tanker Truck 371hp LHD Driving
6x4 20000L Sinotruk Howo Tanker Truck 371hp LHD Driving
6x4 20000L Sinotruk Howo Tanker Truck 371hp LHD Driving
6x4 20000L Sinotruk Howo Tanker Truck 371hp LHD Driving
6x4 20000L Sinotruk Howo Tanker Truck 371hp LHD Driving
6x4 20000L Sinotruk Howo Tanker Truck 371hp LHD Driving
6x4 20000L Sinotruk Howo Tanker Truck 371hp LHD Driving
6x4 20000L Sinotruk Howo Tanker Truck 371hp LHD Driving
6x4 20000L Sinotruk Howo Tanker Truck 371hp LHD Driving
6x4 20000L Sinotruk Howo Tanker Truck 371hp LHD Driving
6x4 20000L Sinotruk Howo Tanker Truck 371hp LHD Driving
Specifications
Brand Name :
howo
Model Number :
ZZ1257S4641W
Certification :
CCC,ISO
Place of Origin :
Jinan
MOQ :
1 Unit
Price :
USD 40000-50000/Unit
Payment Terms :
L/C, T/T
Supply Ability :
300 Units Per Month
Delivery Time :
30 Working Days
Packaging Details :
Nude,wax before shipping.
Name :
Howo 6x4 fuel tanker truck
Cab :
HW76 Cab,with one sleeper,with A/C
Engine :
WD615.47 371hp
Front axle :
HF9 9t
Drive axle :
HC16*2 16t*2
Tanker :
20000L
Description

Sinotruk Howo 371hp 6x4 20000L Fuel Tanker Truck

Product Name
SINOTRUK HOWO 6X4 Fuel Tanker Truck
Chassis Model
ZZ1267N4641W
Driving Type
LHD (RHD is optional)
Cabin
HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn,air conditioner , with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.
Engine
Make: SINOTRUK
Diesel 4-stroke direct injection diesel engine
Engine model: WD615.69, Euro 2, 336 HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 9.726 L
Transmission
HW19710, 10F & 2R, with PTO
Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering
ZF power steering, model ZF8118, hydraulic steering with power assistance
Front Axle
HF9,1x9000 KGS
Steering with a doubleT-cross section beam
Rear Axle
HC16, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.
Ratio:5.73
Propeller Shaft
Double universal joint propeller shaft with gear-shaped coupling flange
Chassis
Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer
Brake
Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Electrics
Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres
295/80R22.5, tubeless tyres with one spare tyre
Fuel Tank
300L
Mixer Body
Tank Body: 20 Cubic Meters
Compartments:2
With refueling machine
Overall Dimension
9000*2550*3360 mm
