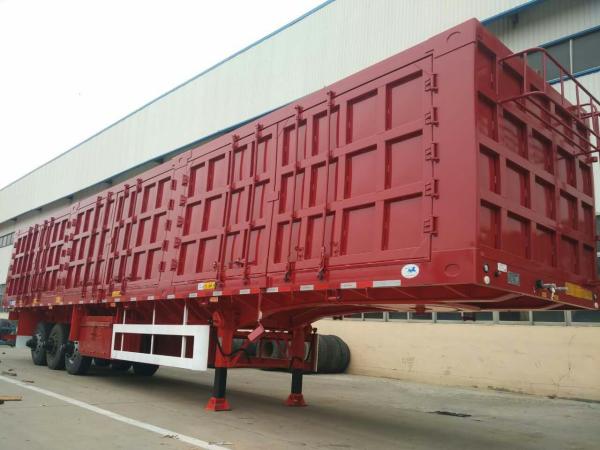

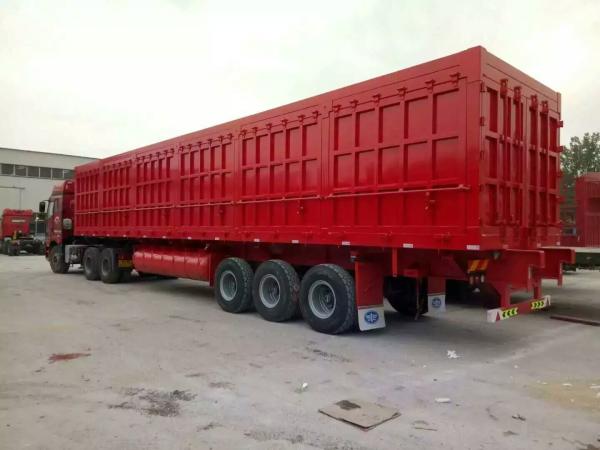

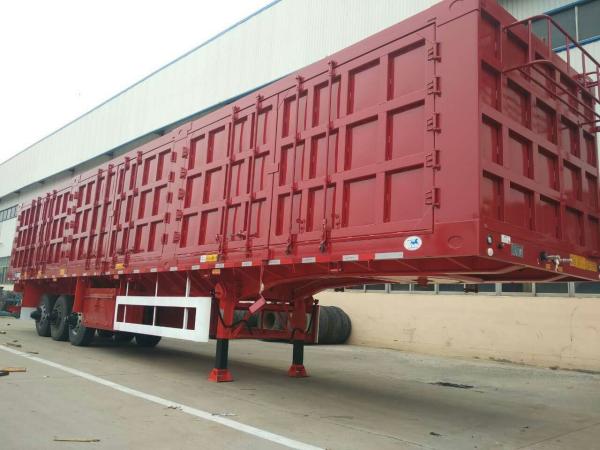

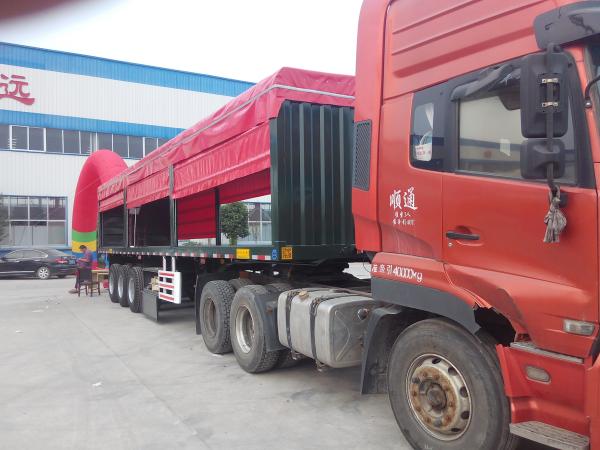

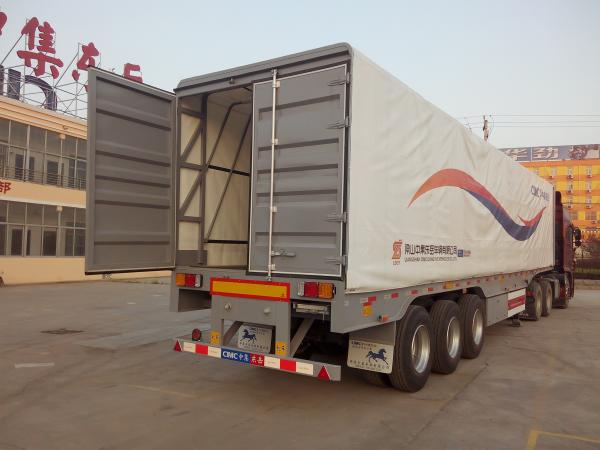

Steel Box Van Heavy Duty Semi Trailers 40 Ton Max Payload 12000*2500*3600mm
Steel Box Van Heavy Duty Semi Trailers 40 Ton Max Payload 12000*2500*3600mm
Steel Box Van Heavy Duty Semi Trailers 40 Ton Max Payload 12000*2500*3600mm
Steel Box Van Heavy Duty Semi Trailers 40 Ton Max Payload 12000*2500*3600mm
Steel Box Van Heavy Duty Semi Trailers 40 Ton Max Payload 12000*2500*3600mm
Steel Box Van Heavy Duty Semi Trailers 40 Ton Max Payload 12000*2500*3600mm
Steel Box Van Heavy Duty Semi Trailers 40 Ton Max Payload 12000*2500*3600mm
Steel Box Van Heavy Duty Semi Trailers 40 Ton Max Payload 12000*2500*3600mm
Steel Box Van Heavy Duty Semi Trailers 40 Ton Max Payload 12000*2500*3600mm
Steel Box Van Heavy Duty Semi Trailers 40 Ton Max Payload 12000*2500*3600mm
Steel Box Van Heavy Duty Semi Trailers 40 Ton Max Payload 12000*2500*3600mm
Steel Box Van Heavy Duty Semi Trailers 40 Ton Max Payload 12000*2500*3600mm
Specifications
Brand Name :
SINOTRUK Heavy Duty Semi Trailers
Model Number :
HOWO
Certification :
CCC BV WMI ISO9001
Place of Origin :
Shandong China
MOQ :
1 unit
Payment Terms :
L/C, T/T
Supply Ability :
100 units per week
Delivery Time :
20 days
Packaging Details :
naked utility cargo box trailer
Size :
12000*2500*3600mm
painting and logo: :
can customize according to your requirment
Inside dimension: :
11850*2350*2000mm
cover :
With top cover
Axle number :
3
Axle weight load :
13T
Color :
Optional
Max Payload :
40T
Description

Steel Box Van Heavy Duty Semi Trailers 40 Ton Max Payload 12000*2500*3600mm

40ton Max Payload 3 axles 40 ton payload Steel semi van box trailer ,

Quick Details of Heavy Duty Semi Trailers

Use: Truck Trailer Type: Semi-Trailer,semi trailer Material: Steel
Certification: CCC BV WMI ISO9001 Size: 12000*2500*3600mm OEM No.: utility cargo box trailer
Max Payload: 40ton Place of Origin: Shandong China (Mainland) Brand Name: C
Model Number: utility cargo box trailer color: as client's requriment tire: to be choosed by customer
painting and logo: can customize according to your requirment landing gear: JOST or FUWA trailer loading capacity: can customize according to your requirment
Inside dimension: 11850*2350*2000mm
Packaging Detail: naked utility cargo box trailer
Delivery Detail: 15days utility cargo box trailer

3 axles van semi trailers,utility cargo box trailer

Specification
Dimensions(L*W*H) 12000*2500*3600mm
Inside Dimensions 11850*2350*2000mm
Board thick 1.5mm
Platform plate 3mm (metal deck)
Main Beam

The height of the beam is 500 mm, upper plate is14mm,

down plate is 16mm,middle plate is 8mm.
Side beam 14 # steel channel
Cross beam 10# steel channel
Loading capacity 40000kg
Top cover With top cover
Double Doors 7
Axle number 3
Axle weight load 13T
Axle brand FUWA Brand
King pin 3.5"(90#)
Support legs 28Ton standard
Suspension Mechanical Suspension
Steel spring number 10/10/10
Steel spring thickness 1.3mm
Tire 12R22.5 12pcs
Wheel base 6880+1310+1310
Spare tire carriers 2 piece
Brake system Dual Line braking system
Brake Air Chamber Two double and two single chamber
Tools box 2
Voltage 24V
Receptacle 7 ways (7 wire harness)
Side marker lamp LED type
Shipping terms Naked
painting According to customer’s requirement

Steel Box Van Heavy Duty Semi Trailers 40 Ton Max Payload 12000*2500*3600mmSteel Box Van Heavy Duty Semi Trailers 40 Ton Max Payload 12000*2500*3600mm

Mr George Cao (International Marketing depart)
Cell &Whatsapp&Wechat: +86 15265319718
CHINA NATIONAL HEAVY DUTY TRUCK GROUP
JINAN HEAVY TRUCK IMPORT&EXPORT CO.,LTD
