Specifications
Brand Name :
Sinotruk Heavy Duty Dump Truck
Model Number :
howo7 Heavy Duty Dump Truck
Certification :
Iso ccc
Place of Origin :
china
MOQ :
1unit
Price :
35000-36000usd
Payment Terms :
L/C, T/T
Supply Ability :
200units/month
Delivery Time :
30days
Packaging Details :
nude
condition :
New
brand :
Howo7
color :
yellow
drive :
right hand drive
material :
Q345
lifting :
front
tire :
10+1spare
Product name :
Heavy Duty Dump Truck
Description

Low Fuel Consumption Tipper Dump Truck For Mining Industry / Construction

Tipper Dump Truck Description:

A Tipper Dump Truck is a truck used to convey loose materials like sands, pebbles, soils, building materials, coals, ores, crops, farm products, etc. A dump truck is usually installed with a hydraulic motivated open-box bed hinged at the rear. The front of this open-box can be lifted up so that the materials are discharged on the ground behind the truck.

Tipper Dump Truck Specification:

Low Fuel Consumption Tipper Dump Truck For Mining Industry / Construction

Model ZZ3257N3847A
Drive Type 6×4
Engine
WD615.47 , 371HP( Euro II)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 9.726L
Cabin HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance
Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3800+1350(mm)
Overall dimension 8575×2496×3450(mm)
Cargo body 5800×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 12200(Kg)

Our Advantage:

  • competive price, cost-effective
  • with all kinds of truck model, which can fulfil your requirements
  • all kinds of cargo body structure can be designed and produced according to your request,
  • make it have light curb weight , high rigidity , high loading capacity
  • using the high strength steel, make it has a long service life
  • The optimized hydraulic control system helps to avoid wrong operation, it has higher
  • safety and running efficiency.
  • excellant apperance of cabin, safety, reliable
  • quick and efficient spare parts supply bring you more convenient

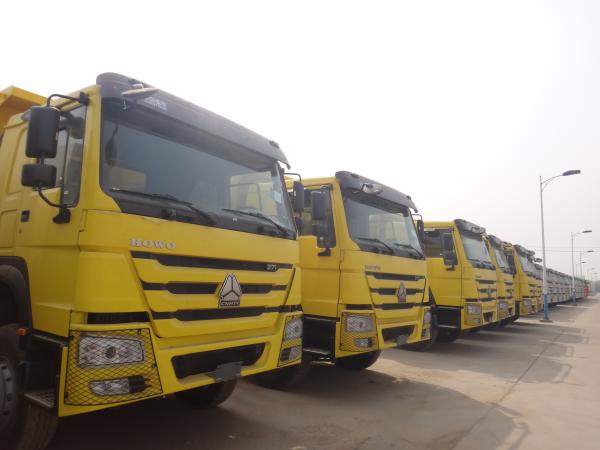

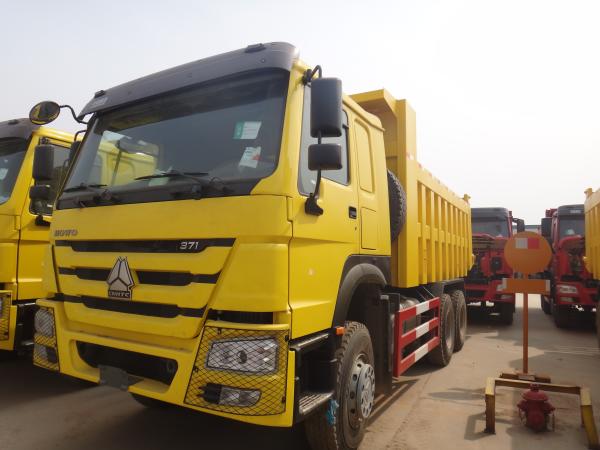

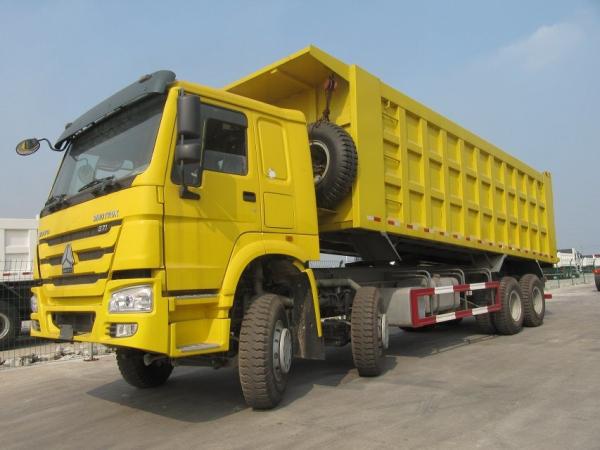

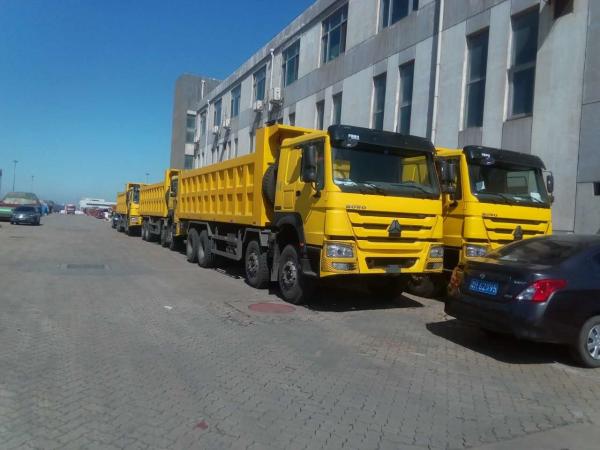

Tipper Dump Truck Details

Yellow 371hp 20M3 RHD Sinotruk Howo 6x4 Dump Truck For 40-50 Tons LoadYellow 371hp 20M3 RHD Sinotruk Howo 6x4 Dump Truck For 40-50 Tons Load

Yellow 371hp 20M3 RHD Sinotruk Howo 6x4 Dump Truck For 40-50 Tons Load
Yellow 371hp 20M3 RHD Sinotruk Howo 6x4 Dump Truck For 40-50 Tons Load
Yellow 371hp 20M3 RHD Sinotruk Howo 6x4 Dump Truck For 40-50 Tons Load
Yellow 371hp 20M3 RHD Sinotruk Howo 6x4 Dump Truck For 40-50 Tons Load​
