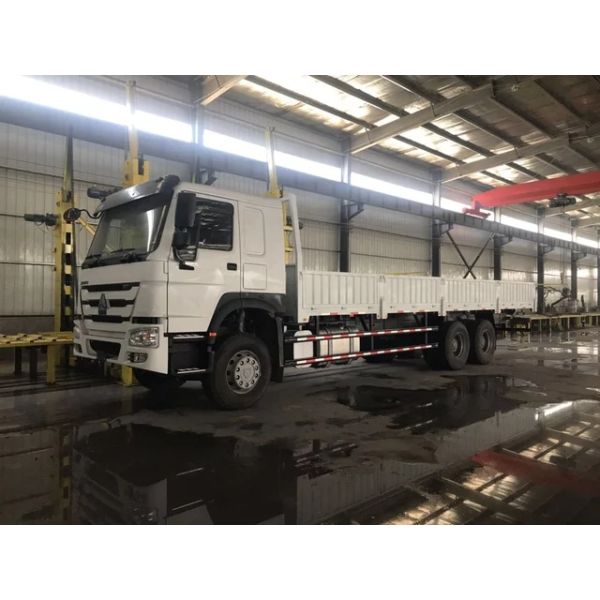

White SINOTRUK HOWO 6X4 Heavy Cargo Truck Euro II Emission Standard
White SINOTRUK HOWO 6X4 Heavy Cargo Truck Euro II Emission Standard
White SINOTRUK HOWO 6X4 Heavy Cargo Truck Euro II Emission Standard
White SINOTRUK HOWO 6X4 Heavy Cargo Truck Euro II Emission Standard
White SINOTRUK HOWO 6X4 Heavy Cargo Truck Euro II Emission Standard
White SINOTRUK HOWO 6X4 Heavy Cargo Truck Euro II Emission Standard
White SINOTRUK HOWO 6X4 Heavy Cargo Truck Euro II Emission Standard
White SINOTRUK HOWO 6X4 Heavy Cargo Truck Euro II Emission Standard
White SINOTRUK HOWO 6X4 Heavy Cargo Truck Euro II Emission Standard
White SINOTRUK HOWO 6X4 Heavy Cargo Truck Euro II Emission Standard
White SINOTRUK HOWO 6X4 Heavy Cargo Truck Euro II Emission Standard
White SINOTRUK HOWO 6X4 Heavy Cargo Truck Euro II Emission Standard
Specifications
Brand Name :
Cargo Truck
Model Number :
Cargo Truck
Certification :
CCC
Place of Origin :
Shandong
MOQ :
1
Price :
$12000-35000
Payment Terms :
T/T, L/C
Supply Ability :
50 units per month
Delivery Time :
5-8 days
Packaging Details :
in nude
Size: :
9120*2496*2958
Capacity (Load): :
21 - 30t
Horsepower: :
351 - 450hp
Gross Vehicle Weight: :
25000
Product name: :
HOWO 6X4 CARGO TRUCK
Engine: :
WD615.47
Wheel & Types: :
Rims: 8.5-20,10 hole-steel Types: 12.00R20
Transmission: :
HW19710
Description

SINOTRUK HOWO 6X4 CARGO TRUCK Best Price Euro II emission standard

Products Description
Engine
Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine
Clutch
SINOTRUK’s 430C diaphragm spring clutch, hydraulically
operating with air assistance
Transmission
Transmission, model HW19710, 10 forward and 2 reverse
Ratio:14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.80; 1.34; 1.00; 13.91/3.18(R)
Propeller Shaft
Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle
New HF7 series, with drum brake system
Steering with double T-cross section beam
Rear Axle
ST16 pressed axle housing, single reduction and differential locks
between axles; with drum brake system.
Ratio: 4.3
Chassis
Frame: High-strength U-profile frame, all cold riveted cross members
and reinforced subframe
Front suspension: semi-elliptic leaf springs with hydraulic telescopic double-action
shock absorbers and stabilizer
Rear suspension: semi-elliptic leaf springs with hydraulic telescopic double-action
shock absorbers and stabilizer
Spare wheel carrier: with one spare wheel
Steering
ZF8098, hydraulic steering with power assistance
Ratio: 22.2-26.2:1
Braking System
Front and rear drum brake, four-circuit protection valve
Service brake: dual circuit compressed air brake
Parking Brake: spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Wheel & Types
Rims: 8.5-20,10 hole-steel
Types: 12.00R20
Driver’s cab
Long cab, all steel forward control, 55° hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds,
VDO electrical control system, laminate windscreen, with casted-in radio aerial, adjustable driver’s seat and rigid
adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air
conditioner, adjustable steering wheel.
Electrical System
Operating voltage:24V, negative grounded
Starter: 24V, 7.5KW
Alternator: 3-phrase, 28V, 1540W
Batteries: 2×12V, 165Ah
Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp
Dimensions in mm
Wheel base (mm)
Front wheel track (mm)
Rear wheel track (mm)
Front overhang (mm)
Rear overhang (mm)
Approach angle(°)
Departure angle(°)
Overall Dimension (mm)
4300+1400
2022/2041
1830
1500
1920
16
23
9120×2496×2958
Weight in kg
Permissible loading capacity (kg)
Dead weight (kg)
Gross vehicle weight (kg)
Front axle loading capacity (kg)
Rear axle loading capacity (kg)
15830
9170
25000
7000
2×9000
Performance
Maximum driving speed (km/h)
Maximum gradeability (%)
Minimum ground clearance (mm)
Minimum turning radius (m)
Fuel consumption (L/100km)
102(reference data)
62
314
10.8
36(reference data)
