20 Ton Sinotruk Howo 8x4 Truck Mounted Crane Straight Boom
20 Ton Sinotruk Howo 8x4 Truck Mounted Crane Straight Boom
20 Ton Sinotruk Howo 8x4 Truck Mounted Crane Straight Boom
20 Ton Sinotruk Howo 8x4 Truck Mounted Crane Straight Boom
20 Ton Sinotruk Howo 8x4 Truck Mounted Crane Straight Boom
20 Ton Sinotruk Howo 8x4 Truck Mounted Crane Straight Boom
20 Ton Sinotruk Howo 8x4 Truck Mounted Crane Straight Boom
20 Ton Sinotruk Howo 8x4 Truck Mounted Crane Straight Boom
20 Ton Sinotruk Howo 8x4 Truck Mounted Crane Straight Boom
20 Ton Sinotruk Howo 8x4 Truck Mounted Crane Straight Boom
Specifications
Brand Name :
XCMG
Model Number :
SQS500-6
Certification :
ISO CCC
Place of Origin :
China
MOQ :
1unit
Price :
$41000 unit
Payment Terms :
L/C, T/T
Supply Ability :
100 unit per month
Delivery Time :
30days
Packaging Details :
No nude
Warranty :
1 Year
Rated loading capacity :
20ton
Max Lifting Moment(T.M) :
50
Feature :
Truck Crane
Application :
Construction
Condition :
New
Color :
Yellow.red
Origin :
100% China
Description

Crane Truck 20Ton

With 5-10% discount!
This truck is available!!
We can deliver on time!!!

1.products description

Model

SQS500-6
Max Lifting Capacity(kg)
20000
Max Lifting Moment(T.M)
50
Power(kw)
60
Max Oil Flow of Hydraulic Systerm(L/min)
120
Max Pressure of Hydraulic Systerm(MPa)
26
Oil Trank capacity(L)
260
Crane weight(kg)
7100
Installation Space(mm)
1300
Rotation Angle(°)
360
Chass
SINOUTRUK HOWO 8*4 CARGO TRUCK
Chass Engine
WD615.47, 371hp
Chass Emission
EUR2
Tire
12.00R20
Front Axle
HF9
Rear Axle
HC16

2.Products show

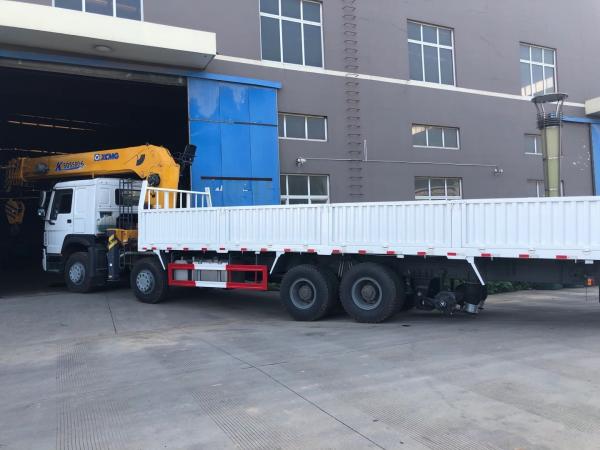

Telescoping Boom Crane

Features & Advantages

1.Single cylinder synchronization guy cable technology make work efficiency more higher than before . 2.Advanced development means make sure that the design is very reliable . 3.The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity . 4.Compact Hinge point design take up smaller space . 5.The work is more safety after fitted with overwind alarm equipment . 6.The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system . 7.Float three-point bridge structure design can lower the accessional stress on the chassis when traveling . 8.Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation . 9.Anti-slewing impulse equipment that make vehicle running safely .

20 Ton Sinotruk Howo 8x4 Truck Mounted Crane Straight Boom

20 Ton Sinotruk Howo 8x4 Truck Mounted Crane Straight Boom20 Ton Sinotruk Howo 8x4 Truck Mounted Crane Straight Boom

20 Ton Sinotruk Howo 8x4 Truck Mounted Crane Straight Boom

3.Delivery

20 Ton Sinotruk Howo 8x4 Truck Mounted Crane Straight Boom

20 Ton Sinotruk Howo 8x4 Truck Mounted Crane Straight Boom

4.Company Profile

20 Ton Sinotruk Howo 8x4 Truck Mounted Crane Straight Boom

20 Ton Sinotruk Howo 8x4 Truck Mounted Crane Straight Boom
