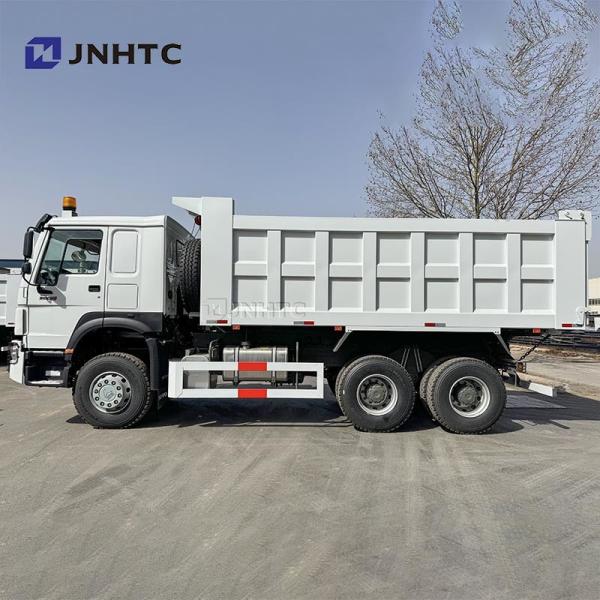

SINOTRUK HOWO Dump Truck 6x4 10 Wheells 380HP Tipper Truck /Heavy Duty Truck Good Price
SINOTRUK HOWO Dump Truck 6x4 10 Wheells 380HP Tipper Truck /Heavy Duty Truck Good Price
SINOTRUK HOWO Dump Truck 6x4 10 Wheells 380HP Tipper Truck /Heavy Duty Truck Good Price
SINOTRUK HOWO Dump Truck 6x4 10 Wheells 380HP Tipper Truck /Heavy Duty Truck Good Price
SINOTRUK HOWO Dump Truck 6x4 10 Wheells 380HP Tipper Truck /Heavy Duty Truck Good Price
SINOTRUK HOWO Dump Truck 6x4 10 Wheells 380HP Tipper Truck /Heavy Duty Truck Good Price
SINOTRUK HOWO Dump Truck 6x4 10 Wheells 380HP Tipper Truck /Heavy Duty Truck Good Price
SINOTRUK HOWO Dump Truck 6x4 10 Wheells 380HP Tipper Truck /Heavy Duty Truck Good Price
SINOTRUK HOWO Dump Truck 6x4 10 Wheells 380HP Tipper Truck /Heavy Duty Truck Good Price
SINOTRUK HOWO Dump Truck 6x4 10 Wheells 380HP Tipper Truck /Heavy Duty Truck Good Price
SINOTRUK HOWO Dump Truck 6x4 10 Wheells 380HP Tipper Truck /Heavy Duty Truck Good Price
SINOTRUK HOWO Dump Truck 6x4 10 Wheells 380HP Tipper Truck /Heavy Duty Truck Good Price
Specifications
Brand Name :
Howo
Model Number :
jnhtc
Certification :
ISO CCC
Place of Origin :
China
MOQ :
1 UNIT
Price :
USD23100-25410
Payment Terms :
L/C, T/T
Supply Ability :
50 units per week
Delivery Time :
45 Work days
Packaging Details :
nude
Horsepower :
380hp
Emission Standard :
Euro 2
Fuel Tank :
400L
Drive Wheel :
6x4
Engine Capacity :
> 8L
Capacity (Load) :
21 - 30T
Description

SINOTRUK HOWO Dump Truck 6x4 10 Wheells 380HP Tipper Truck /Heavy Duty Truck Good Price

Model
ZZ3257V3847B1
Driver's Cab
HW76 extended cab, with one sleeper berth ,with air conditioner, air seat for driver. MP3
Engine
Model: WP12.400E201, Euro II emission standard, 4 stroke injection diesel engine, 6
cylinder in-line with water cooling, turbo-charging & inter cooling.
Maximum output: 400PS (294kW) at 2100 rpm
Maximum torque: 2060Nm at 1200-1500rpm
Bore: 126mm Stroke: 155mm
Displacement: 11.596L
Brand: Weichai
Steering
Model: BOSCH
Hydraulic steering with power assistance
Left hand driving
Clutch
Φ430 Pull-type diaphragm spring clutch
Transmission
Model: HW19710, 10 forward and 2 reverse
Manual type
With transmission power take-off HW70
Max Torque: 1900N·M
Front Axle
Model: HF9
Drum brake system
Rated loading capacity :9000kgs
Rear Axle
Model: MCP16ZG
Capacity: 16000kgs
Drum braking steering axle,self-adjusting arm
Speed ratio:
Wheelbase
3800+1350 mm
Brake System
Type :Wabco braking system
ABS 4S/4M
Engine exhaust valve brake
Oil Tanker
300L aluminum alloy fuel tank
Tires
Types: 12.00R20 radial tire; 18PR
10 pcs, plus one pc spare tire
Bumper
Metal bumper
Dump body
5600*2300*1500mm, 8mm for bottom and 6 mm for side plate, rectangular box, Chinese brand front lifting cylinder, with integral
fender, headlight cover.
Dimensions in mm
Front wheel track (mm): 2022
Rear wheel track (mm):1830
Overhang(front/rear) (mm):1500/1870
Overall Dimension (mm): 8650*2580*3450
Weight in kg
Dead weight (kg):13500
Gross vehicle weight (kg):25000

Dump truck is a kind of cargo vehicle with automatic unloading function.
Its main features include:
Automatic unloading function: Through the hydraulic or mechanical system, the goods can be automatically unloaded,

improve the loading and unloading efficiency.
Strong loading capacity: usually has a large cargo capacity, suitable for transporting a large number of bulk goods.
Robust construction: to withstand heavy loads and harsh working conditions.
Various types: such as light dump truck, heavy dump truck, etc., can be selected according to different needs.
Widely used: Often used in mines, construction sites, sand fields and other places of material transport.
The advantages of dump trucks are:
Improve work efficiency: fast discharge, reduce loading and unloading time.
Reduce labor intensity: no manual unloading.
Adapt to harsh environment: have good passability and reliability.
When using a dump truck, pay attention to the following points:
Compliance with relevant regulations: Ensure legal operations.
Regular maintenance: ensure vehicle performance.
Pay attention to safe operation: avoid accidents.
