Custom Grey Silicone Coated Fiberglass Fabric Heat Protection High Strength
Custom Grey Silicone Coated Fiberglass Fabric Heat Protection High Strength
Custom Grey Silicone Coated Fiberglass Fabric Heat Protection High Strength
Custom Grey Silicone Coated Fiberglass Fabric Heat Protection High Strength
Custom Grey Silicone Coated Fiberglass Fabric Heat Protection High Strength
Custom Grey Silicone Coated Fiberglass Fabric Heat Protection High Strength
Specifications
Brand Name :
Changshu Jiangnan Glass Fiber
Model Number :
Silicone Coated Fiberglass Fabric
Certification :
ISO 9001 2015
Place of Origin :
Jiangsu-China
MOQ :
Quantity: 500 Square Meters or Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30000 square meters per day
Delivery Time :
15 Working days after payment
Packaging Details :
Each Roll in a Carton Box, 20 Cartons/Pallet
Product name :
Silicone Coated Fiberglass Cloth
Thickness :
0.45mm
Coating :
One Side Silicone Coating
Yarn Density :
EC9 68 1*2 EC9 68 1*2
Weight :
430g/m2+80g/m2 Silicone Coating
Standing temperature :
Silicone Below 260℃
Good Feature :
No thermal shrinkage phenomenon
Application :
Fabric Expansion Joint
Description

Expansion Joint 3732 510gsm Silicone Coated Fiberglass Fabric

1. Description:

What is silicone coating fiberglass cloth?

silicone coated fiberglass cloth is made with high-temperature resistance, non-toxic fireproof silicone rubber, and heat/flame resistant thermal insulating fiberglass cloth. Jiangnan silicone-coated fiberglass cloth has good resistance to extreme temperatures, with operating temp ranging from -70°C to +260°C.

What is E-glass Fiberglass Yarn?

Alkali-free fiber: an alkali metal oxide content is less than 0.8%, which is an alumni Oboro silicate component. Its chemical stability, electrical insulation properties, and strength are very good. Mainly used as electrical insulation materials, glass fiber reinforced materials, and tire cords.

Silicone-impregnated fiberglass fabric is highly flexible and provides an excellent protection fabric used in insulating blankets and other heat resistant parts. Silicone coating has added water and oil resistance and low smoke and flame retardant.

Type: E-glass

Coating: 100/60g on each side

Structure: silicone+glass fiber+silicone

Weight:510g/m2

Flammability: ≤25%

Strength: 2000/1600 N/50mm

Thickness: 0.45mm

Weave: Satin

2. Technique Data Sheet

Item Weight Thread Count

Yarn

 Break strength Alkali Content
Basic weight Coating weight Weft Warp
Silicone Coating Fiberglass Cloth 430G/M2 160G/M2 18 12 EC9 68 1*2 2000/1600 N/50mm Free

3732 Silicone Coating Fiberglass Cloth
Item Model 3732 Silicone Coating Cloth
Description E-glass Industrial Fabric
Weave Structure 1/3 Twill Weave
Cloth Weight 430gsm
Silicone Coating Weight 80g/m2
Thickness 0.43mm
Yarn Type Warp EC9 68 1*2
Weft EC9 68 1*2
Thread Count Warp 18±1 ends/cm
Weft 12±1 picks/cm
Break Strength Warp 700N/cm
Weft 600N/cm
LOI < 5%
Working Temperature Basic fabric 550 ºC, Silicone coating 260 ºC.
Color Black, Grey, Red
Fire Resistance Non-Flame

3. Silicone Coating Cloth Features

1. Incombustible
2. High-temperature resistant
3. No toxic gas discharge
4. Good insulation
5. Without melting or dripping
6. High strength
7. No thermal shrinkage phenomenon

4. Application

Serve as a fire blanket and welding blanket, foundry splash protect
Conveyor belt and expansion joints
Electrical insulation, chemical corrosion resistance, packing material

Fire Curtain and Smoke Curtain

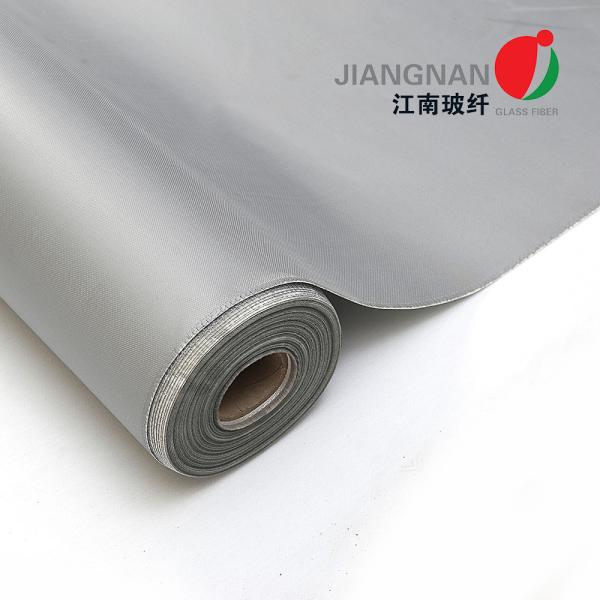

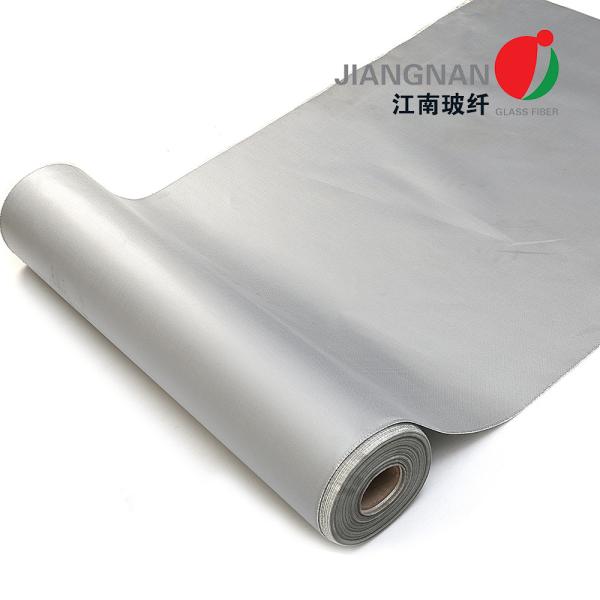

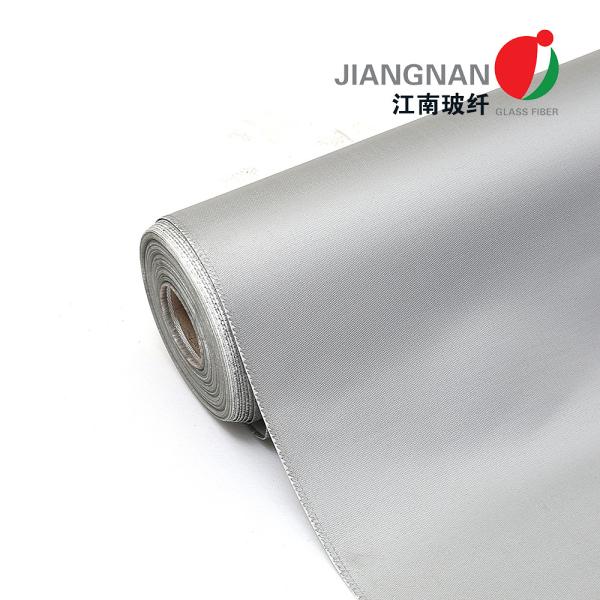

5. More Images for Coated Fiberglass Cloth

Custom Grey Silicone Coated Fiberglass Fabric Heat Protection High StrengthCustom Grey Silicone Coated Fiberglass Fabric Heat Protection High Strength

6. Our Production Line
