Specifications
Brand Name :
Jiangnan
Model Number :
C3786
Certification :
ISO9001:2015
Place of Origin :
CHINA
MOQ :
500 Meters
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, wESTERN uNION
Supply Ability :
10000 Square Meters per day
Delivery Time :
14 Days after the Payment
Packaging Details :
Carton Box,Woven Bag
Product Name :
3786 Fiber Glass Fabric Thermal Insulation
Materials :
C-glass Fiberglass Yarn
Weave :
12H Satin
Weight :
1300gsm
Thickness :
1.2mm
Count :
18*12 Treads
Application :
Wall/Roof Covering Cloth
Processing Service :
Decoiling
Description

Stain Woven Fireproof Fiberglass Fabric 3786 Thermal Insulation With 1.2mm Thickness

1. Product Description:

Fiberglass cloth is a strong and durable woven textile used mainly for industrial, non-apparel applications. Its unique set of valuable properties makes it ideal for many industrial uses, such as for the interiors of circuit boards and conveyor belts. Fiberglass cloth has numerous applications as thermal insulation, electrical insulation in the electronics industry, and even as a component in armor plating on U.S. Military vehicles, helmets, Light-weight fiberglass cloths also provide a smooth finish and are ideal for producing a waterproof layer over wood or other surfaces, such as is needed in boat repair and other marine applications.

2. Table 1: 3786 Product Description

3786 low Weight Woven Fiberglass Cloth
Item Model 3786 Fiberglass Fabric
Description Low Weight Woven Fiberglass Cloth
Weave Structure 12H Satin Weave
Weight 1000gsm
Thickness 1.2mm
Yarn Type Warp EC9 68 1*2
Weft EC9 68 1*2
Thread Count Warp 18±1 ends/cm
Weft 12.6±1 picks/cm
Break Strength Warp 9800 N/5cm
Weft 4800 N/5cm
LOI < 0.4%
Working Temperature ≤550℃

3. Table 2:Safety Data Sheet

E-glass fiberglass yarn is a kind of glass with a very low alkaline content. Its composition that is Oxides is within the following percentages, our products are harmless to human body.

SiO2 50.8-54%
Alkaline Oxides (Na2O,K2O) <1%
CaO 21-24%
MgO <2%
B2O3 6-10%
AhO3 13-15%
TiO2 <0.8%
Fe2O3 <0.5%
F2 <1%

4. Product Features:

This fibergalss fabric is made of continuous fiberglass yarns.

It is smooth,soft and compact,

It has outstanding function : low weight, high strength, high heat-resistant,thermal resistance, nonflammable, anti-corrosion, good exectrial insulationand , environment proection.

5. Application:

3786 fiberglass cloth is a kind of Heavy Duty, it was used for outdoor fireproof cloth. Camping fireproof blanket has the characteristics of fire retardant and high temperature resistance, which can effectively protect the lawn or floor. If you encounter a fire outdoor, you can also use a fire blanket to extinguish the fire. It is one of the essential items for outdoor camping or BBQ.

6. High quality

The fiberglass yarns are supplied by our company, it has 10% more strength, much softer and more beautiful surface than normal product. Our glass fiber cloth quality is much better than other suppliers in China and faster production rate.

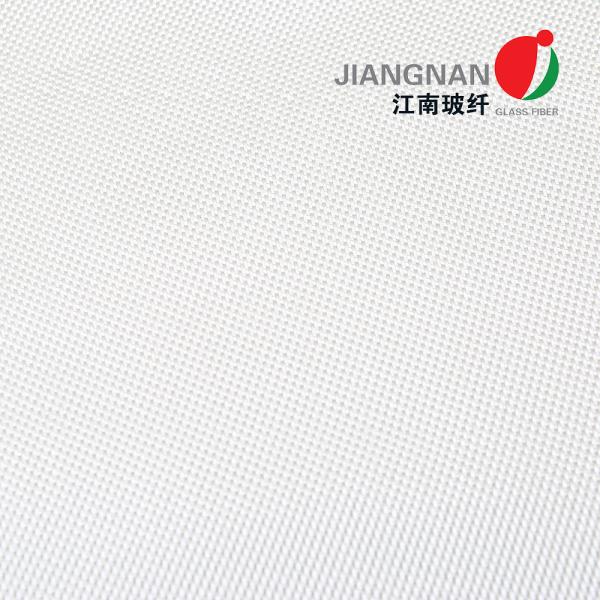

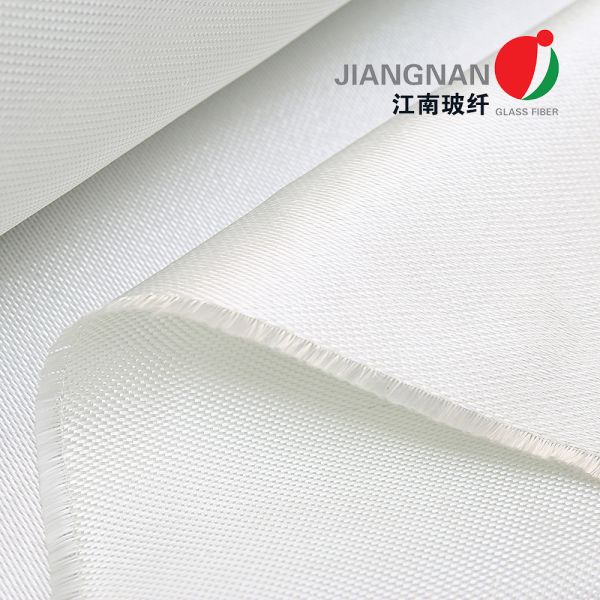

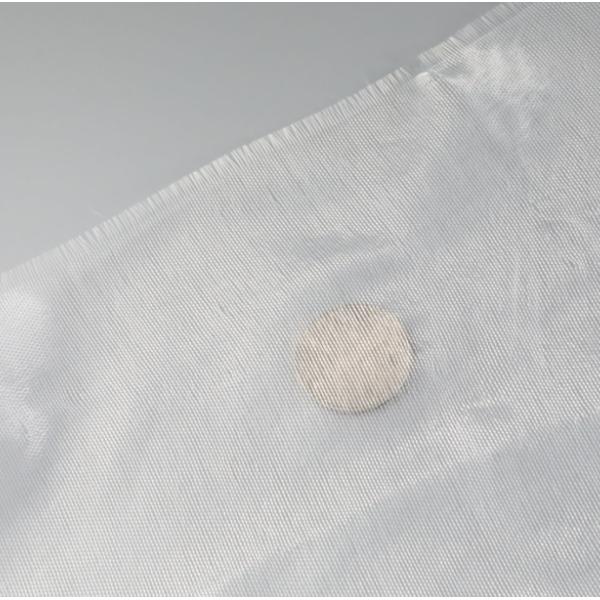

7. More Detail Images
1.2mm Stain Woven Fiberglass Fabric Fireproof 3786 Thermal Insulation1.2mm Stain Woven Fiberglass Fabric Fireproof 3786 Thermal Insulation
8. Related Products (Fireproof Fabric Series)
No Type Width (mm) Weight(g/m2) Thickness (mm) Weave
1 7781 107 127 157 207 254 300±8 0.22 8HS
2 7581 107 127 157 207 254 300±8 0.23 8HS
3 3732 107 127 157 207 254 425±8 0.4 1/3 Twill
4 332 107 127 157 207 254 427±8 0.36 4HS
5 666 107 127 157 207 254 640±20 0.6 8HS
6 3784 107 127 157 207 254 870±20 0.8 8HS
7 3786 107 127 157 207 254 1450±20 1.2 12HS
8 3788 107 127 157 207 254 1650±20 1.6 12HS
