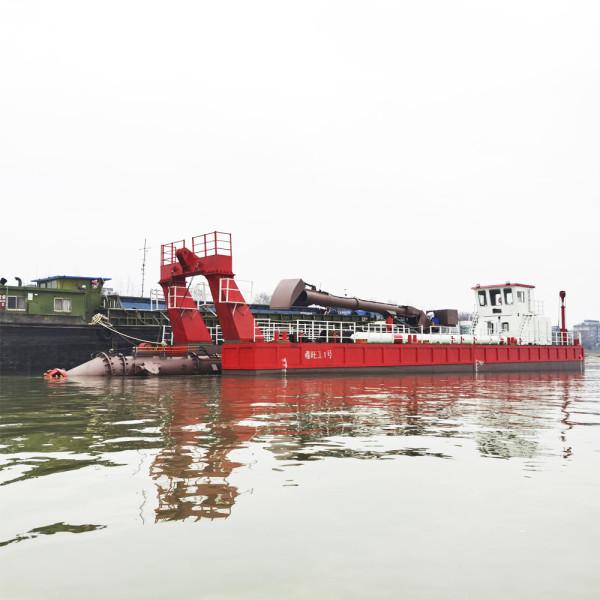

Cutter Head River Dredger Description:

The cutter head river dredger we produce is self-propelled or non self-propelled,portable cutter suction dredger. The hull uses dismantle and box-like structure, cutter head river dredgers' dismantle type can be assembly at working place easily and be transported by road, railway and container accordingly, Cutter head river dredger are designed conveniently in installation and working place moving from one to another. The power system can be designed to electric system or diesel engine driving system according to customers’ requirements.Equipment on the cutter head river dredger are as bellows: traversing device, cutter ladder lifting device, spuds and deck crane. The working process is as following: the cutter head cut the sand and mud underwater to mixture of slurry, then through dredging pump to the pipeline on dredger; at the end the slurry will be discharged by pipeline on land to the required place.

Functions of cutter head river dredger: dredging river, dredging sand, desilting, reclamation for channels and land, and building roads.

Working site of cutter head river dredger: sea, port, lake, and river.

Soil conditions: relative hard soil, harden sand, sludge, sea sand, river sand, clay, mud, and so on.

The design, construction, quality inspection is according to the standards and regulations of CCS.

The steel plates are CCSB plates which meet the requirements of CCS.

The welders are skillful and experienced and certified under the regulations of CCS.

Anti-corrosion paints material are marine use under the requirements of CCS.

The installation concentricity of diesel engine is less than 0.05mm.

The diesel engine brand is Cummins or Mitsubishi, which technology is from America and Germany.

Investing in the cutter head river dredger can help streamline dredging operations, increase productivity, and achieve superior results in dredging projects. Its robust construction, reliable components, and advanced technology make it a cost-effective solution for long-term dredging requirements.

Choose the River Cutter Dredger for your next dredging project and experience the benefits of a high-performance, versatile, and reliable dredging machine. With its cutting-edge features and capabilities, this river dredger is ready to tackle any dredging challenge with precision and efficiency.

Cutter Head River Dredger Features:

• Product Name: River Dredger
• Power Type: Diesel Engine
• Discharge Diameter: 650mm
• Discharge Distance: Up To 3000m
• Model: JMD650
• Diesel Engine: Cummins, WEICAHI, Mitsubishi

Cutter Head River Dredger Technical Parameters:

Cutter Head River Dredger Applications:

When it comes to river dredging operations, the Jin Meng JMD650 river cutter suction dredger is the ideal solution for a wide range of application occasions and scenarios. This powerful and efficient dredging equipment, originating from China and certified with ISO standards, offers exceptional performance and reliability.

Cutter head river dredger is designed and constructed as a dismantle type non-self-propelled cutter head river dredger, suitable for dredging operation of soil type II~IV, including fine sand, clay, silt, coarse sand, etc., in inland water and coastal area.

The hull of cutter head river dredger is composed by five pontoons, including one main pontoon and four side pontoons. The pontoons are full steel welding and are combined together by specially designed connecting pieces for convenient dismantle and assembly. All main parts of cutter head river dredger can be dismantled easily for transportation by sea, railway or road.

The cutter head river dredger is equipped with one diesel engine driving dredge pump.

One harbor generator is equipped.

With a discharge distance of up to 3000m and a maximum dredging depth of 18m, this river cutter suction dredger is well-equipped to tackle dredging projects of various scales. Whether it's deepening river channels, removing sediment buildup, or extracting sand and gravel, the Jin Meng JMD650 excels in delivering high-performance results.

Furthermore, with a supply ability of 10 sets per year, bulk packaging details, a delivery time of 100 days, and payment terms of TT, the Jin Meng JMD650 offers convenience and flexibility to meet the needs of different dredging operations.

In conclusion, the Jin Meng JMD650 river cutter suction dredger is a versatile and reliable choice for river dredging tasks, making it a valuable asset for dredging contractors, construction companies, port authorities, and environmental agencies looking to maintain and enhance waterways efficiently.

Cutter Head River Dredger Customization:

Product Customization Services for River Dredger

Brand Name: Jin Meng

Model Number: JMD650

Place Of Origin: China

Certification: ISO

Minimum Order Quantity: 1 Set

Cutter head river dredger can be customized according to customers’ requirements:

1. Anchor booms installation.

2. Spud carriage installation.

3. 5 anchors are equipped on cutter head river dredger to replace spuds for better balance.

4. Hydraulic driving for spud flat down(to pass and transport on water safely).

5. Make the cutter head river dredger with extra dredging pump underwater to increase dredging depth for 20-30m underwater and guarantee slurry concentrationtp reach 30%.

6. Make the cutter head river dredger with booster station to further discharge distance.

Cutter Head River Dredger Overseas Services:

The Cutter Head River Dredger product comes with comprehensive technical support and services to ensure optimal performance and efficiency. Our team of experts is available to assist with any product-related queries, troubleshooting, and maintenance needs. Additionally, we offer training programs to help users maximize the capabilities of the River Dredger and achieve their project goals efficiently.

Weifang Jin Meng Dredger Company Factory and Workshop

JMD650 26inch cutter head river dredger in working site

JMD650 26inch cutter head river dredger assembly and training

Welcome visit our factory for more cutter head river dredger details

Newly made cutter head river dredger in stock
