Anti-glare foldable LED linear mining lamp for warehouse and factory lighting
Anti-glare foldable LED linear mining lamp for warehouse and factory lighting
Anti-glare foldable LED linear mining lamp for warehouse and factory lighting
Anti-glare foldable LED linear mining lamp for warehouse and factory lighting
Anti-glare foldable LED linear mining lamp for warehouse and factory lighting
Anti-glare foldable LED linear mining lamp for warehouse and factory lighting
Anti-glare foldable LED linear mining lamp for warehouse and factory lighting
Anti-glare foldable LED linear mining lamp for warehouse and factory lighting
Anti-glare foldable LED linear mining lamp for warehouse and factory lighting
Anti-glare foldable LED linear mining lamp for warehouse and factory lighting
Specifications
Brand Name :
JMKMGL
Model Number :
JMK-HB01
Certification :
CE ROHS FCC
Place of Origin :
China/Indonesia
MOQ :
2
Price :
$32.56-$74.36
Payment Terms :
TT,L/C,Paypal
Supply Ability :
1000000pcs/month
Delivery Time :
Depends on QTY
Packaging Details :
gift box
Name :
Highbay linear LED light
Beam Angle :
60°/90°/120°
Luminous Efficacy :
135-150 lm/W
Color Temperature :
3000K / 4000K / 5000K (Three adjustable levels)
Input Voltage :
AC100-277V / AC100-347V
Luminous Flux :
21000-62000 lm
Color Rendering Index :
Ra ≥70
Description

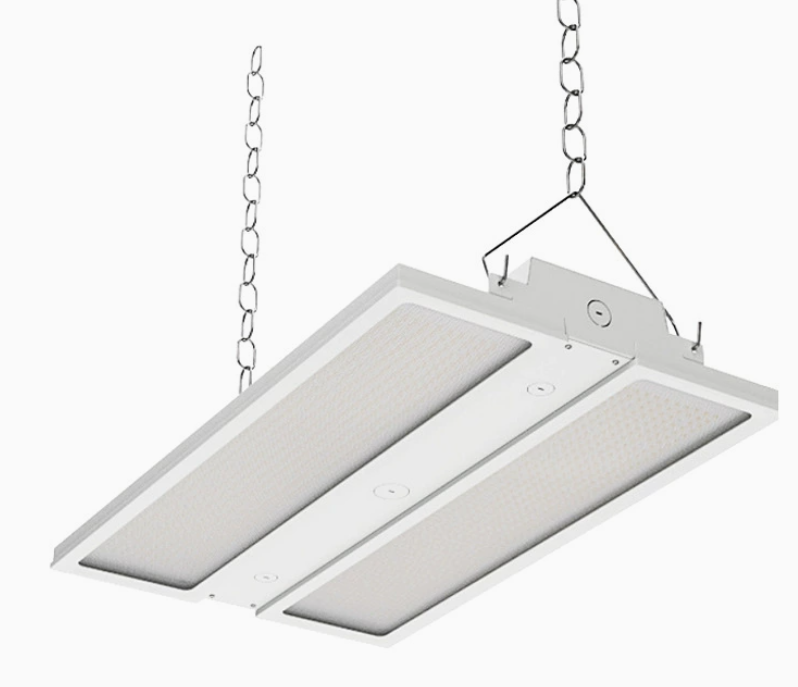

Anti-Glare Foldable LED Linear Mining Lamp

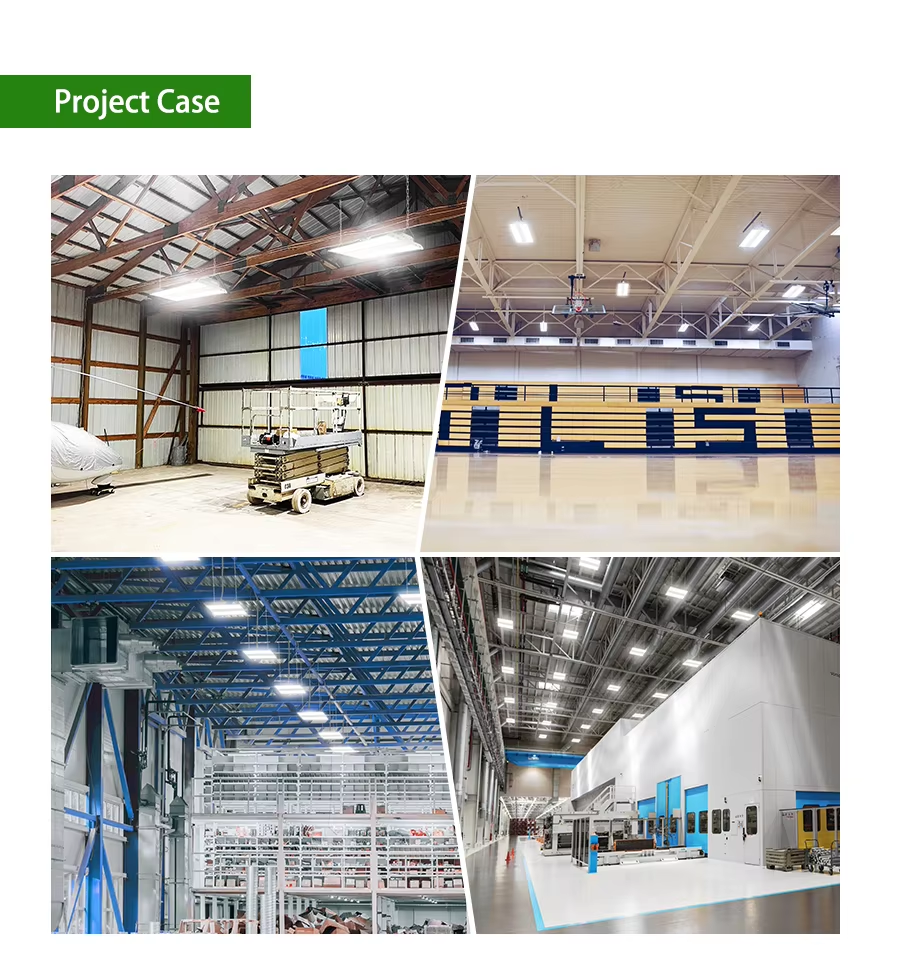

Professional lighting solution for warehouses, factories, gyms, and stadiums featuring anti-glare technology and foldable design for cost-effective transportation.
Product Overview
This LED linear mining lamp features an anti-glare PC lens that effectively reduces glare while providing bright, comfortable illumination. With luminous efficiency up to 150lm/W, it offers three adjustable power levels and three color temperature options (3000K/4000K/5000K), 0-10V dimming capability, and IP65 protection rating.
Key Features

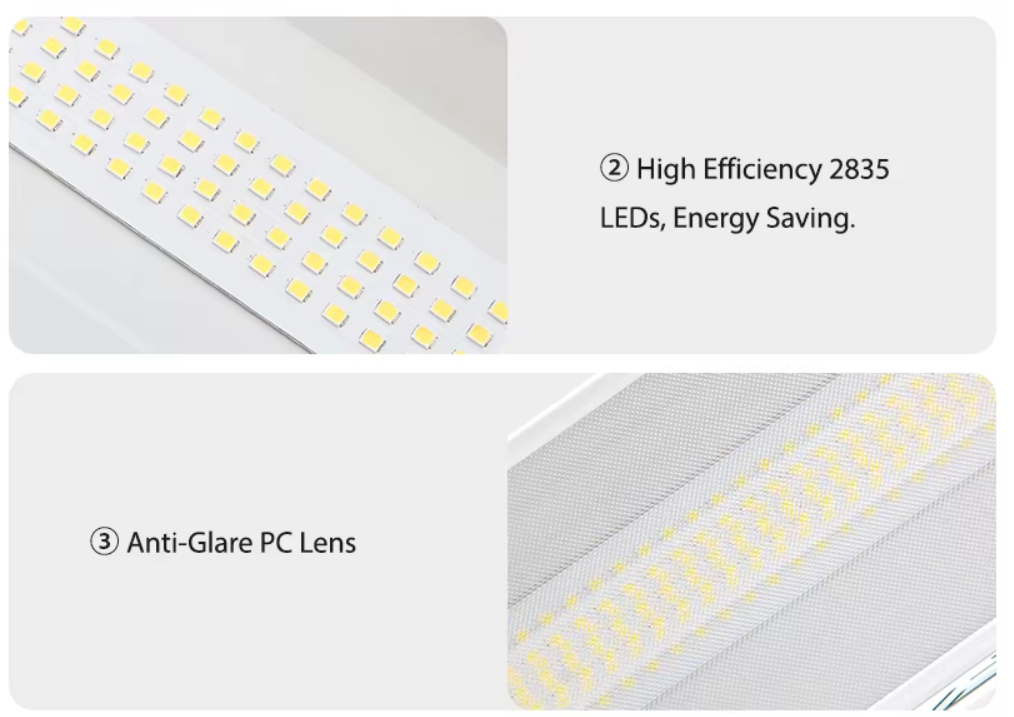

  • Anti-glare Comfort Lighting: PC lens with groove structure reduces direct glare, protecting eyes during long-term work
  • Foldable Ultra-Thin Design: 0-90° folding capability with 63mm thickness reduces shipping costs by over 40%
  • Multi-Purpose Functionality: Three power levels and three adjustable color temperatures reduce inventory needs and adapt to various ceiling heights and brightness requirements

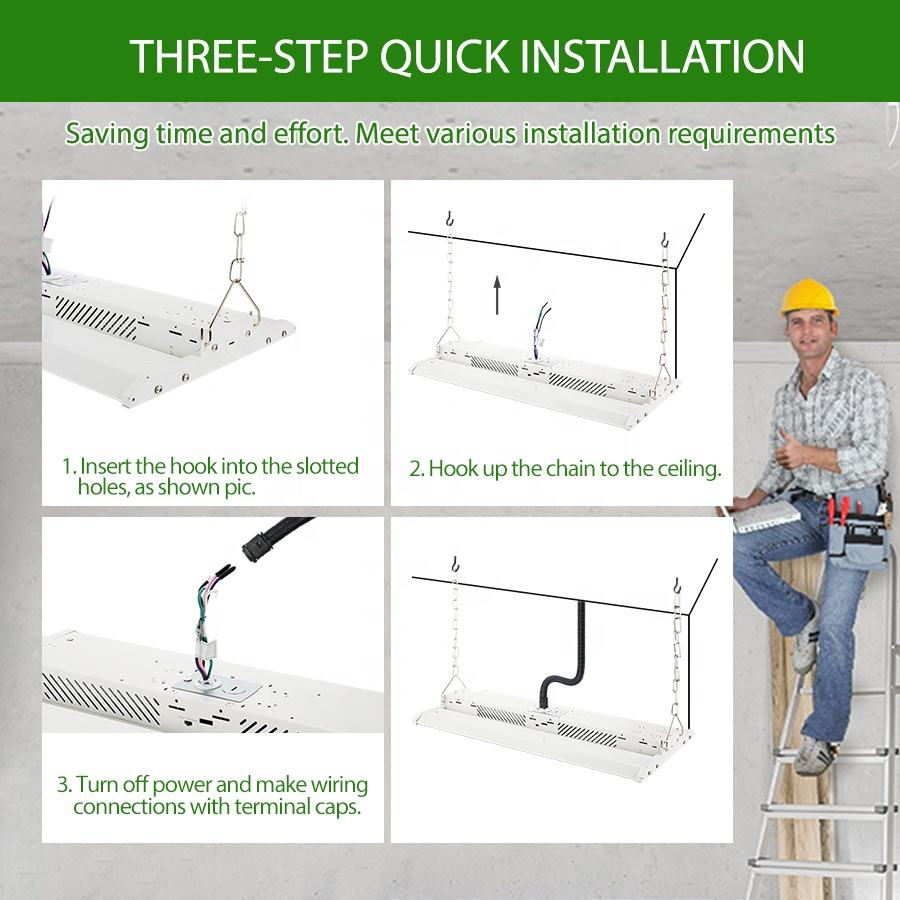

  • Quick Three-Step Installation: Insert hook into slot, hoist chain, and connect wires with wire cap - no complex tools required

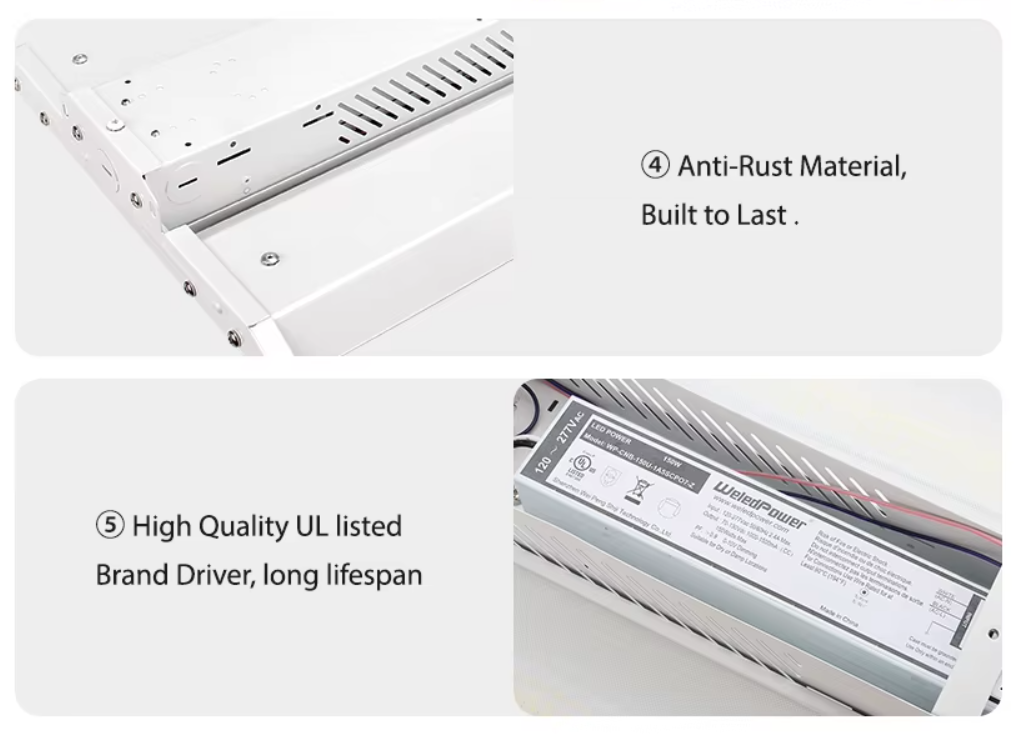

  • High Efficiency & Durability: 150lm/W ultra-high luminous efficiency, UL-listed driver, IP65 dust/water resistance, and 5-year warranty
Technical Specifications
Model No Input Voltage CCT Power (W) Efficacy (lm/W) CRI IP Rating Operating Temp (°C) Size
HB01-120W 100-277V/AC 4000K 6500K 120W 120-170LM/W >80 IP65 -20°C ~ +45°C 600*154*50mm
HB01-240W 100-277V/AC 4000K 6500K 240W >80 >80 IP65 -20°C ~ +45°C 600*370*70mm
HB01-480W 100-277V/AC 4000K 6500K 480W >80 >80 IP65 -20°C ~ +45°C 1200*370*70mm
Product Images
Anti-glare foldable LED linear mining lamp for warehouse and factory lighting Anti-glare foldable LED linear mining lamp for warehouse and factory lighting Anti-glare foldable LED linear mining lamp for warehouse and factory lighting Anti-glare foldable LED linear mining lamp for warehouse and factory lighting Anti-glare foldable LED linear mining lamp for warehouse and factory lighting
Frequently Asked Questions
Product Performance
How is the anti-glare effect achieved?
The lighting fixture features an anti-glare PC lens and internal groove light-guiding structure that evenly scatters strong light and prevents direct glare, making it suitable for extended work periods under lighting.
Will the folding design affect installation?
No. The folding is only used for transportation packaging. During installation, it can be unfolded to either 0° or 90°, and the three-step quick installation (hook-chain-wiring) is very simple.
How to switch between three power levels and color temperatures?
Open the lighting fixture's junction box. Inside, there is a dial switch that allows selection of desired power (such as 150/120/100W) and color temperature (3000K/4000K/5000K) without external tools.
Can this LED linear mining lamp be used in food factories or humid environments?
With an IP65 protection rating, it is dust-proof and resistant to low-pressure water spray, making it suitable for wet or dusty environments including warehouses, food processing plants, and gyms.
Does it support sensor control?
Yes. The luminaire is equipped with a preset sensor socket (optional) for plug-and-play microwave sensors. This enables automatic highlighting when people are present, and dimming or turning off when people leave, further saving energy.
