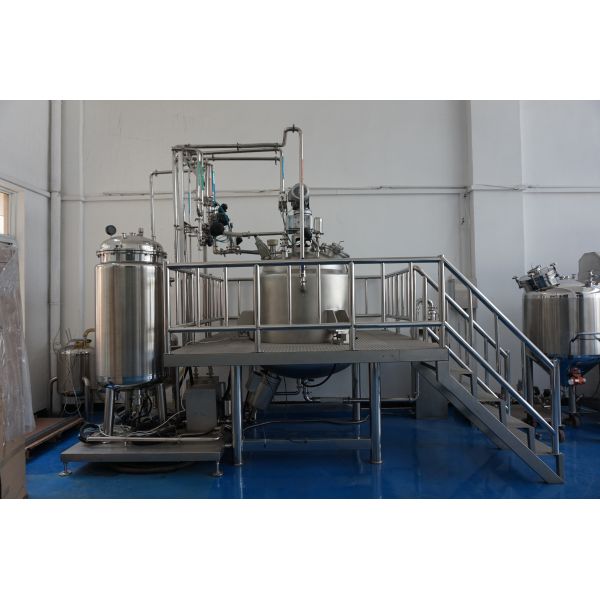

Our Multifunctional Extraction and Concentration Unit is designed for pharma, food, health care, and natural product industries. It combines extraction, filtration, vacuum concentration, solvent recovery, and process control in one integrated system. From raw materials to finished extracts or concentrated liquids, it provides a reliable and efficient solution for research labs, pilot plants, and small-to-medium production lines.

• Versatile Process Options

  Handles a variety of extraction methods, including water, alcohol, thermal reflux, and essential oil extraction—all in a single unit.

• Efficient & Energy-Saving

  Low-temperature vacuum concentration and jacket heating help shorten production cycles, maximize solvent recovery, and reduce energy consumption.

• Stable & Accurate

  Built-in online weighing and multi-parameter monitoring ensure consistent batch quality and reliable results.

• Hygienic & Safe

  Made entirely from stainless steel with easy-to-clean components, supporting CIP/SIP cleaning and meeting GMP standards.

• Compact & User-Friendly

  Modular design simplifies installation and operation while keeping maintenance straightforward.

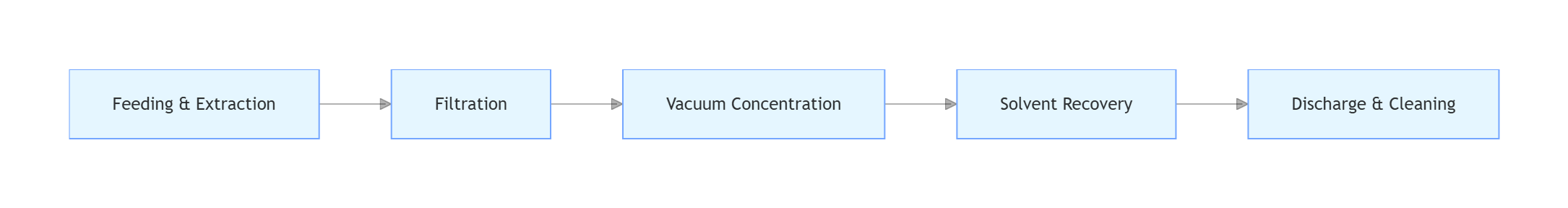

1. Feeding & Extraction

   – Raw materials are heated and stirred to release active compounds.

2. Filtration

   – Impurities are removed to protect the system and improve the clarity of extracts.

3. Vacuum Concentration

   – Liquids are concentrated at low temperatures under vacuum, preserving heat-sensitive ingredients.

4. Solvent Recovery

   – Condensed solvents can be reused, reducing costs and waste.

5. Discharge & Cleaning

   – Finished products are easily discharged, with online cleaning and sterilization for hygiene.

• Pharma Industry


  Extraction of alkaloids, flavonoids, polysaccharides, and other herbal ingredients.

• Food & Health Care

  Production of plant extracts, fruit and vegetable concentrates, and natural flavors.

• R&D & Pilot Testing

  Ideal for testing new formulations, process optimization, and scaling up to industrial production.

• Materials

  304/316L stainless steel, mirror-polished, GMP-compliant

• Extraction Tank

  Pressure ≤0.15 MPa, Temperature ≤120°C, adjustable stirring 30–60 r/min

• Concentration

  Low-temperature vacuum, evaporation 30–80 L/h, specific gravity 1.05–1.30 adjustable

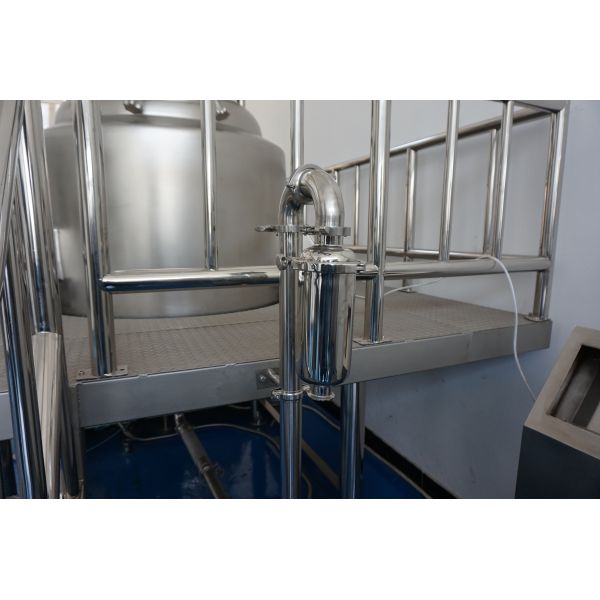

• Filtration

  Sanitary quick-install filters, optional 60/100/200 mesh

• Solvent Recovery

  ≥85–90%

• Control Options

  Manual or PLC automatic

• Cleaning

  CIP online cleaning and SIP sterilization

• Reliable & Consistent

  Produces high-quality extracts with minimal manual intervention.

• Cost-Effective

  Reduces energy use and maximizes solvent recovery.

• Safe & Hygienic

  Fully compliant with GMP standards.

• Flexible

  Suitable for multiple extraction processes across various industries.

This unit is a practical and versatile solution for laboratories, pilot plants, and production lines, helping businesses improve efficiency while maintaining product quality.

To learn more about our Multifunctional Extraction & Concentration Unit, contact us for a consultation, demo, or quotation.
