Compact Integrated Design Gelatin Melting Tank with Food-Grade 316L Stainless Steel and Vacuum Defoaming for Lab and R&D Use
Compact Integrated Design Gelatin Melting Tank with Food-Grade 316L Stainless Steel and Vacuum Defoaming for Lab and R&D Use
Compact Integrated Design Gelatin Melting Tank with Food-Grade 316L Stainless Steel and Vacuum Defoaming for Lab and R&D Use
Compact Integrated Design Gelatin Melting Tank with Food-Grade 316L Stainless Steel and Vacuum Defoaming for Lab and R&D Use
Specifications
Certification :
CE
Delivery Time :
15 days-30 days
Weight :
150–250kg (by volume)
Supply Ability :
100000sets per year
Function :
melting, mixing and defoaming
Packaging Details :
wooden box with vacuum packing inside
Dimensions (50L) :
800×600×1200mm
Applications :
Lab., R&D center
Payment Terms :
L/C,D/P,T/T,D/A
Effective Volume :
200L
MOQ :
1SET
Stirring System :
1.5kW motor, 316L spiral paddle, 0–600rpm
Place of Origin :
CHINA
Brand Name :
JANGLI
Description

Compact Integrated Design Gelatin Melting Tank For Food Industry Use


Description of Gelatin Melting Tank

The Portable Melter is a all-in-one solution that combines fast uniform melting, high-efficiency stirring, precise temperature control, and vacuum defoaming in a single compact unit. Crafted from food-grade and pharmaceutical-grade 316L stainless steel (304 stainless steel available as an economical alternative), it boasts strong corrosion resistance—ideal for acidic food slurries or chemical raw materials—and its smooth polished surface (Ra ≤ 0.8μm) prevents material residue buildup. No fixed installation is required: with a footprint of only 0.8㎡, it fits through standard 80cm-wide lab or workshop doors, and heavy-duty locking casters ensure stable positioning while enabling seamless movement between R&D labs, workshop production lines, and small-batch trial stations.


Technical Specifications of Gelatin Melting Tank (Customizable)

Item

Specification

Effective Volume

50L–200L (up to 300L custom)

Temperature Range

Room Temp ~ 200℃ (±1℃ PID control)

Stirring System

1.5kW motor, 316L spiral paddle, 0–600rpm

Vacuum System

Oil-free pump, ≤-0.095MPa (absolute)

Power Supply

380V 3-phase / 220V 1-phase (50/60Hz)

Dimensions (50L)

800×600×1200mm

Weight

150–250kg (by volume)

Body Material

316L stainless steel (304 optional)

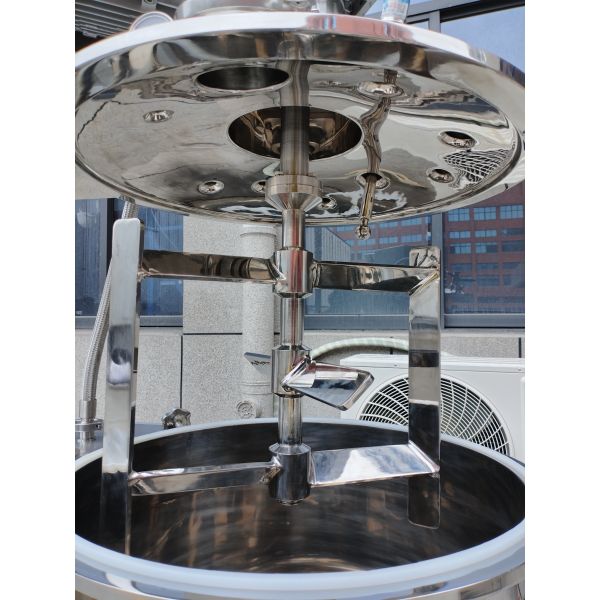

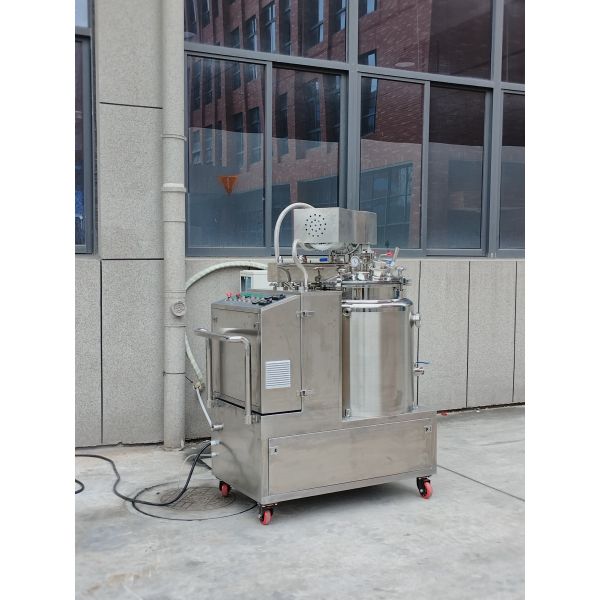

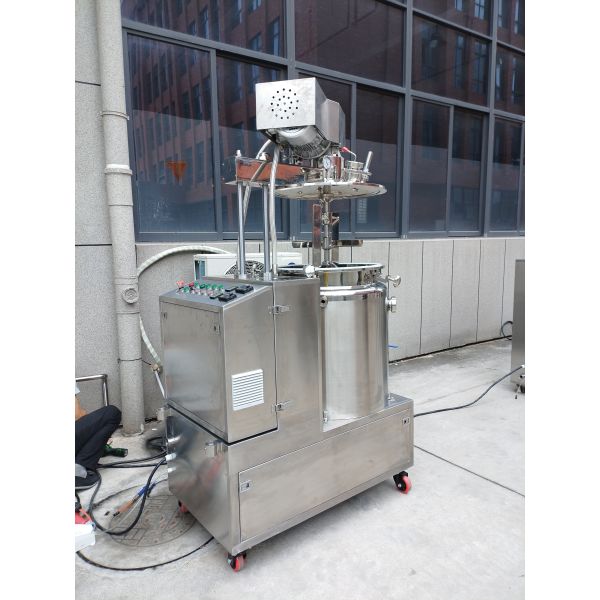

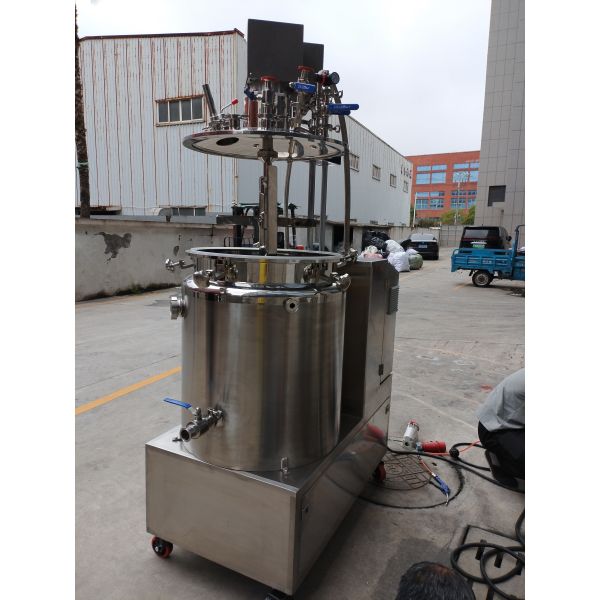

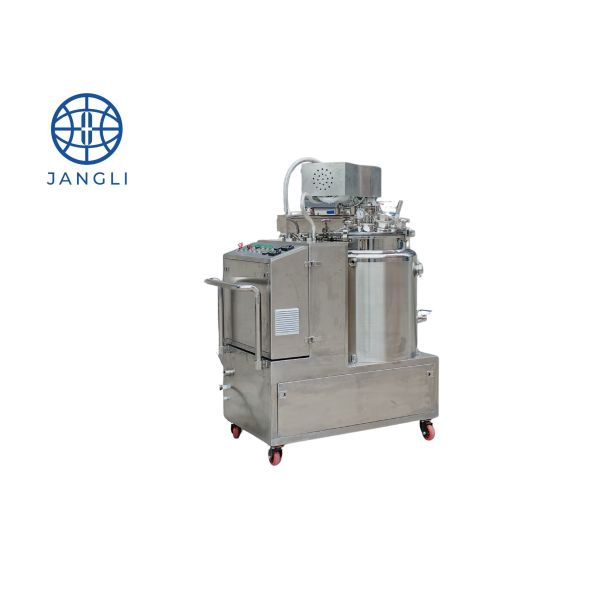

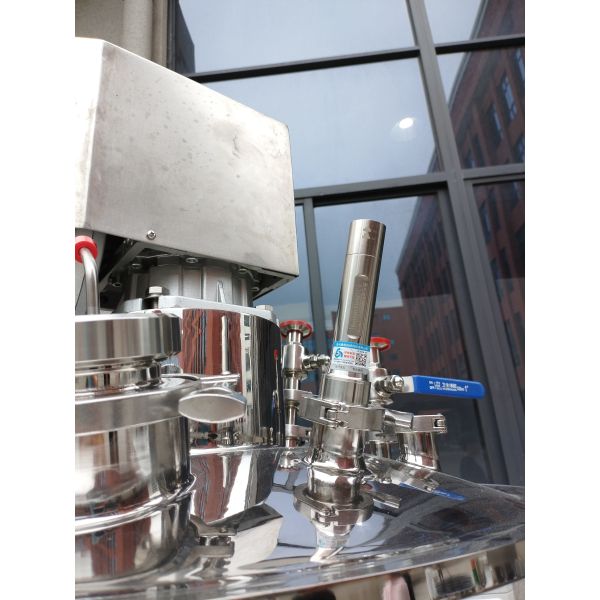

Images of Gelatin Melting Tank

Compact Integrated Design Gelatin Melting Tank with Food-Grade 316L Stainless Steel and Vacuum Defoaming for Lab and R&D Use

Compact Integrated Design Gelatin Melting Tank with Food-Grade 316L Stainless Steel and Vacuum Defoaming for Lab and R&D Use

Compact Integrated Design Gelatin Melting Tank with Food-Grade 316L Stainless Steel and Vacuum Defoaming for Lab and R&D Use

Compact Integrated Design Gelatin Melting Tank with Food-Grade 316L Stainless Steel and Vacuum Defoaming for Lab and R&D Use


Packing and Shipping of Gelatin Melting Tank

Compact Integrated Design Gelatin Melting Tank with Food-Grade 316L Stainless Steel and Vacuum Defoaming for Lab and R&D Use

FAQ

Q1: Can the machine run 24/7?

A: Yes, it’s built for long-term stable operation without interruptions.

Q2: Is switching capsule formats difficult?

A: Not at all. One-click parameter recall and quick mold changes make it easy.

Q3: Is it audit- and export-ready?

A: Fully compliant with GMP, FDA, and 21 CFR Part 11, ready for international markets.

Q4: Are maintenance costs high?

A: No, the mature design and low power consumption keep long-term costs manageable.
