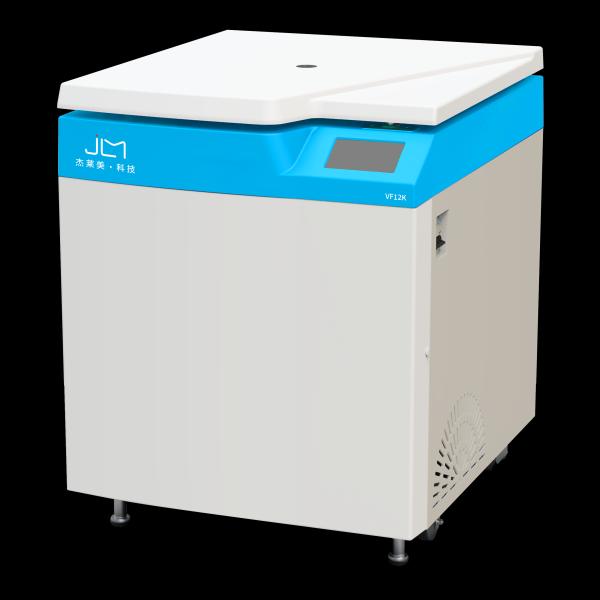

VF12K High-Speed Refrigerated Centrifuge
VF12K High-Speed Refrigerated Centrifuge
Specifications
Description
Product Features
  1. High-definition, large-screen true-color TFT touch screen control—simple operation, intuitive display; setting parameters and real-time operating parameters can be displayed on the same screen.
  2. Large-capacity operational data and fault records, among other information, facilitate the tracking of historical operational data.
  3. A powerful control system that supports ten-level stepped centrifugation, meeting diverse experimental needs (100 programs, each program divided into 10 segments), and featuring functions such as program mode and curve mode. The system includes a preset program recall function, allowing users to customize and edit up to 100 programs. Hierarchical password protection ensures safe and reliable instrument operation, facilitating precise management.
  4. Features 10 programmed acceleration curves and 11 programmed deceleration curves, with a customizable function for setting both acceleration and deceleration times. This further ensures optimal centrifugation performance and prevents secondary settling of samples.
  5. You can enter the sample number to query the centrifugation records for each sample.
  6. Equipped with high-performance compressor units from imported brands and using the fluorine-free refrigerant R404a, compliant with environmental protection requirements.
  7. Equipped with rotor identification functionality and featuring a suction-type door lock, the instrument is outfitted with multiple protection features—including unbalance detection, self-locking door cover, overspeed protection, and overtemperature protection—to ensure safe operation.
  8. Uses an integral sealing ring made of food-grade silicone rubber, compliant with GMP certification. The centrifuge has obtained U.S. FDA certification.
  9. An optional automatic door lid opening and closing function is available. Simply touch the “Open Door" button on the control interface to easily open or close the door lid—no manual operation required. The device is equipped with an intelligent anti-pinch mechanism for the door lid.
  10. An optional PLC control system is available.
Technical Specifications
Maximum rotational speed 12000r/min
Maximum relative centrifugal force 19830*g
Maximum capacity 4 * 2000 ml
Temperature control range -20～+40℃
Temperature control accuracy ±1℃
Compressor High-performance compressor units from imported brands, environmentally friendly refrigerant R404a
Overall machine power 5.5KW
External dimensions (L*W*H) 760mm * 900mm * 1005mm
