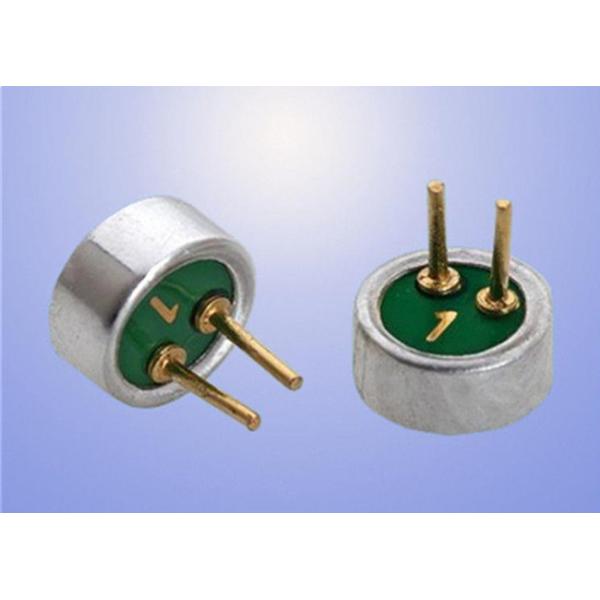

4.5*2.2mm pin type All point to the microphone Copper shell copper core material Electret capacitance
4.5*2.2mm pin type All point to the microphone Copper shell copper core material Electret capacitance
Specifications
Brand Name :
J&L
Model Number :
HCM-4020-BSCP
MOQ :
1000
Price :
Negotiaed
Payment Terms :
T/T
Supply Ability :
1000000pcs/M
Delivery Time :
7-15 days
Packaging Details :
plastic package
Sensitivity :
-46±3dB
S/N Ratio :
58dB(Min)(A-Curve at 1KHz
Diameter :
16mm
Impedance :
3.3KΩ(MAX)
Operation Temp :
-20℃---+55℃
Current Consumption :
<0.5mA
Directivity :
Noise Cancelling
Place of Origin :
DONGGUAN
Certification :
ROHS ,CE.UL
Description

4.5*2.2mm pin type All point to the microphone Copper shell copper core material Electret capacitance

Dimensions : 4.5*2.2 mm
Sensitivity : -46±3dB
Frequency range : 50-20 KHz
Directivity : All that
Impedance :Low impedance
Current consumerption :Maximum 500 uA
Standard operation voltage :3V
Operation voltage range :1.5-10V
S/N ratio :Greater than 58 dB
Sensitivity reduction :Voltage change 1.5V Sensitivity changes less than 3dB

4.5*2.2mm pin type All point to the microphone Copper shell copper core material Electret capacitance
