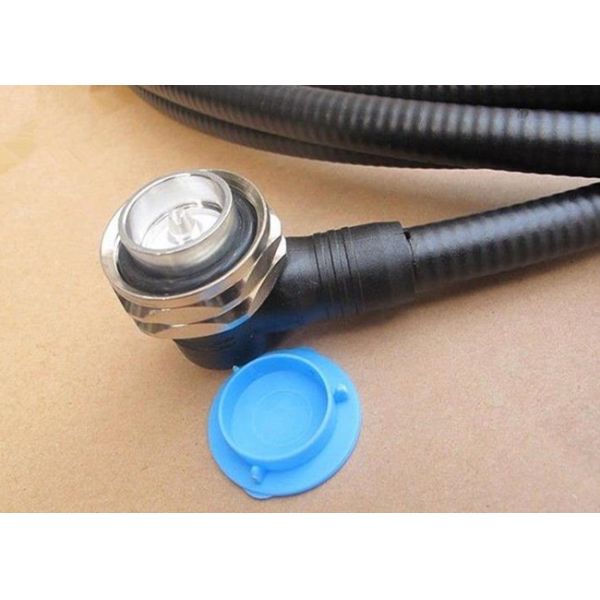

1/2 Flex cable Female din Connector
1/2 Flex cable Female din Connector
Specifications
Place of Origin :
DONGGUAN
Brand Name :
J&L
MOQ :
1000pcs
Packaging Details :
PE bag, Carton package
Delivery Time :
7-15 days
Payment Terms :
T/T, Western union, PayPal
Certification :
ROHS ,CE.UL
Model Number :
DF 1/2 LCF
Price :
Negotiated
Supply Ability :
1000000pcs/M
Type :
DIN
Application :
RF
Gender :
Female
Description

1/2" Flex cable Female din Connector

Interface : Female

Brand : J&L

Connector Impedance : 50 ohm

Cable Impedance : 50 ohm

RF Operating Voltage , maximum(vrms) :707 V

DC Test Voltage : 2000V

Outer Contact Resistance , maximum : 0.3 mOhm

Inner Contact Resistance , maximum : 2 mOhm

Insulation Resistance , minimum : 5000 mOhm

Average Power : 0.6 kW @ 900 MHz

Peak Power , maximum : 10 kW

Insertion Loss , typical : 0.08 Db

VSWR Straight : 1.163(0.8-2.5GHz)

Shielding Effectivenss : 110Db

Outer Contact Attachment Method : Selfflare

Inner Contact Attachment Method : Push fit

Outer Contact Plating : Trimetal /Cu Sn Zn

Inner Contact Plating: Silver

Insulation : PTFE

O-ring : Silicone Rubber

Attachment Durability : 25cycles

Interface Durability : 500cycles

Interface Durability Method : IEC 6116916: 9.5

Connector Retention Tensile Force : 890 N /200

Connector Retention Torque : 5.42 Nm/48.00 in 1B

Pressurizable : No

1/2
