Hot Sale 48V BBQ Brushless dc motor FAG bearing JK86bls71-X031 0.7N.m bldc for Grill machines fire-proof
Hot Sale 48V BBQ Brushless dc motor FAG bearing JK86bls71-X031 0.7N.m bldc for Grill machines fire-proof
Hot Sale 48V BBQ Brushless dc motor FAG bearing JK86bls71-X031 0.7N.m bldc for Grill machines fire-proof
Hot Sale 48V BBQ Brushless dc motor FAG bearing JK86bls71-X031 0.7N.m bldc for Grill machines fire-proof
Hot Sale 48V BBQ Brushless dc motor FAG bearing JK86bls71-X031 0.7N.m bldc for Grill machines fire-proof
Hot Sale 48V BBQ Brushless dc motor FAG bearing JK86bls71-X031 0.7N.m bldc for Grill machines fire-proof
Hot Sale 48V BBQ Brushless dc motor FAG bearing JK86bls71-X031 0.7N.m bldc for Grill machines fire-proof
Hot Sale 48V BBQ Brushless dc motor FAG bearing JK86bls71-X031 0.7N.m bldc for Grill machines fire-proof
Hot Sale 48V BBQ Brushless dc motor FAG bearing JK86bls71-X031 0.7N.m bldc for Grill machines fire-proof
Hot Sale 48V BBQ Brushless dc motor FAG bearing JK86bls71-X031 0.7N.m bldc for Grill machines fire-proof
Specifications
Brand Name :
Jkongmotor
Model Number :
JK86bls71-X031
Certification :
CE/IS0/REACH
Place of Origin :
China
MOQ :
3
Price :
US$29~US$40
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
1000PCS/MONTH
Packaging Details :
CARTON
Power :
220W
Voltage :
48V
Motor length :
84.5mm
Rated Speed :
3000rpm
Rated Torque :
0.7N.m
Usage :
BBQ motor
Description

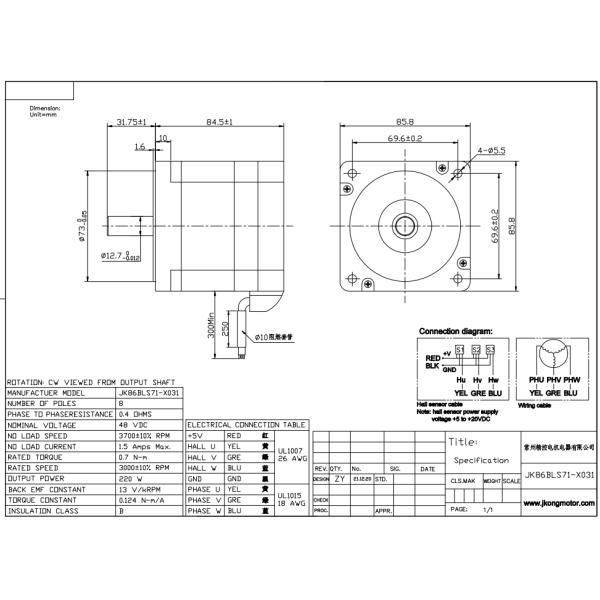

48V BBQ Brushless dc motor FAG bearing JK86bls71-X031 0.7N.m bldc for Grill machines fire-proof

JK86bls71-X031 is widely used in BBQ/Grill machines. And this JK86bls71-X031 leading wire is fire-proof type and suitable for high temperture caused when barbecue machine start moving.

What is more, for this JK86bls71-X031, its power is 220W and voltage is 48V, which is quite popular in Turkey market.

The JK86bls71-X031 Brushless dc motor use FAG bearing. Its front bearing is 6203, rear bearings is 6202；with very high quality.

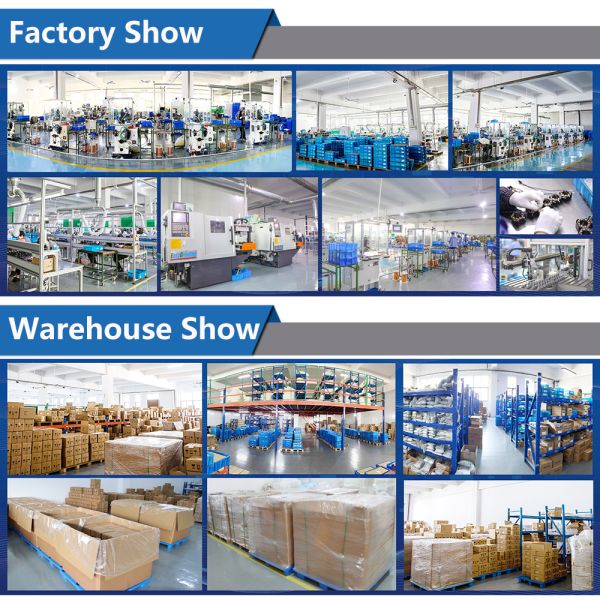

Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.

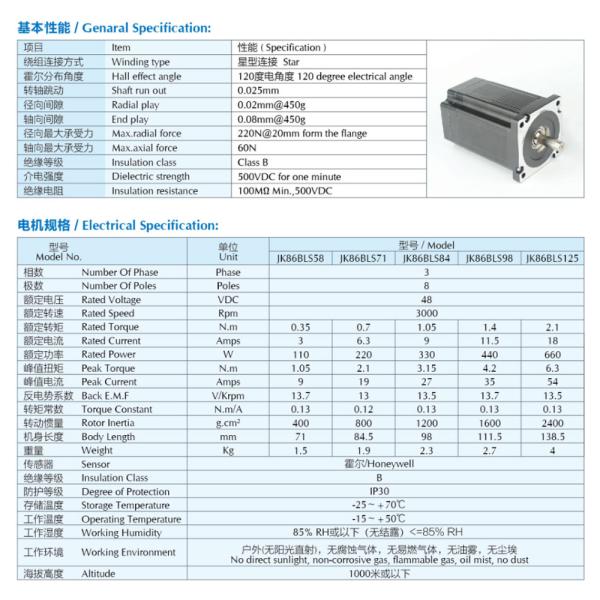

86mm BLDC MOTOR SPECIFICATION:
Model
Specification
Unit
JK86BLS58
JK86BLS71
JK86BLS84
JK86BLS98
JK86BLS125
Number Of Phase
Phase
3
Number Of Poles
Poles
8
Rated Voltage
VDC
48
Rated Speed
Rpm
3000
Rated Torque
N.m
0.35
0.7
1.05
1.4
2.1
Rated Current
Amps
3
6.3
9
11.5
18
Rated Power
W
110
220
330
440
660
Peak Torque
N.m
1.05
2.1
3.15
4.2
6.3
Peak Current
Amps
9
19
27
35
54
Back E.M.F
V/Krpm
13.7
13
13.5
13.7
13.5
Torque Constant
N.m/A
0.13
0.12
0.13
0.13
0.13
Rotor Inertia
g.c㎡
400
800
1200
1600
2400
Body Length
mm
71
84.5
98
111.5
138.5
Weight
Kg
1.5
1.9
2.3
2.7
4

Hot Sale 48V BBQ Brushless dc motor FAG bearing JK86bls71-X031 0.7N.m bldc for Grill machines fire-proof
Hot Sale 48V BBQ Brushless dc motor FAG bearing JK86bls71-X031 0.7N.m bldc for Grill machines fire-proof
Hot Sale 48V BBQ Brushless dc motor FAG bearing JK86bls71-X031 0.7N.m bldc for Grill machines fire-proof
Hot Sale 48V BBQ Brushless dc motor FAG bearing JK86bls71-X031 0.7N.m bldc for Grill machines fire-proof
Hot Sale 48V BBQ Brushless dc motor FAG bearing JK86bls71-X031 0.7N.m bldc for Grill machines fire-proof
Hot Sale 48V BBQ Brushless dc motor FAG bearing JK86bls71-X031 0.7N.m bldc for Grill machines fire-proof
Hot Sale 48V BBQ Brushless dc motor FAG bearing JK86bls71-X031 0.7N.m bldc for Grill machines fire-proof
