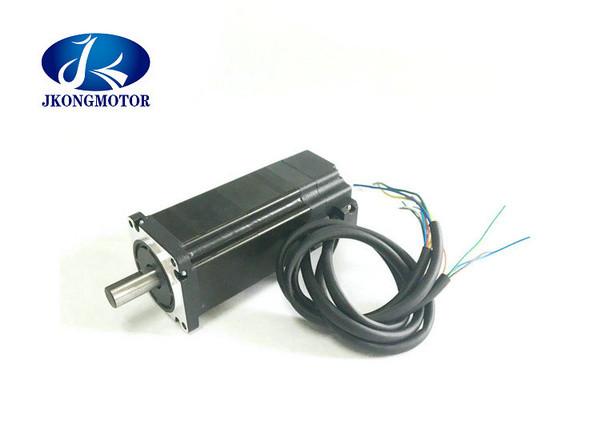

ISO9001 Home Appliance 50W 8P 24v Bldc Motor With Encoder
ISO9001 Home Appliance 50W 8P 24v Bldc Motor With Encoder
ISO9001 Home Appliance 50W 8P 24v Bldc Motor With Encoder
ISO9001 Home Appliance 50W 8P 24v Bldc Motor With Encoder
ISO9001 Home Appliance 50W 8P 24v Bldc Motor With Encoder
ISO9001 Home Appliance 50W 8P 24v Bldc Motor With Encoder
Specifications
Brand Name :
Jkongmotor
Model Number :
JK42BLS02EX1000
Certification :
CE, ROHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
US $30 - 40 / Pieces
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
30000PCS/MONTH
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Speed(RPM) :
4000rpm
Insulation class :
B
Rated Voltage :
24VDC
Number of poles :
8
Rated power :
52.5 W
Rated Torque :
0.04N.m
Type :
Brushless DC Motor
Application :
Home Appliance, air cooler/ curtain/cleaner, fan, electric vehicle, Home application
MOQ :
10pcs
Description
24V 50W Brushless DC Motor With Encoder 1000ppr CE ROHS Approved
Product Description Of Brushless Dc Motor:
Model
Specification Unit JK42BLS02 JK42BLS03
Number Of Phase Phase 3
Number Of Poles Poles 8
Rated Voltage VDC 24
Rated Speed Rpm 4000
Rated Torque N.m 0.125 0.185
Rated Current Amps 3.3 4.8
Rated Power W 52.5 77.5
Peak Torque N.m 0.38 0.56
Peak Current Amps 10.6 15.5
Back E.M.F V/Krpm 4.2 4.3
Torque Constant N.m/A 0.041 0.041
Rotor Inertia g.c㎡ 48 72
Body Length mm 61 81
Weight Kg 0.45 0.65
Note: We can also customized products according to customer's requirements.
Dimensions of 500w brushless dc motor with encoder:
(Unit=mm)
ISO9001 Home Appliance 50W 8P 24v Bldc Motor With Encoder
