JKBLD750 3 Phase BLDC Motor Driver +18V~50VDC 5A For 750W BLDC Motor
JKBLD750 3 Phase BLDC Motor Driver +18V~50VDC 5A For 750W BLDC Motor
JKBLD750 3 Phase BLDC Motor Driver +18V~50VDC 5A For 750W BLDC Motor
JKBLD750 3 Phase BLDC Motor Driver +18V~50VDC 5A For 750W BLDC Motor
JKBLD750 3 Phase BLDC Motor Driver +18V~50VDC 5A For 750W BLDC Motor
JKBLD750 3 Phase BLDC Motor Driver +18V~50VDC 5A For 750W BLDC Motor
Specifications
Brand Name :
Jkongmotor
Model Number :
JKBLD750
Certification :
CE, ROHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
US$41.5~US$51.5
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
100000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Model No. :
JKDBLD750
Supply voltage :
+18VDC - 50VDC
Output Current :
25A - 45A
Certified :
CE ROHS
Matched Motor :
Nema23 stepper motor
Suitable motor speed :
0-20000rpm
Hall sensor voltage :
4.5V-5.5V
External Potentiometer :
10KΩ
Description

18V~50VDC 25A - 45A Brushless Dc Motor Driver JKBLD750 For 0-750W Bldc Motor

Description:

The JKBLD750 BLDC motor drive is a high performance, cost-effective 3phase BLDC motor drive, which can provide power output Max 750VA.The design is based on advanced DSP technology and feature high torque, low noise, low vibration, PID speed loop, PID current loop, over current protection, over load protection and a combined use of manual speed adjustment and automatic speed adjustment.

Electrical Specifications:

Parameter Min Rated Max Unit
Motor Hall Sensor Angle 120°/240°
DC Power Input 18 48 50 V
Drive Current Output 0 25 45 A
Suitable Motor Speed 0 20000 rpm
Hall Sensor Voltage 4.5 5 5.5 V
Hall Sensor Current 20 mA
External Potentiometer 10K Ω

Connection Definition:

Mark Definition
DC+/DC- DC power input (DC24V~DC48V)
U,V,W Motor lead wire
Hu,Hv,Hw Hall sensor lead wire
Vcc External Potentiometer Power Supply ( Internal Power Supply Only)
EN Enable: High Level/Stop Low Level/Run
SV External potentiometer
F/R Direction: Low Level/CCW High Level or No Connection/CW
BRK Quick Brake: High Level/Stop Low Level/Run

Connection:

JKBLD750 3 Phase BLDC Motor Driver +18V~50VDC 5A For 750W BLDC Motor

Mechanical Drawings:

JKBLD750 3 Phase BLDC Motor Driver +18V~50VDC 5A For 750W BLDC Motor

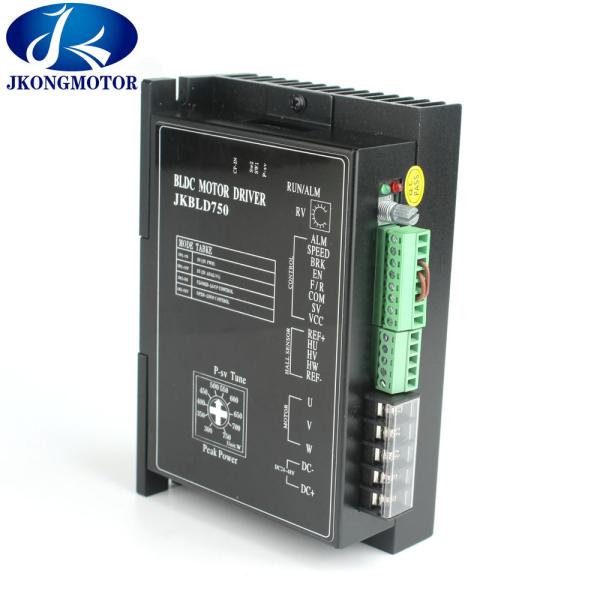

JKBLD750 Photos:

JKBLD750 3 Phase BLDC Motor Driver +18V~50VDC 5A For 750W BLDC MotorJKBLD750 3 Phase BLDC Motor Driver +18V~50VDC 5A For 750W BLDC Motor

Speed Adjustment Instruction:
Motor Speed Adjusted By The Internal Potentiometer RV:
SW1/ Off (Factory setting)
Motor Speed Adjusted By Analog DC 0V~+5V Input:
SW1/ Off (Factory setting) set J1 (internal) as
(user Setting)
RV—Turn Off
Motor Speed Adjusted By Analog DC 0V~+10V Input:
SW1/ Off (Factory setting) set J1 (internal) as
(user Setting)
RV—Turn Off
Motor Speed Adjusted By Pulse Rate Input:
Pulse rate: 0K—3KHZ Speed linear modulation
Pulse amplitude: 5V
Pulse duty ratio: 50%
SW1/ On (User setting)
RV—Turn Off
J7 (Internal)/ Switch on with the jumper cap on J1 (User setting)
Motor Speed Quick Response Setting:
SW2/ On ( User setting): PID closed loop--quick speed response
SW2/Off (Factory setting): Open loop--Normal speed response
Motor Speed Signal Output:
Connecting SPEED and COM to get pulse output F=N*P/60
F—Pulse output frequency
P—Pole number of BLDC motor
Drive Alarm Output:
When drive alarm, it will break over with the port of COM and be low
level. The drive stop to work and alarm light run.
Lead Wire Connection: Take care of the sequence of U,V,W
Our Services:

We aslo supply Stepper motor Kits, linear stepper motor, Dc motor, Brake stepper motor, Stepper motor with Encoder, Flexible Coupling, Pully, Power supply, Breakout Board and so on..

Warranty:

  • We offer one year warranty.
  • Within the warranty period, if your item has any problems when you use it, please send us an e-mail with photos or video to show the problem.
  • The replacement of the products for free are considerable due to it's own defects during warranty period.
  • JKBLD750 3 Phase BLDC Motor Driver +18V~50VDC 5A For 750W BLDC MotorJKBLD750 3 Phase BLDC Motor Driver +18V~50VDC 5A For 750W BLDC Motor
