Max IL 5.0dB DWDM Mux Demux 40Ch AAWG ABS Box For 5G Front Haul / Datacenter
Max IL 5.0dB DWDM Mux Demux 40Ch AAWG ABS Box For 5G Front Haul / Datacenter
Max IL 5.0dB DWDM Mux Demux 40Ch AAWG ABS Box For 5G Front Haul / Datacenter
Max IL 5.0dB DWDM Mux Demux 40Ch AAWG ABS Box For 5G Front Haul / Datacenter
Max IL 5.0dB DWDM Mux Demux 40Ch AAWG ABS Box For 5G Front Haul / Datacenter
Max IL 5.0dB DWDM Mux Demux 40Ch AAWG ABS Box For 5G Front Haul / Datacenter
Specifications
Brand Name :
J&K
Model Number :
AWG
Certification :
UL; SGS; ROHS
Place of Origin :
SHENZHEN,CHINA
MOQ :
5PCS
Price :
Negotiation
Payment Terms :
L/C, T/T
Delivery Time :
3~5days
Packaging Details :
Plastic Box
Product name :
MUX/DEMUX
Return Loss :
≥40dB
Opterating temperature (℃) :
-5~65℃
Storage temperature :
-40 ~+85°C
Polarization Dependent Loss(PDL) :
≤0.5dB
Application :
FTTH FTTB FTTX Network
Description

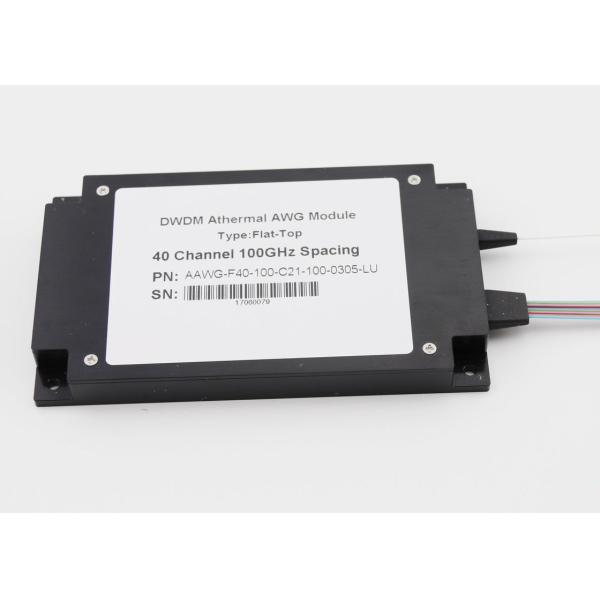

40Ch 100G AAWG ABS Box With LC/UPC Connectors Max IL 5.0dB

40Ch AWG ABS Box is used to make AWG 1U Rack usually.It's for WDM-PON,specially for 5G front haul,datacenter,backbone network etc.

We can offer good and stable type,Max IL 5.0dB.

Applications:

  • 5G Front Haul
  • WDM-PON
  • Backbone Network

Features:

  • Athermal design operates over operating temperature range
  • Compact size
  • High stability and reliability
  • Low insertion loss, high isolation increase system margin

Specifications:

Parameter Unit Value
Pass Band Type Flat-top Gaussian
Channel Spacing GHz 100
Channel Number 48/40
Wavelength Accuracy nm ±0.05
1dB Pass Band 1dB nm ≥0.38 0.2
3dB Pass Band 3dB nm ≥0.58 0.4
Insertion Loss1 dB ≤6.0 5.0
Ripple dB ≤0.5
Uniformity dB ≤1.5
Adjacent Crosstalk dB ≥23
Non-adjacent Crosstalk dB ≥29
Total Crosstalk dB ≥21
Polarization Dependent Loss(PDL) dB ≤0.5
PMD2 ps ≤0.5
Chromatic Dispersion2 ps/nm ±20
Return Loss dB ≥40
Fiber Input Port mm Φ0.9
Output Ribbon - -
Fan Out mm Φ0.9
Operation Temperature ℃ -5～+65
Storage Temperature ℃ -40～+85
Package mm 120×70×11

Max IL 5.0dB DWDM Mux Demux 40Ch AAWG ABS Box For 5G Front Haul / Datacenter

Max IL 5.0dB DWDM Mux Demux 40Ch AAWG ABS Box For 5G Front Haul / Datacenter
