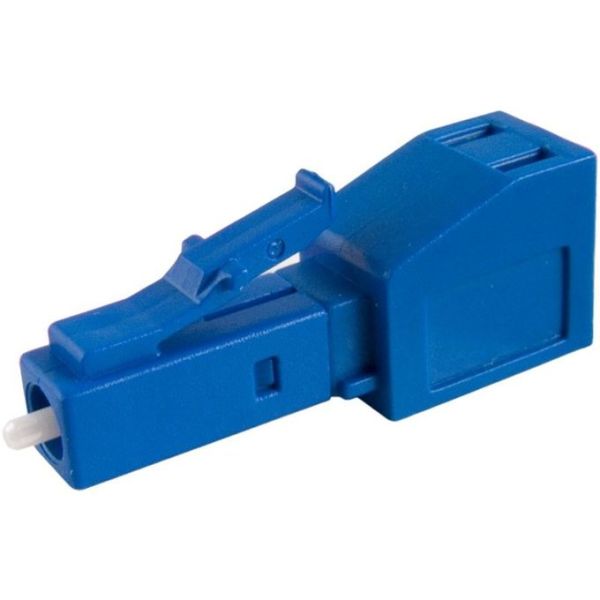

Blue LC 10DB Fiber Optic Attenuator Male To Female With Plastic / Metal Housing
Blue LC 10DB Fiber Optic Attenuator Male To Female With Plastic / Metal Housing
Blue LC 10DB Fiber Optic Attenuator Male To Female With Plastic / Metal Housing
Blue LC 10DB Fiber Optic Attenuator Male To Female With Plastic / Metal Housing
Specifications
Brand Name :
J&K
Model Number :
LC/UPC Attenuator
Certification :
ISO9001:2008
Place of Origin :
SHENZHEN,CHINA
MOQ :
50PCS
Price :
Negotiation
Payment Terms :
L/C, T/T
Delivery Time :
3~5days
Packaging Details :
PE bag
Product name :
Fiber Attenuator
Material :
Metal,Plastic
Attenuation level range :
0~30dB
Durability :
≤0.20dB typical change,1000 mating
Operating Temperature :
-20ºC to +70ºC
Storage Temperature :
-40ºC to +85ºC
Description

0 - 30db LC / Upc Single Mode Multimode Male to Female Fiber Optic Attenuator

Features

  • High quality ceramic ferrule
  • Excellent IL and high return loss
  • Good exchangeability and durability
  • High temperature stability
  • All parts compliant with ROHS
  • Aompliant with Telcordia-GR-910-CORE.


Applications

  • Active device termination
  • Test equipment
  • Passive optical fiber network
  • Data processing network
  • Telecommunication network
  • CATV, LAN, WAN


Specifications

ITEM Parameter
Single-mode Multi-mode
Test wavelength 1310nm, 1550nm 850nm
Return Loss UPC≥50.0dB,APC≥60.0dB ≥35.0dB
Bandwidth 1250~1650nm
Insertion Loss range 0~30dB
Attenuation tolerance value 0~5dB,±0.5dB
5~30dB,±10%
Repeatability ≤0.10dB
Interchangeability ≤0.20dB
Durability ≤0.20dB typical change,1000 mating
Optical power endurance ≤200mW
Operating Temperature -20ºC to +70ºC
Storage Temperature -40ºC to +85ºC

Advantages


Bellcore compliant
Wavelenght Independent
Durability(well over 100nw)
Simplex and reliable structure
Environmentally stable

Blue LC 10DB Fiber Optic Attenuator Male To Female With Plastic / Metal HousingBlue LC 10DB Fiber Optic Attenuator Male To Female With Plastic / Metal Housing
