Large Scale Vertical CNC Bar Bending Machine High Speed For Steel Bar Processing
Large Scale Vertical CNC Bar Bending Machine High Speed For Steel Bar Processing
Specifications
Brand Name :
JIUTIAN
Model Number :
Y-2L32
Certification :
CE,ISO9000
Place of Origin :
CHENGDU CITY
Payment Terms :
T/T
Delivery Time :
14 Work Days
MOQ :
1PCS
Supply Ability :
500pcs/month
Packaging Details :
Wooden Package
Model :
Y-2L32
Rated Power :
19KW
Bending Diameter :
12-32MM
Bending Direction :
Bi-Direction
Dimension :
12000*1780*1590MM
Description

Product Introduction
1.This bending gearbox has been developed independently. It has a compact structure and high torque transmission efficiency. The transmission gear is made of 20CrMnTi steel and has been heat-treated by professionals. We guarantee it for 10 years.
2. It has an Italian servo motor and system, which makes it more reliable and durable.
3. It can be bent in both directions, has a compact head and is equipped with different types of bending moulds. It also has a wide range of bending reinforcements.
4. The side shaft is used to find the right place for the steel bar, which replaced the old trolley device. This is easier and safer.

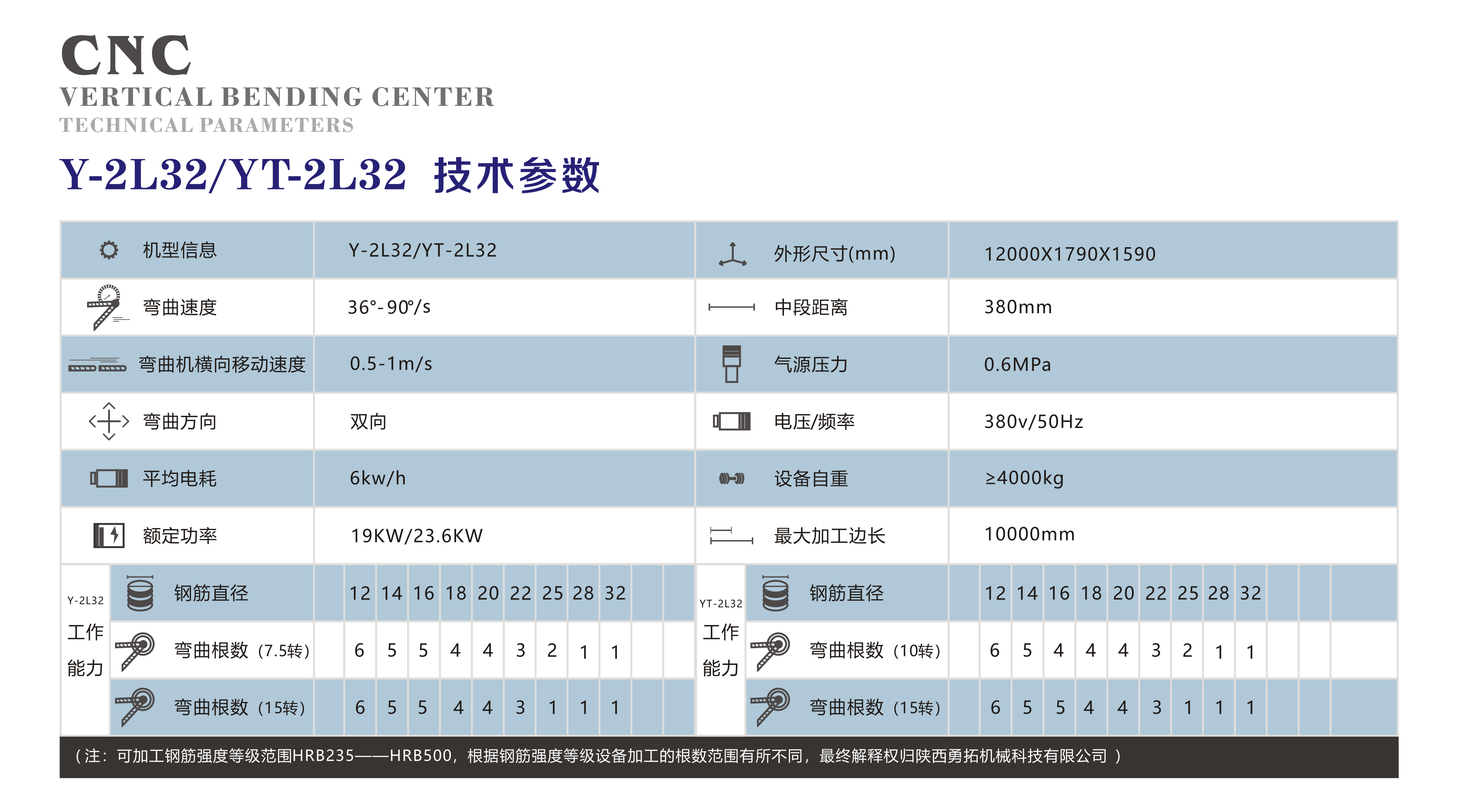

Product Parameter

Large Scale Vertical Rebar Bender Y-2L32

Rebar Diameter

12 14 16 18 20 22 25 28 32

Rebar Number

6 5 5 4 4 3 2 1 1

Bending Speed

36-90degree/S

Lateral Move Speed

0.5-1M/S

Bending Direction

Bi-Direction

Average Consumption

6KW/H

Rated Power

19KW

Dimension

12000*1780*1590MM

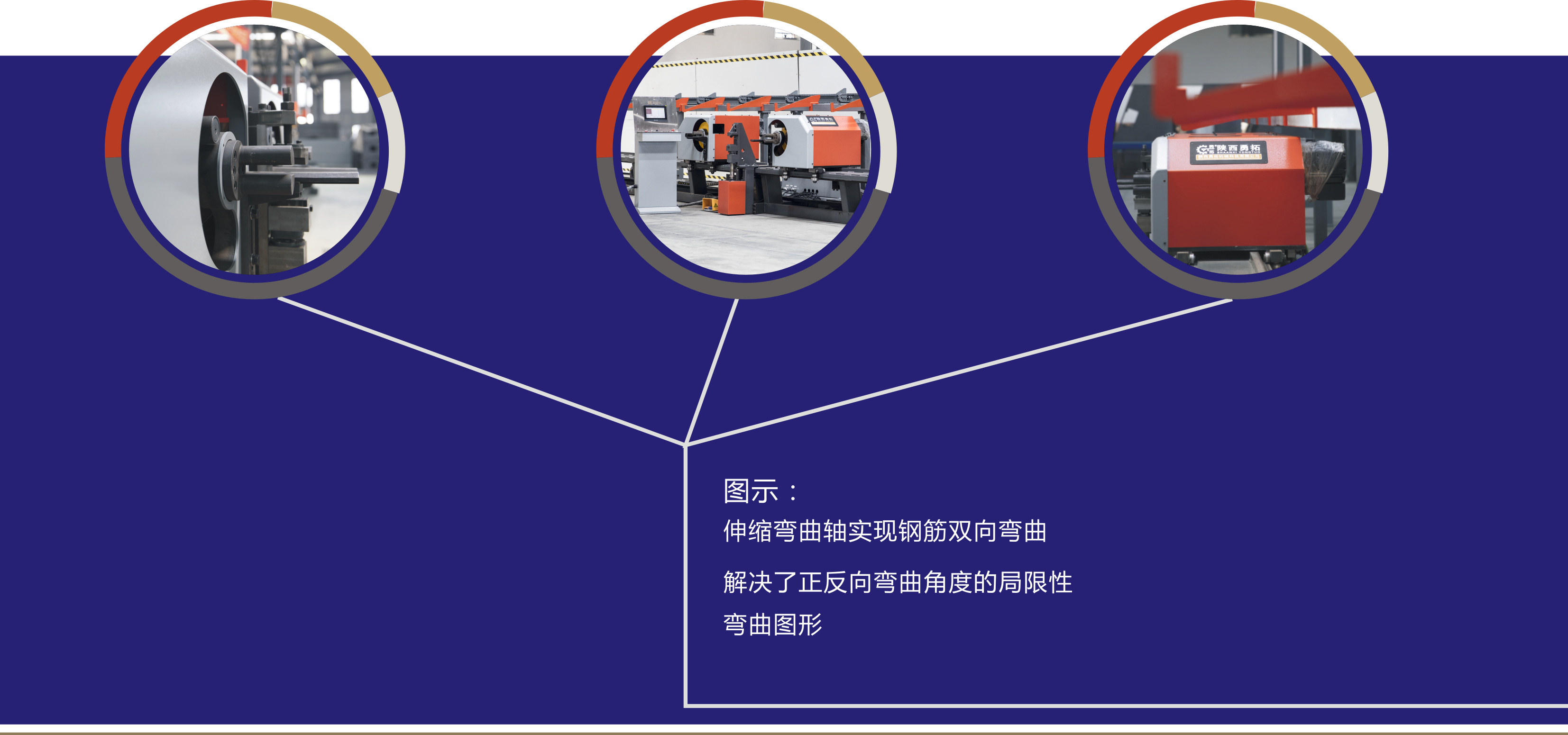

Product Details

Large Scale Vertical CNC Bar Bending Machine High Speed For Steel Bar Processing

Large Scale Vertical CNC Bar Bending Machine High Speed For Steel Bar Processing

FAQ:
1.What is the delivery time for the machine?
30 days for the CNC rebar bending centre.
2. What is the warranty period for the CNC rebar bending centre?
We can provide a one-year warranty for the CNC rebar bending centre.
3. What kind of packaging will you provide?
Regarding the CNC stirrup bender, we will wrap the machine in film, as it is too big. But don’t worry, it won’t break.
4. What are your payment terms?
We accept a 30% T/T deposit and the remaining 70% T/T before delivery from the factory.

Factory Show

Large Scale Vertical CNC Bar Bending Machine High Speed For Steel Bar Processing

Large Scale Vertical CNC Bar Bending Machine High Speed For Steel Bar Processing
