Automatic Rebar Bending Machine CNC YT-12S
Automatic Rebar Bending Machine CNC YT-12S
Automatic Rebar Bending Machine CNC YT-12S
Automatic Rebar Bending Machine CNC YT-12S
Automatic Rebar Bending Machine CNC YT-12S
Automatic Rebar Bending Machine CNC YT-12S
Automatic Rebar Bending Machine CNC YT-12S
Automatic Rebar Bending Machine CNC YT-12S
Specifications
Brand Name :
JIUTIAN
Model Number :
YT-12S
Certification :
CE,ISO9000
Payment Terms :
T/T
Delivery Time :
14 Work Days
Place of Origin :
CHENGDU
MOQ :
1PCS
Supply Ability :
500pcs/month
Packaging Details :
Wooden Package
Model :
YT-12S
Rated Power :
29.5KW
Single Wire :
6-12MM
Double Wire :
6-10MM
Reverse Feeding System :
YES
Condition :
New
Automation :
Automatic
Description

Product Introduction

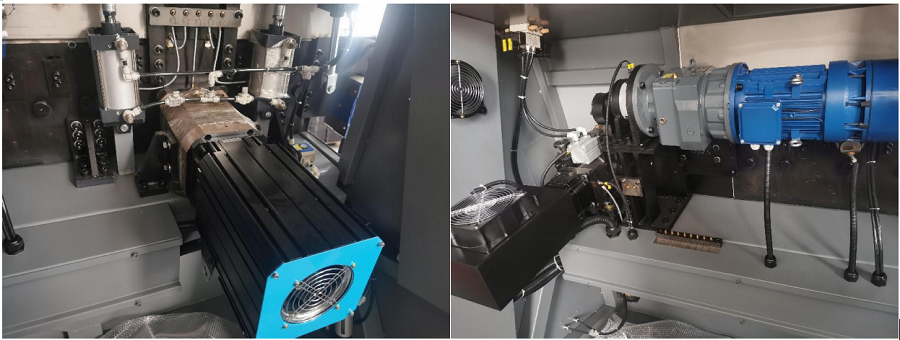

1. The cutting motor uses a servo motor instead of a brake motor, so there is no need to worry about damage to the brake or a short working life.
2. The encoder and sensor use the IFM (Germany) brand, and we offer a 5-year warranty.
3. Reverse feeding system for making plate stirrups.



Product Parameter

Rebar Bending Machine Cnc YT-12S

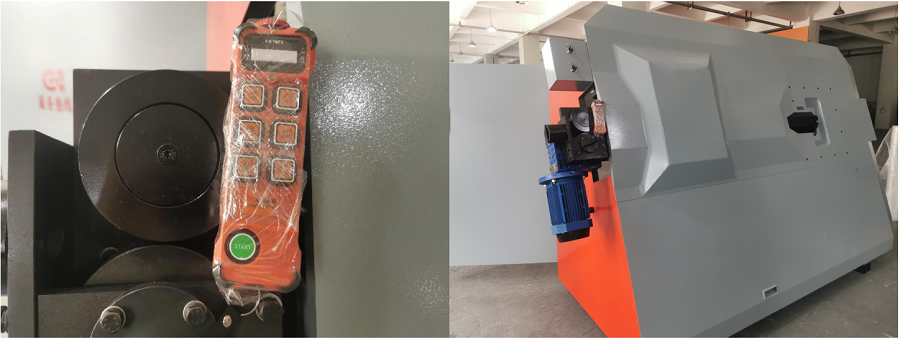

Remote Function

3 way control

Straightening System

S ARC STRAIGHT

Single Wire

6-12MM

Production Capacity

750PCS/Hour(single)

Double Wire

6-10MM

Production Capacity

1500PCS/Hour(double)

Bending Angle

1-180°

Bending Head Move

Up and down

Max Traction Speed

130M/MIN

Bending Direction

Bi-direction

Length Accuracy

±1MM

Machine Size

3000*1280*2000MM

Angle Accuracy

±1°

Collector Size

6600*810*1640MM

Main Machine Weight

2000KG

Rated Power

29.5KW

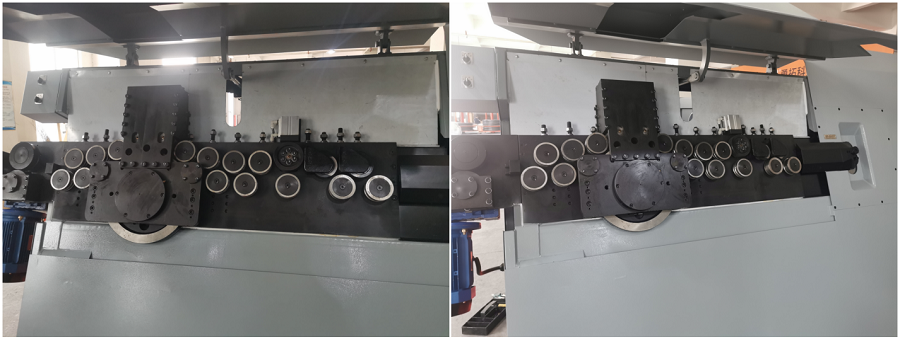

Product details:

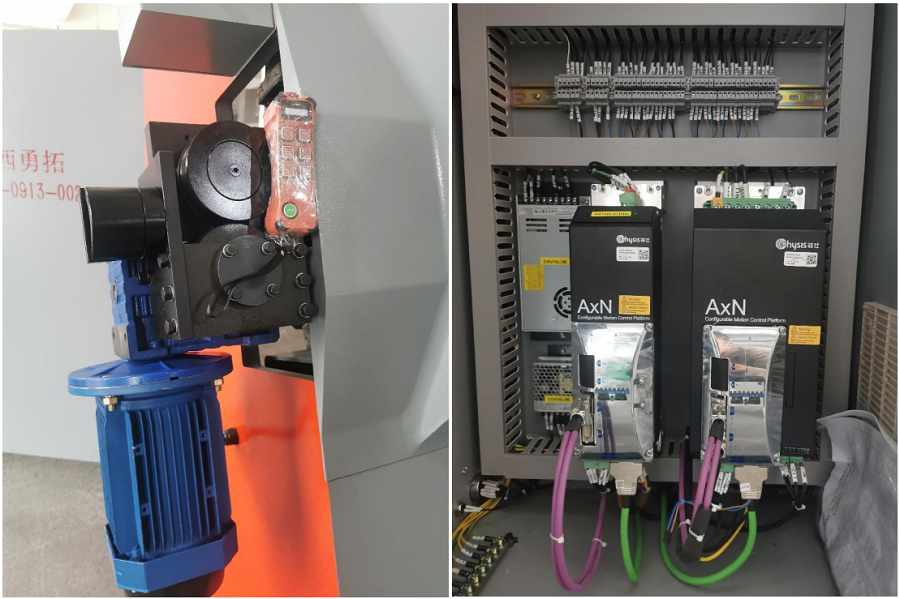

1. Equipped with an Italian servo motor and system for greater reliability and durability.

2. The bending head can move up and down to create a variety of shapes and produce perfect stirrups.

3. Reverse feeding system for making plate stirrups.

Automatic Rebar Bending Machine CNC YT-12S

Automatic Rebar Bending Machine CNC YT-12S

Automatic Rebar Bending Machine CNC YT-12S

Automatic Rebar Bending Machine CNC YT-12S

FAQ

1. What spare parts should I buy along with the CNC stirrup bender?

We have put blades and wheels, etc, quick-wear spare parts along with the machine, no need to buy spare parts at first.

2. What's the difference between YT-12 and YT-12S

Compared to YT-12, YT12S havea reverse feeding function, which can make plate stirrups, especially suitable for highway construction.

3.YT-12S suit for what kind of steel bar?

YT-12S can only be used for coiled steel bar; if you want to use with 12m straight steel bar,you can choose our model YT-20.

4.YT-12S, what shape can it make?

YT-12S can make more than 500 shapes, such as circles,triangle,square shape,especially plate stirrups
