Professional LAUNCH ES200 EV Insulation Resistance Tester For Accurate Leakage Current Detection
Professional LAUNCH ES200 EV Insulation Resistance Tester For Accurate Leakage Current Detection
Professional LAUNCH ES200 EV Insulation Resistance Tester For Accurate Leakage Current Detection
Professional LAUNCH ES200 EV Insulation Resistance Tester For Accurate Leakage Current Detection
Professional LAUNCH ES200 EV Insulation Resistance Tester For Accurate Leakage Current Detection
Professional LAUNCH ES200 EV Insulation Resistance Tester For Accurate Leakage Current Detection
Professional LAUNCH ES200 EV Insulation Resistance Tester For Accurate Leakage Current Detection
Professional LAUNCH ES200 EV Insulation Resistance Tester For Accurate Leakage Current Detection
Specifications
Brand Name :
Launch
Model Number :
LAUNCH ES200 EV Insulation Resistance Tester
Place of Origin :
CHINA
MOQ :
1
Price :
$559
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000
Delivery Time :
1 work day
Packaging Details :
3.0KG
Model Name :
LAUNCH ES200 EV Insulation Resistance Tester
Origin :
Mainland China
Quality :
Superior
Description

Product Description

Insulation resistance meters are commonly known as megohm meters, or shake meters, high resistance meters, insulation resistance testers, etc. It is reflected by insulation resistance. The product insulation resistance which is measured refers to the insulation resistance between the live part and the exposed non-live metal part(case). Using an insulation tester for measurement can effectively protect the safety of maintenance personnel.

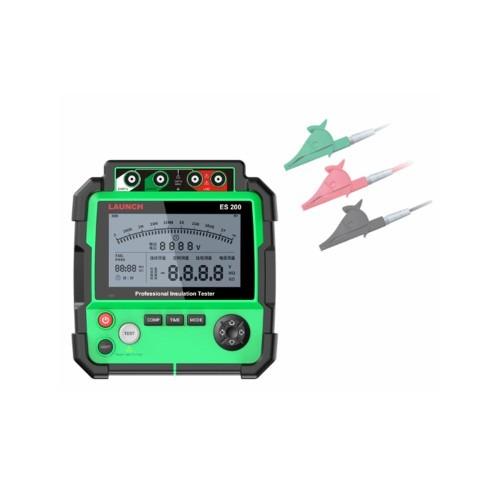

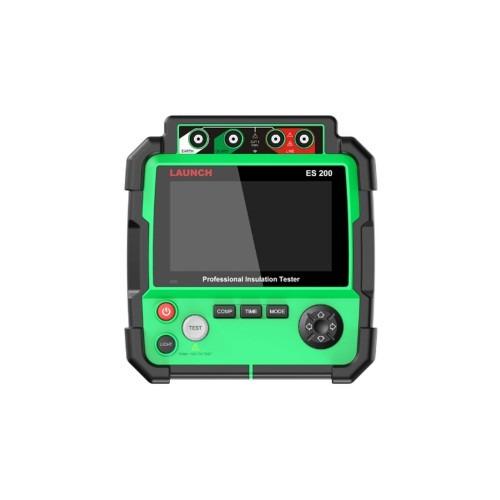

LAUNCH ES200 EV Insulation Resistance Tester
Insulation resistance meters are commonly known as megohm meters, or shake meters, high resistance meters, insulation resistance testers, etc. It is reflected by insulation resistance. The product insulation resistance which is measured refers to the insulation resistance between the live part and the exposed non-live metal part(case). Using an insulation tester for measurement can effectively protect the safety of maintenance personnel.

Product Features:
1. ES200 s capable of measuring insulation resistance, and also innovatively increases the voltage measurement function.
2. Equipped with standard resistance, in the comparison measurement mode, the measured resistance value is compared with the standard resistance to ensure the measurement accuracy.
3. Three measurement modes: timing measurement, comparison measurement, continuous measurement and omnidirectional measurement.

Product Specification:
ES200 Specification
Battery: 3150mAh
Display: 5''
Working Temperature: 0~50℃
Dimensions: 180*174*65.5(mm)
Weight: 1.7kg
AC and DC Voltage Test Performance Parameters
Voltage Type DC Voltage AC Voltage
Measuring Range ±30~±600V 30~600V(50/60Hz)
Resolution 1V 1V
Measurement Accuracy ±3% ±3%
Insulation Resistance Test Performance Parameters
Test Voltage: 500V 1000V 2000V 5000V
Measuring Range: 0.0MΩ～20GΩ 0.0MΩ～40GΩ 0.0MΩ～100GΩ 0.0MΩ～1000GΩ
Open Circuit Voltage: DC500V(0～20%) DC1000V(0～20%) DC2000V(0～20%) DC5000V(0～20%)
Measurement Accuracy: 0.0～99.9MΩ: ±(3%+5) 0.0～99.9MΩ: ±(3%+5) 0.0～99.9MΩ: ±(3%+5) 0.0～99.9MΩ: ±(3%+5)
100MΩ～9.99GΩ: ±(5%+5) 100MΩ～9.99GΩ: ±(5%+5) 100MΩ～9.99GΩ: ±(5%+5) 100MΩ～9.99GΩ: ±(5%+5)
10.0GΩ～20.0GΩ: ±(10%+5) 10.0GΩ～40.0GΩ: ±(10%+5) 10.0GΩ～100GΩ: ±(10%+5) 10.0GΩ～99.9G: ±Ω(10%+5)
Short Circuit Current: <3.0mA

Package includes:
1pc x LAUNCH ES200 EV Insulation Resistance Tester
