OBDSTAR P003 KIT Bench/Boot Adapter for Reading ECU CS PIN Working With OBDSTAR X300 DP/ X300 DP PLUS/ DC706/ X300 PRO4/
OBDSTAR P003 KIT Bench/Boot Adapter for Reading ECU CS PIN Working With OBDSTAR X300 DP/ X300 DP PLUS/ DC706/ X300 PRO4/
Specifications
Brand Name :
JIUTECH-Vicky
Model Number :
OBDSTAR P003 KIT
MOQ :
1
Price :
125
Payment Terms :
T/T, Western Union, MoneyGram, paypal
Supply Ability :
in stock
Delivery Time :
1-3days
Packaging Details :
0.2KG
name :
OBDSTAR P003 KIT
model :
Bench/Boot Adapter for Reading ECU CS PIN Working With OBDSTAR X300 DP/ X300 DP PLUS/ DC706/ X300 PRO4/
Description
OBDSTAR P003 KIT P003 Adapter with ECU Bench Cables Working With OBDSTAR X300 DP/ X300 DP PLUS/ X300 PRO4/ Key Master DP

P003 Kit, working with OBDSTAR IMMO series tablets, supports reading and writing ECU eeprom & flash data and caculating IMMO data of ME17XX, MED17XX, EDC17XX & CONTINENTAL PCR2.1 for VW/Skoda/Audi/Seat, Bentley, Peugeot/Citroen/DS, Lamborghini, Porsche, Mahindra etc..

Can be working with OBDSTAR IMMO series tablets:
OBDSTAR X300DP Plus Key Master DP Plus
X300 Pro4 Key Master 5
OBDSTAR DC706 ECU TCU Clone Tool

Notice:
1. New version of OBDSTAR P003 KIT ( SE156 ) can work with DC706/ MS80
2. Old version ( SE156-B ) can work with X300 DP/ X300 DP PLUS/ X300 PRO4/ Key Master DP

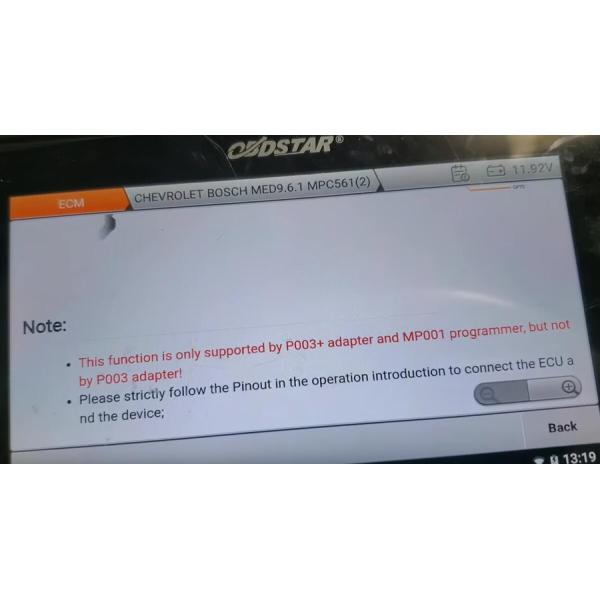

3. Some functions are only supported by P003+ adapter (SE156-C)and MP001 programmer. For DC706, please buy P003+ Kit .

OBDSTAR P003 KIT Bench/Boot Adapter for Reading ECU CS PIN Working With OBDSTAR X300 DP/ X300 DP PLUS/ DC706/ X300 PRO4/
OBDSTAR P003 KIT Bench/Boot Adapter for Reading ECU CS PIN Working With OBDSTAR X300 DP/ X300 DP PLUS/ DC706/ X300 PRO4/
4. Contact us. Support only buy P003+ Kit hardware, change the New version of OBDSTAR P003 KIT to P003+ Kit for DC706, ECU BENCH jumper are same.

OBDSTAR P003 Kit Highlights:
1.Portable Design
2.Easy Operation
3.High Performance

Functions:

1. Continental PCR 2.1 reading CS, PinCode, MAC valueP003 KIT
2. MED17.4.4 reading eeprom , PinCodeP003 KIT
3. EDC17C60 reading eeprom , PinCodeP003 KIT
4. MD1CS018 reading eeprom, PinCodeP003 KIT
5. MED17XX/EDC17XX reading eeprom, flash, CS, PinCode, MAC value
6. ME17XX reading & writing eeprom, flash
7. T87A, 6HP reading & writing TCM eeprom, flash

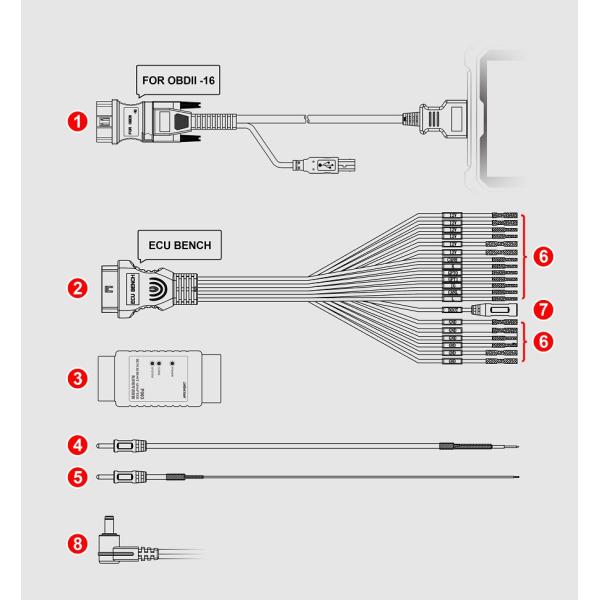

OBDSTAR P003 Kit Overview:

1.Diag cable OBDconnector(male)
2.Connect P003 connector(female)
3. P003 adapter
4.Boot jumper(spring needle)
5.Boot jumper(welding)
6.ECU pin connector
7. ECU boot connector
8.12V power

OBDSTAR P003 KIT Bench/Boot Adapter for Reading ECU CS PIN Working With OBDSTAR X300 DP/ X300 DP PLUS/ DC706/ X300 PRO4/

Connecting Methods:

BENCH MODE

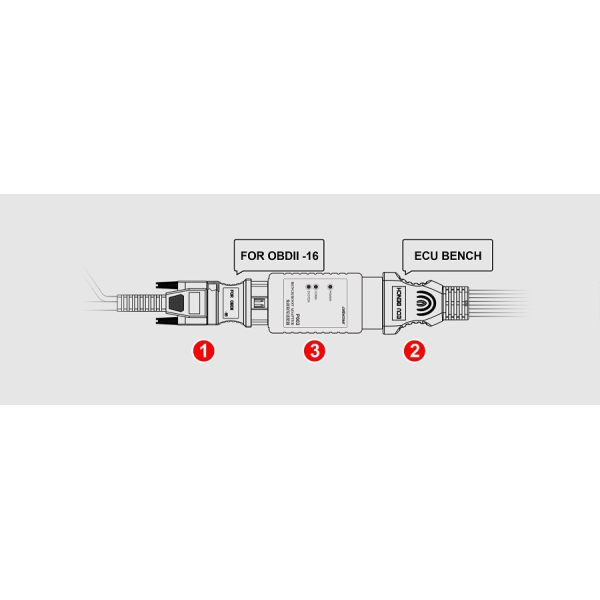

Step 1:Connect 1,2,3 together as pic below;
OBDSTAR P003 KIT Bench/Boot Adapter for Reading ECU CS PIN Working With OBDSTAR X300 DP/ X300 DP PLUS/ DC706/ X300 PRO4/
Step2:connect the ECU pin connector to the ECU according to the wiring diagram;
Step3:connect 12V power with diagnostic device;
Step4: read data on diagnostic device.

BOOT MODE

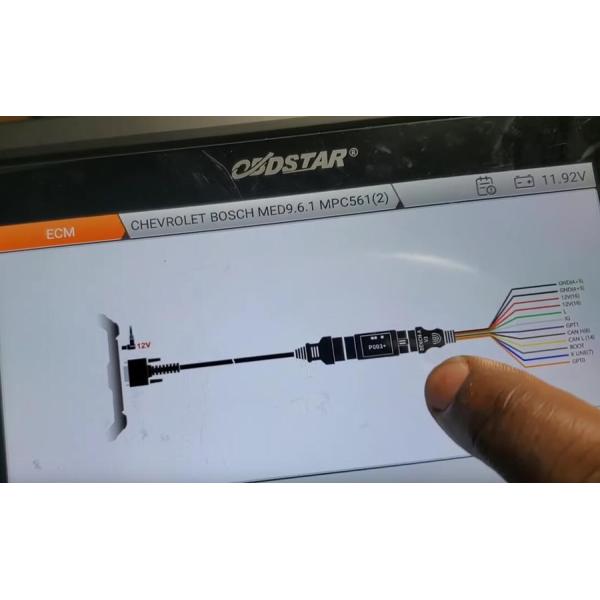

Step 1: Connect 1, 2, 3 together as pic below;
OBDSTAR P003 KIT Bench/Boot Adapter for Reading ECU CS PIN Working With OBDSTAR X300 DP/ X300 DP PLUS/ DC706/ X300 PRO4/
Step2:connect the ECU pin connector to the ECU according to the wiring diagram;
Step3:connect 7 with 4 or 5 and connect it to ECU;
Step4:connect 12V power with diagnostic device;
Step5: read data on diagnostic device.

OBDSTAR P003 Kit Function
For reading ECU data, CS, Pincode etc., including Audi, Citroen, DS, Mahindra, Peugeot, Skoda, SEAT, Volkswagen etc.. More models are in development...

OBDSTAR P003 Kit Supported ECU List
Supports ECU including EDC17U01(TC1766), MED17.5(TC1766), MED17.5.1(TC1766), MED17.5.20(TC1766), MED17.5.5(TC1766), MED17.5.5 HW2(TC1766), EDC17C46(TC1767), ME17.5.6(TC1767), ME17.5.20(TC1767), MED17.5.2(TC1767), MED17.5.5(TC1767), MED17.5.5
HW2(TC1767), MED17.5.21(TC1782), MED17.5.25(TC1782), EDC17C54(TC1797), EDC17C64(TC1797), EDC17CP44(TC1797), EDC17CP44 MS(TC1797), ME17.1.1(TC1797), ME17.1.6(TC1797), MED17.1.1(TC1797), MED17.1.1 MS(TC1797), MED17.1.6(TC1797), MED17.4.4(TC1793), MD1CS018(Euro 6/TC298TP), MG1CS042(Euro 6/TC298TP), MG1CS003(Euro6/TC298TP) etc.

Specifcations:
Voltage 12V
Weight 100g
Dimension 113*75*31mm

OBDSTAR P003 KIT Package:

1. P003 adapter
2. ECU BENCH cables
