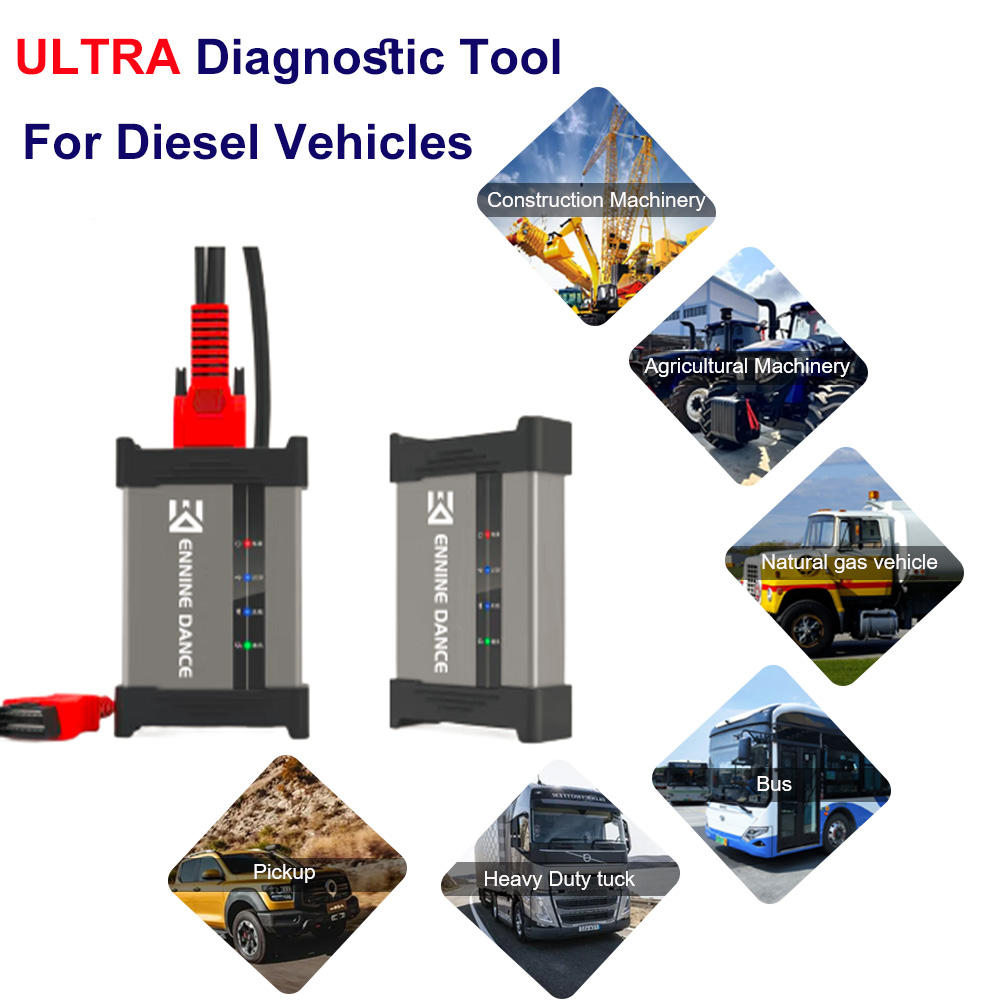

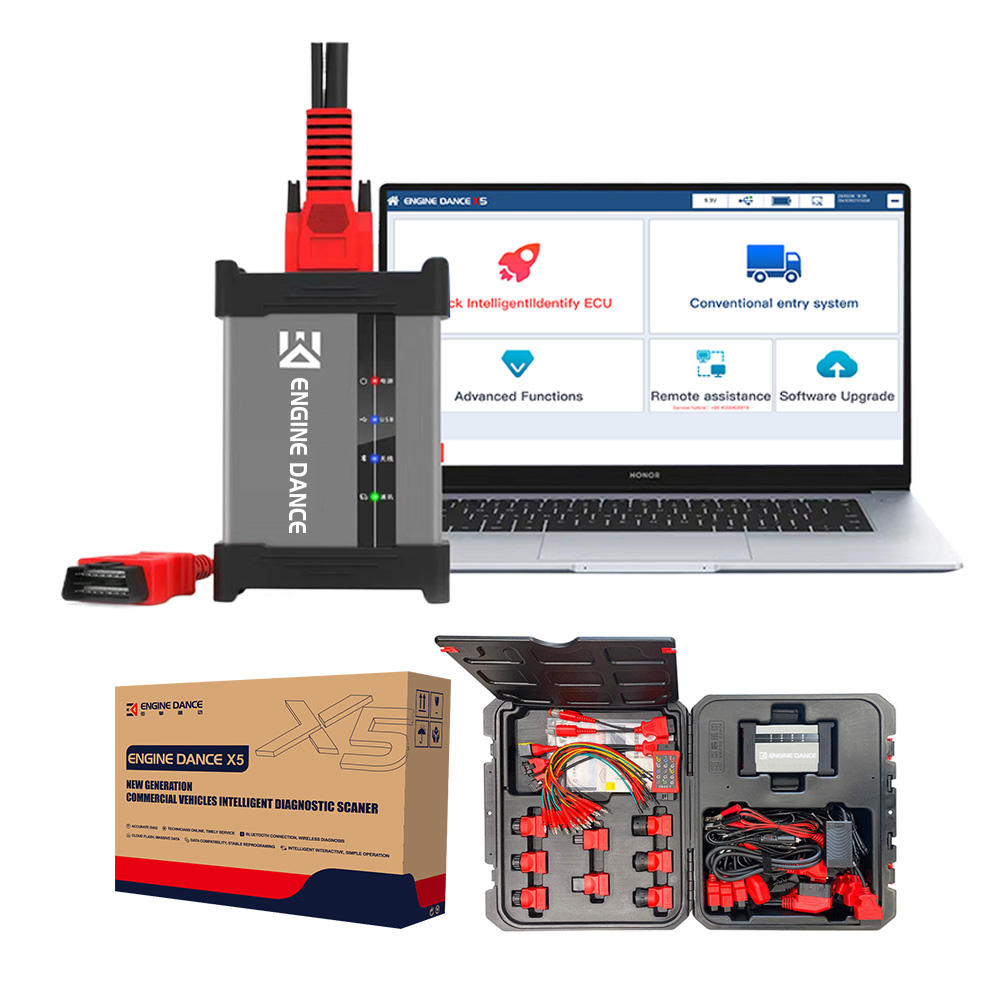

EngineDance X5 2-in-1 ECU Programming &Truck Diagnostics

EngineDance X5 is a one-step solution for heavy-duty scanner. It supports Chinese brands, Japanese brands, international brands of diesel & natural gas & new energy vehicles.

• Aviation technology is as solid as a rock
  Hardware shell adopts aviation alloy laser engraving process, anti-fall, even if the car pressure can be easily dealt with.
• Dual mode communication convenience - speed
  Wireless Bluetooth and high-speed USB-typc C dual-mode communication, balancing convenience and speed.
• Two year warranty and worry free after-sales service
  Two years of extended warranty period ensures worry free use of the product. After 2 years, the Upgrade cost: $300 per year.
• Currently supports Chinese, English, Russian, and Vietnamese.
• Supported Models: Light trucks, heavy trucks, buses, agricultural machinery, construction machinery and cover over 98% of Chinese vehicle models.
• Supported ECUs: Bo-sch, Denso, Cum-mins, De-lphi, Continental, Trw, Ectek ...
• Supported Engines: Cum-mins, Perkins, Cater-pillar, Weichai, Yuchai, Faw, Yunnei, Doosan, Isuzu, Komatsu, Yanmar, Deutz, YTO, Econtrols, WoodWard, Mercury, Quanchai, SDEC, Greatwall, Changchai, DCD, Sida, XinChai ..

• Bo-sch MD1 Read & Flash(support partly Encrypted ECU)
• EDC17 Encrypted Series Read/Flash
• International Vehicle Diagnosis/Flash
• Compatible with Various Diesel/Natural Gas
• Transmission Diagnosis/Self-Learning/Flash
• BCM/ Instrument Diagnosis/Calibration/Flash
• Engineering Machinery Diagnosis/Read/Flash
• Agricultural Machinery Diagnosis/Calibration/Flash
• Support Various Deep Code Clearing & fault Light Turn Off
• Urea Induction Reset
• Remotely Unlock encrypted MD1 ECU (not all, partly, contact us to get ECU list)

Powerful and Stable ECU re-programming Function

• Covering most ECU Flash
  (FAW/CNHTC/SINOTRUK/SITRAK/DongFeng/Foton/CAMC/SHACMAN/SFH/JMC/JAC/XCMG/SANY/CHENGLONG)

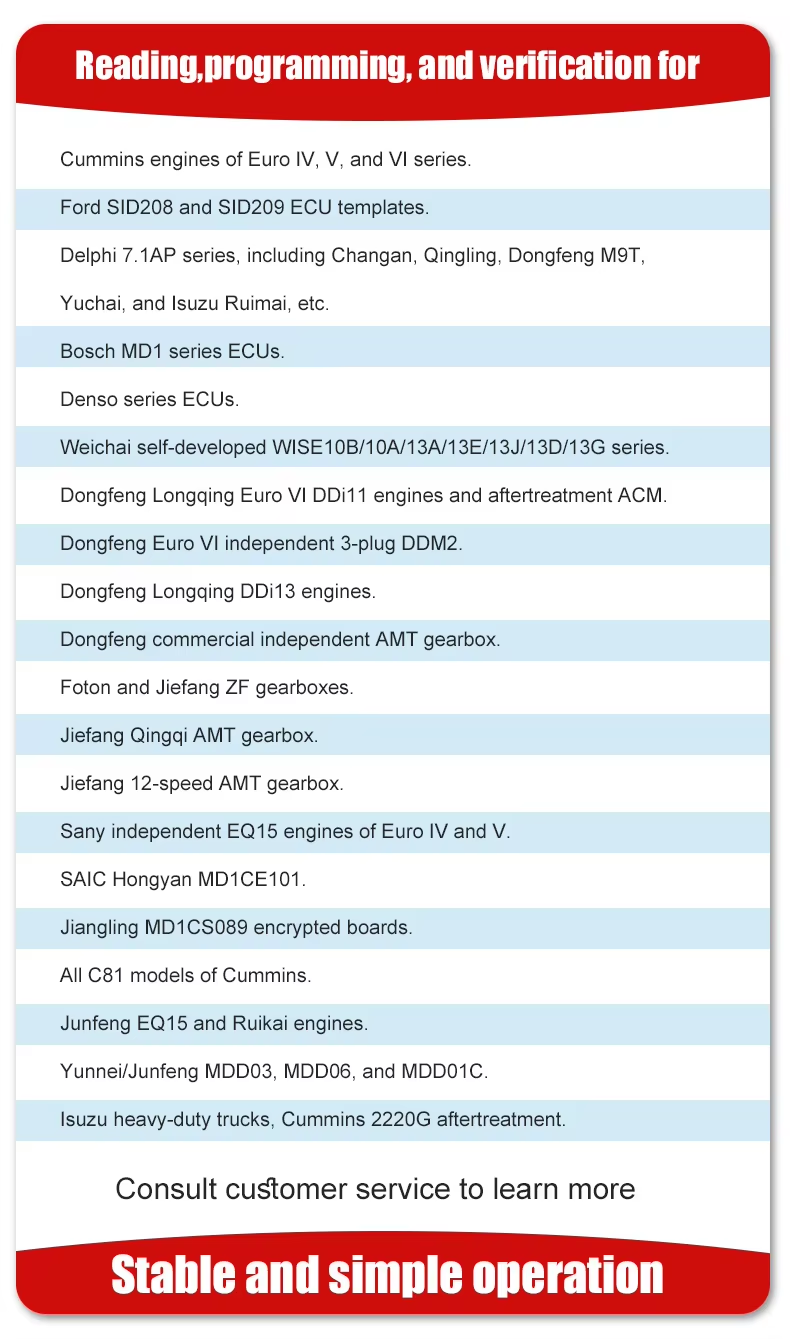

  Note: Engine Dance X5 Supports reading and writing of over 300 ECU models of Chinese commercial vehicles,
  covering almost all electronic control systems of commercial vehicles in China, not listed one by one.
• Gas flash, Woodward OH6, OH2.0, Bo-sch EGC4 flash;
• Post processing DCU flash
• Transmission module flash, retarder flash
• Stable flashing, simple operation, using dual verification technology, stable flashing and extremely
  low probability of flashing death; Easy to operate and get started with
• VCU/CBCU/BCM/Instrument writing (FAW, CNHTC, DF, Foton)

Advanced features, professional and comprehensive

• DPF regeneration with comprehensive coverage
• Calibration
• SCR detection
• NOX Sensor detection
• VECU maximum speed adjustment calibration
• Urea injection temperature setting
• CAN Bus, Instrument drive.
• Read OBD pin voltage

Remote assistance and timely service

• Remote assistance, one click start, the distance between you and engineers and teachers is only one button. Engineers or teachers can remotely help you Flash Diag and calibration, which is simple and efficient. You no longer have to worry about not being able to operate the computer or flash.

One click software upgrade

• Software update, one click software update, without complex operations, only one click, the software automatically updates to the latest version

International vehicle brand diagnosis and re-programming

• Diagnosis: Vo-lvo, Man, Scania, Mercedes-Benz, Daf, Hino, Fuso, Ive-co, UD, Cater-pillar, Hyundai, Kia, Doosan, Isuzu, Toyota, Ford, Jeep, Land Rover, VW ...

Scania

• Scania EMS/EDC S6 250Kbps (MPC555/556)
• Scania EMS S6 500Kbps (MPC555/556)
• Scania EMS S8 250Kbps (MPC5566)
• Scania EMS S8/EMD1 500Kbps (MPC5566)
• Scania EMS S8/EMD1 250Kbps (MPC5566) –Bam
• Scania EMS S8/EMD1 500Kbps (MPC5566) –Bam
• Reading, writing, checksum correction.

MAN

• MAN Bo-sch EDC7C32 [0281020067]-OBD/Bench
• MAN Bo-sch EDC17CV42 [0281020273, TC1797]- Bench
• MAN Bo-sch MD1CE100 TC299- Bench
• Reading, writing, checksum correction.
• Denso SH725XX/1N83M/ SH705X Bench
• 1N83M FLASH Reading, writing, checksum correction
• 1N83M EEPROM Reading, writing
• SH72543 FLASH Reading, writing, checksum correction
• SH72543 EEPROM Reading, writing
• SH7055 FLASH Reading, writing, checksum correction
• SH7055 EEPROM Reading, writing
• SH7058 FLASH Reading, writing, checksum correction
• SH7058 EEPROM Reading, writing
• SH7059 FLASH Reading, writing, checksum correction
• SH7059 EEPROM Reading, writing

Toyota/Lexus Gen 3

• R7F701202/R7F701216 P5-UDS
• LC300/LX500d 3.3TD P5-UDS (F33A-FTV/R7F701216)
• LC300/LX500d 3.3TD MCU #2 P5-UDS (F33A-FTV/R7F701216)
• LC150/Hiace/Hilux/Revo/Fortuner 2.4TD, 2.8TD P5-UDS (1GD-FTV/2GD-FTV/R7F701216)
• LC150/Hiace/Hilux/Revo/Fortuner 2.4TD, 2.8TD 6AT Gearbox P5-UDS (AC60F/R7F701201)
• Camry/ES/Rav4/UX 2.0L, 2.5L P5-UDS (M20A-FKS/A25A-FKS/R7F701202)
• Camry/ES/Rav4 2.5L 8AT Gearbox P5-UDS (UB80/R7F701201)
• Camry/ES/Rav4 2.5L HV P5-UDS (A25A-FXS/R7F701202) [Test]
• Corolla 2.0L P5-UDS (M20A-FKS/R7F701202) [Test]
• Highlander/Siena 2.5L HV P5-UDS (A25A-FXS/R7F701216) [Test]
• Yaris GR 1.6T P5-UDS (G16E-GTS/R7F701216) [Test] [RD/WR/CK]
• Reading, writing, checksum correction

Trucks Del-phi ETC3

• Reading and writing via OBD2 connector via CAN-bus of De-lphi ETC3 ECUs used in
  DAF, Kenworth, Peterbilt, Hyundai trucks.
• DAF/Industrial Del-phi ETC3
• Del-phi ETC3 REV A/B/C ECUs based on MCU N-XP MPC5566 with internal flash memory 3 Mb.
• Reading of map area and writing with checksum correction via CANbus via OBD2 or on the BENCH.
• REV 0 and REV H ECUs are not supported.

Hyundai Delp-hi ETC3

• De-lphi ETC3 ECUs based on MCU N-XP MPC5566 with internal flash memory 3 Mb.
• Reading of map area and writing with checksum correction via CANbus via OBD2 or on the BENCH.
• Trucks Del-phi DMCI CAN
• Module for reading and writing by CAN-bus D-elphi DMCI ECUs used in DAF and Hyundai trucks.
• ECU is based on MCU Motorola MPC561 with internal flash memory 2.0Mb.
• Allows to read and write calibration area through CAN-bus with checksumm correction on writing.
• DAF/Kenwroth Del-phi DMCI
• Hyundai Del-phi DMCI
• IVE-CO Light truck
• IVE-CO EDC17C69 Bench
• IVE-CO EDC17C49 Bench
• IVE-CO MD1CS069[Support Bench lock Ecu]
• IVE-CO MD1CS089 Bench
• IVE-CO DCU17PC42/PC43 Bench

Isuzu/Transtron

• ISUZU 4HK1/6HK1/4JJ1:SH7058
• ISUZU 6HK1XDIAG/4JJ1XDIAG M4S/L4S:SH72533
• ISUZU 6HK1/6WG1 M5.3/M5.2:SH72544/SH72546
• ISUZU-4HK1/6HK1/4JJ1 L5.2/L5.3/L5.4:SH72544/SH72546

Kia/Hyundai

• Modern/Kia heavy-duty truck engine Del-phi-ECU: DMCl (chip: MPC561)
• D6CF D-phi ETC3 Series MPC5566-OBD
• Kia/Hyundai Kefico/Denso 2.5L CRDI (SH72546) MB275700-58xx-OBD
• Kia/Hyundai Euro 6 (Denso SH72543)-Bench
• Kia/Hyundai DCM3.7AP
• Reading, writing, checksum correction.

Bo-sch MD1 Bootloader

• MD1CE100 AURIX SAK-TC299TP
• MD1CE108 ST-SPC5898
• MD1CS089 SAK-TC299TP
• MD1CS069 SAK-TC299TP
• MD1CC878/868 ST-SPC58XX
• Reading, writing, checksum corrections

Vo-lvo Truck

• Vo-lvo/Reault/Construction Machinery EMS2.0(MPC56X)-OBD
• Vo-lvo/Ren-ault/UD/MACK truck EMS2.2(MPC5554)-Bam
• Vo-lvo/Ren-ault/UD/MACK truck EMS2.2(MPC5554)- Bench
• Vo-lvo/Ren-ault/UD/MACK truck EMS2.3(MPC5674F)- Bench
• Vo-lvo/Ren-ault/UD/MACK truck EMS2.4(MPC5777C)- Bench
• Reading, writing, checksum correction.
• Ford Transit /Ranger, Land Rover Defender
• Land Rover Defender SID208- Bench/ Bam
• Ford Ranger SID209-OPEN
• Ford Transit SID208 OBD/Bench / Bam
• Ford Transit SID209 OBD/Open
• SID604 OBD writing, checksum
• Reading, writing, checksum correction.
• Toyota/Lexus/Scion/Hino Gen 2
• 76F0196/198/199/219 P5-CAN-bus
• 76F0199 GearBox P5-CAN-bus
• Reading, writing, checksum correction.

DEL-PHI

• Yuchai DCM3.2/DCM6.2AP/DCM6.24
• Yuchai DCM7.1AP/ DCM7.24
• Dongfeng M9T DCM7.1AP
• Great Wall/Haval DCM6.2AP
• HYCET Great Wall/ZhongXin/Changan Kaicene DCM7.1AP
• Great Wall/Haval DCM3.7AP
• Kia/Hyundai DCM3.7AP(SH725xx)
• DOOSAN/Bbcat/Kioti/McCormick DCM3.7AP
• SsangYong 2.0L XDI DCM3.7AP
• DOOSAN/Bob-cat/Kioti/McCormick (DCM3.7AP)
• GM/Opel/Chevrolet 2.0L, 2.2L CDTI (DCM3.7AP)
• JAC DCM6.2AP
• Qingling/Isuzu DCM6.2AP
• Qingling/Isuzu DCM7.1AP
• Yunnei DCM6.24
• Yunnei DCM7.24
• Changan DCM7.1AP
• OBD Reading, writing, checksum correction.
• DCM7.1AP/ DCM7.24 BENCH Reading, writing, checksum
• DCM 6.2AP open model SPC56X
• Bo-sch EDC
• DCU17CV51 TC1724 Bench (SAIC/JBC)
• DCU17HD01/DCU2.2 TC1766 (Hino, Cum-mins, Hyundai, CAT, CASE, Isuzu)
• VD1CC001 Euro 6(Chip: SPC574X, Hino. ISUZU Euro 6 models)
• DCU17PC42/PC43 Bench (IV-ECO, FOTON, HYUNDAI)
• EDC17CV44/54 OBD/Bench/Open
• EDC17C81 OBD/Bench/Open[Support Bench lock Ecu]
• EDC17C53 OBD/Bench/Open[Support Bench lock Ecu]
• EDC17C55/C63/C04 OBD/Bench/Open[Support Bench lock Ecu]
• EDC17CV41 OBD/Bench/Open(WeiChai, Ive-co,Doosan,CASE,New Holland, CLAAS)
• EDC17CV42 Bench MAN
• EDC7UC31 MPC561/562 OBD/Bench
• EDC7C1(lv-eco, Doosan, etc,series chip:MPC555)
• EDC7C4, EDC17CP15/CP52 Chip:MPC555 OBD
• EDC16UC40 MPC561/562 OBD/Bench
• EDC16C39 MPC561/562 OBD/Bench
• EDC17CP52 TC1797 Bench(Ivevo,Fuso)
• EDC17C69 TC1793 Bench IV-ECO
• EDC17C49 TC1797 Bench IVEC-O
• EGC4 TC1797 BGA Bench
• EDC17C83 TC1793 Bench ISUZU
• MEG17.9.1X, Chip:TC176211766/179211796 (Bench Mode)
• MEG17.9.2X, Chip:TC17241172817671178211784/1797 (Bench Mode)

Others

• Continental FAW 52E/91E SPC563X OBD/Open/checksum
• Continental Weichai WISE15/15C SPC564X OBD/Open/checksum
• Continental FAW 32F/36F OBD /checksum
• Econtrols LNG/CNG 3G/4G OBD Model
• Woodward LNG/CNG OBD Model/Recover
• ZF Transmission OBD writing/checksum
• ZF Retarder OBD writing
• WABCO ECAS Reading, writing
• WABCO ABS/EBS Reading, writing
• Knorr ECAS Reading, writing
• Knorr ABS/EBS Reading, writing
• VCU/CBCU/BCM/Instrument writing (FAW, CNHTC, DF, Foton,)
• Covering most ECU Flash
  (FAW/CNHTC/SINOTRUK/SITRAK/DongFeng/
  Foton/CAMC/SHACMAN/SFH/JMC/JAC/XCMG/
  SANY/CHENGLONG)

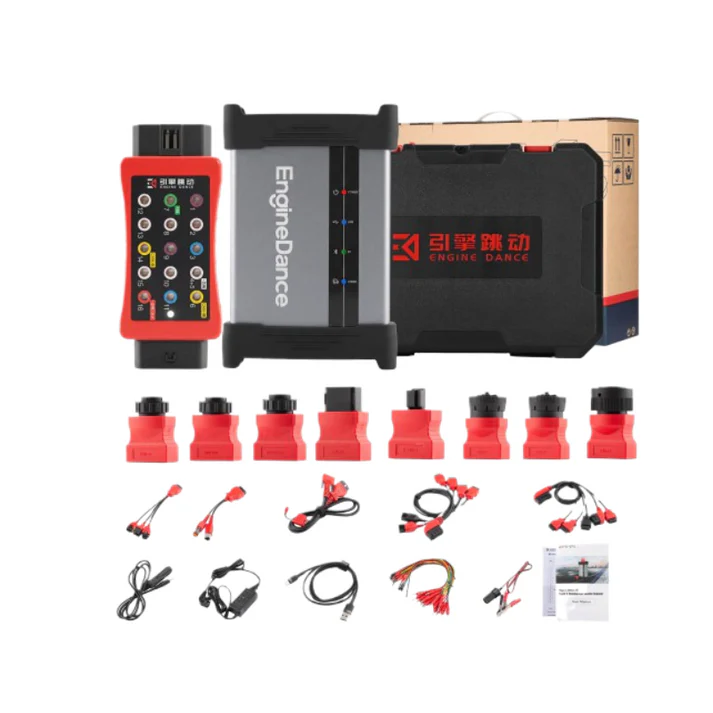

• 1pc x EngineDance X5 2-in-1 ECU Programming &Truck Diagnostics with X5 BOX Full Configuration
