Specifications
MOQ :
1
Checksum Processing :
High-speed automatic checksum correction engine
Protocol Support :
Ethernet, FlexRay, CAN Bus, K-Line, L-Line, J1850, J1708
Certification :
CE
Delivery Time :
1-3 working days for stock orders
Processor Performance :
7x increase over previous generation
Place of Origin :
Italy
Payment Terms :
T/T,Western Union,L/C,D/P,D/A
Supply Ability :
100
Packaging Details :
Original Alientech Packaging with Protective Foam Insert
Transfer Rate :
USB Full Speed - up to 10x faster than KESSv2
Brand Name :
Alientech
Model Number :
KESS V3
Enclosure Material :
Fiberglass composite
Price :
Please contact us for pricing
Onboard Modules :
GPS receiver, Accelerometer, Bluetooth, Wi-Fi
Description

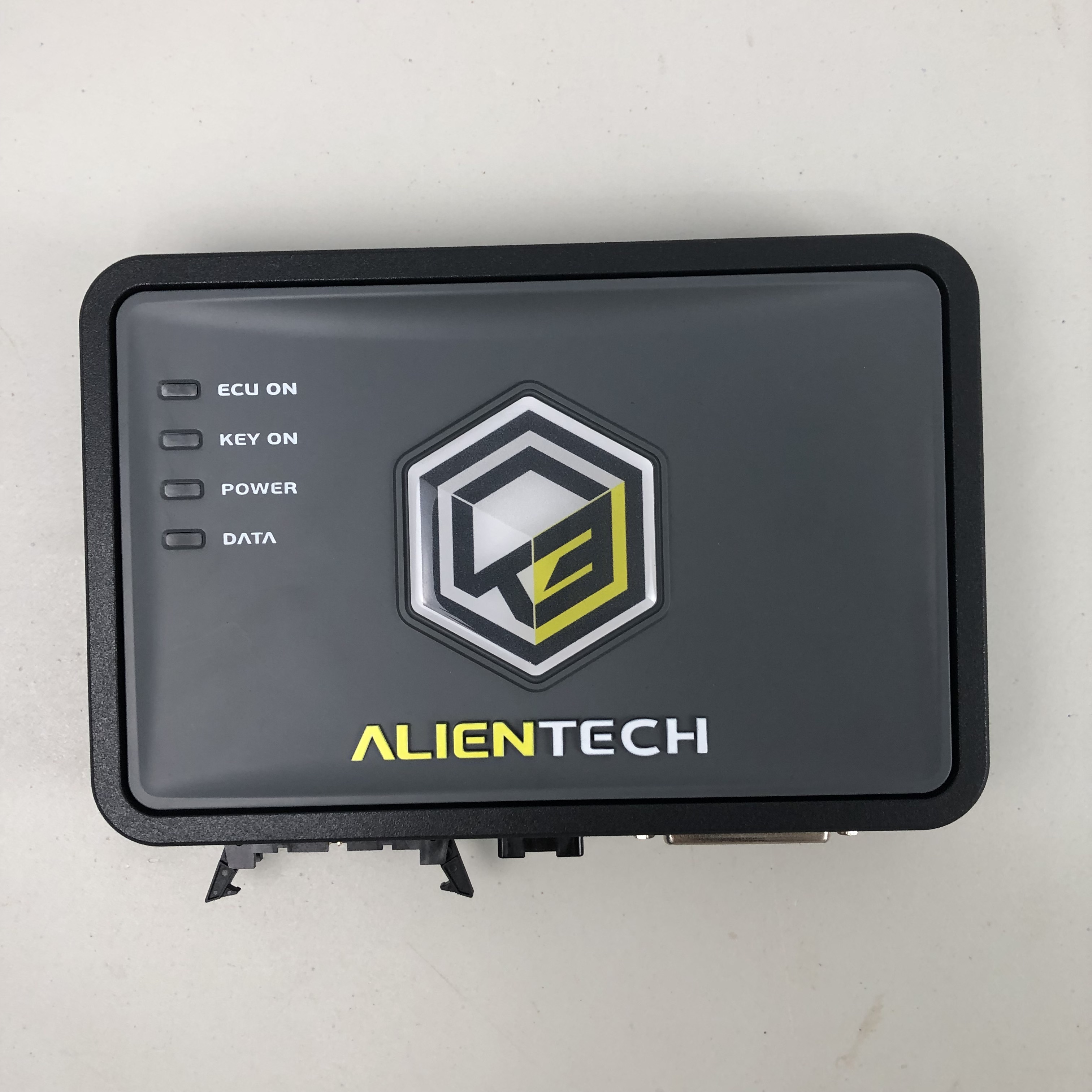

Alientech KESS V3 - Professional-Grade Multiprotocol ECU Remapping Platform
Manufactured in Italy by Alientech Srl, the KESS V3 consolidates OBD, Bench, and Boot programming into a single portable handheld device. We supply 100% authentic factory-original units with full manufacturer warranty as an authorized distribution partner. Available in Master, Slave, and Dealer-Network configurations to suit individual technicians and multi-location tuning businesses alike.

Key Advantages at a Glance

7x Processor SpeedTriple ProtocolGPS / BT / Wi-FiFiberglass BodyMaster/Slave Ready9 Languages
7x Processing Power

Next-generation microprocessor delivers seven times the computational throughput of its predecessors, enabling rapid read/write cycles and instant checksum correction.

Three-in-One Connectivity

Unifies OBD, Bench, and Boot protocols into a single device - no need to switch between separate programmers for different ECU access levels.

Smart Wireless Modules

Built-in GPS, Bluetooth, and Wi-Fi enable cloud-based tuning, remote diagnostics, and real-time location tracking for mobile service operations.

Flexible Licensing

Operate as Master, Slave, or Dealer Network node. Upgrade from Slave to Master by paying only the license difference - no hardware replacement needed.

Programming Modes Explained

Protocol ModeFunctional DescriptionIdeal Application
OBD Diagnostics PortReads and writes ECU maps through the vehicle's standard diagnostic connector without ECU disassembly. Fast turnaround for everyday remapping tasks.Routine tuning services, fleet maintenance, quick calibration updates
Bench Direct AccessConnects directly to the ECU on the workbench via dedicated harness for full data access without opening the ECU housing.Encrypted ECU programming, precision workshop calibration
Boot-Level RecoveryFull low-level memory access for reading, writing, and cloning operations on secured, locked, or bricked ECUs.ECU recovery and repair, cloning projects, firmware-level modification

Comprehensive Vehicle Compatibility

  • Passenger Cars and Light Commercial Vehicles (LCV)
  • Motorcycles, ATV, and UTV Platforms
  • Agricultural Machinery, Heavy-Duty Trucks, and Buses
  • Marine Engines and Personal Watercraft (PWC)

2025 Protocol Expansion: OBD coverage now includes VAG Group MD1CS004 2.0L TDI ECUs covering model years 2019 through 2025.

Licensing Model - Master, Slave, and Dealer Network
MASTER Edition - Complete autonomy over calibration file editing using your preferred tuning software suite.
SLAVE Edition - Connects to a master tuner network; remote file preparation while you manage local read/write operations.
DEALER NETWORK - Build your own distributed slave network to scale your tuning business.
Seamless Upgrade Path: Transition from Slave to Master by paying only the price difference. No hardware replacement required.

Technical Specifications

Microprocessor7x performance improvement over previous generation
Data TransferUSB Full Speed - up to 10x faster than KESSv2
Communication ProtocolsEthernet, FlexRay, CAN Bus, K-Line, L-Line, J1850, J1708
Integrated ModulesGPS receiver, Accelerometer, Bluetooth, Wi-Fi
Body ConstructionFiberglass composite - lightweight with shock and vibration resistance
Software PlatformAlientech Suite (fully redesigned user interface)
Supported LanguagesEnglish, Italian, French, German, Spanish, Portuguese, Chinese, Polish, Russian
Checksum EngineHigh-speed automatic checksum correction
Cloud IntegrationAlientech Cloud with enhanced speed and reliability
Cable EcosystemFully backward compatible with existing KESSv2 cable set
Diagnostic FeaturesIntegrated DTC reader with complimentary updates

License Subscription Options

EditionVehicle CategoryProtocol
Master / SlaveCar / LCVOBD
Master / SlaveBike / ATV / UTVOBD
Master / SlaveAgriculture / Truck / BusOBD
Master / SlaveMarine / PWCOBD
Master / SlaveAll Vehicle CategoriesBench-Boot
Optional ExtensionDynoDrive ActivationFor KESS V3

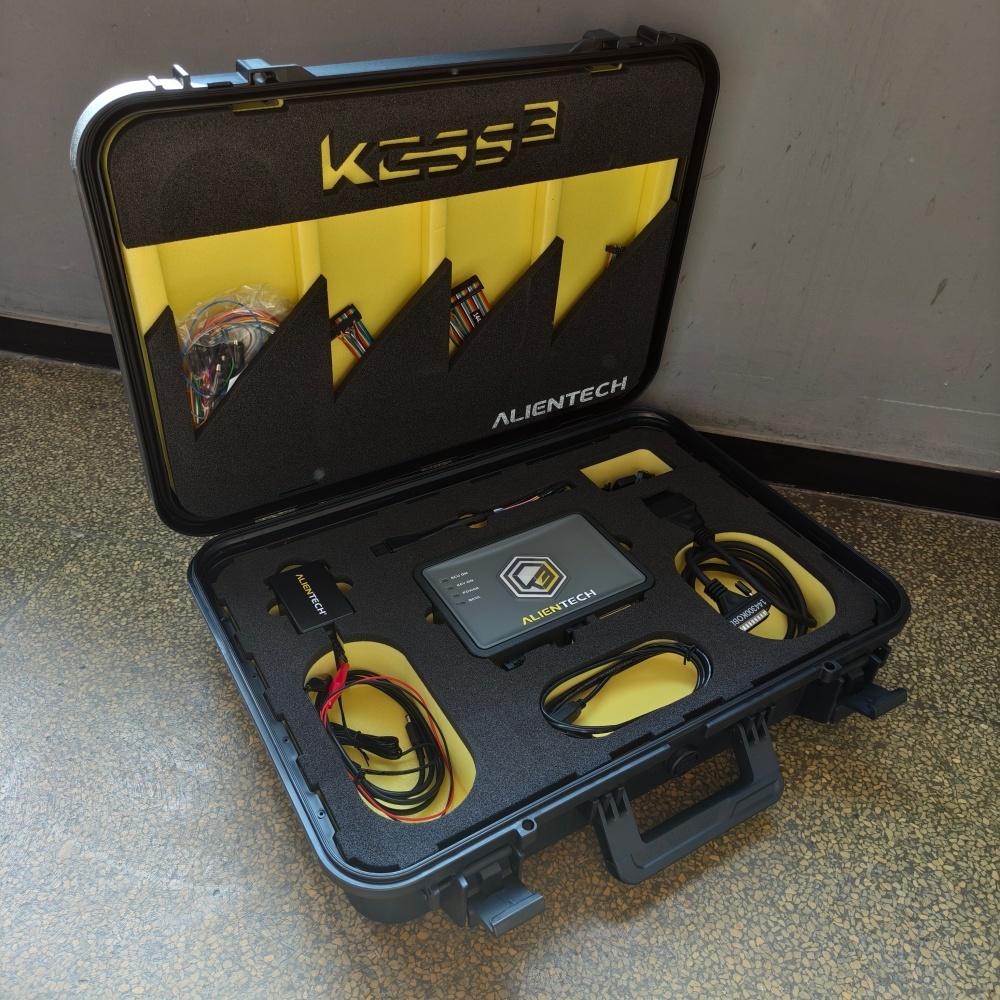

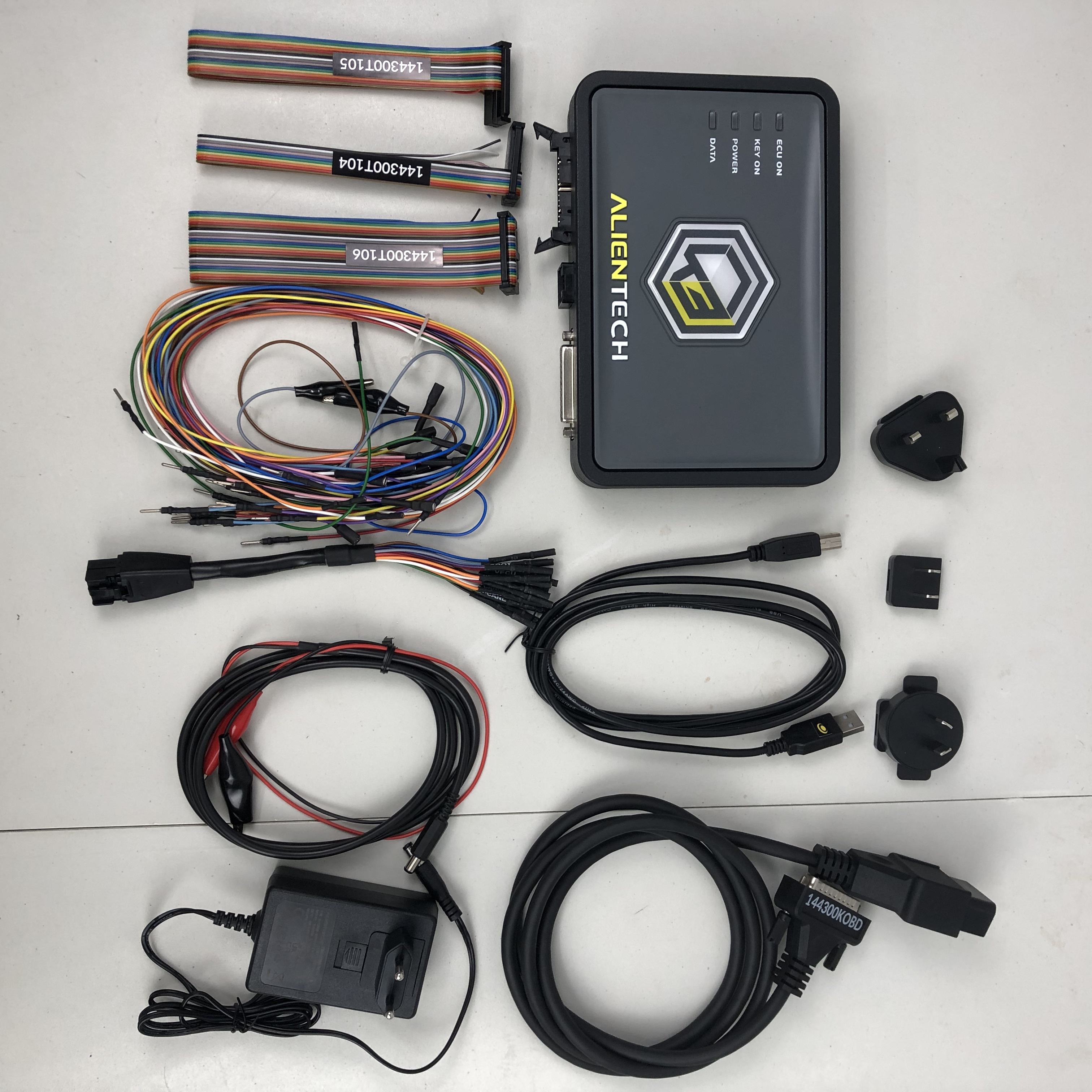

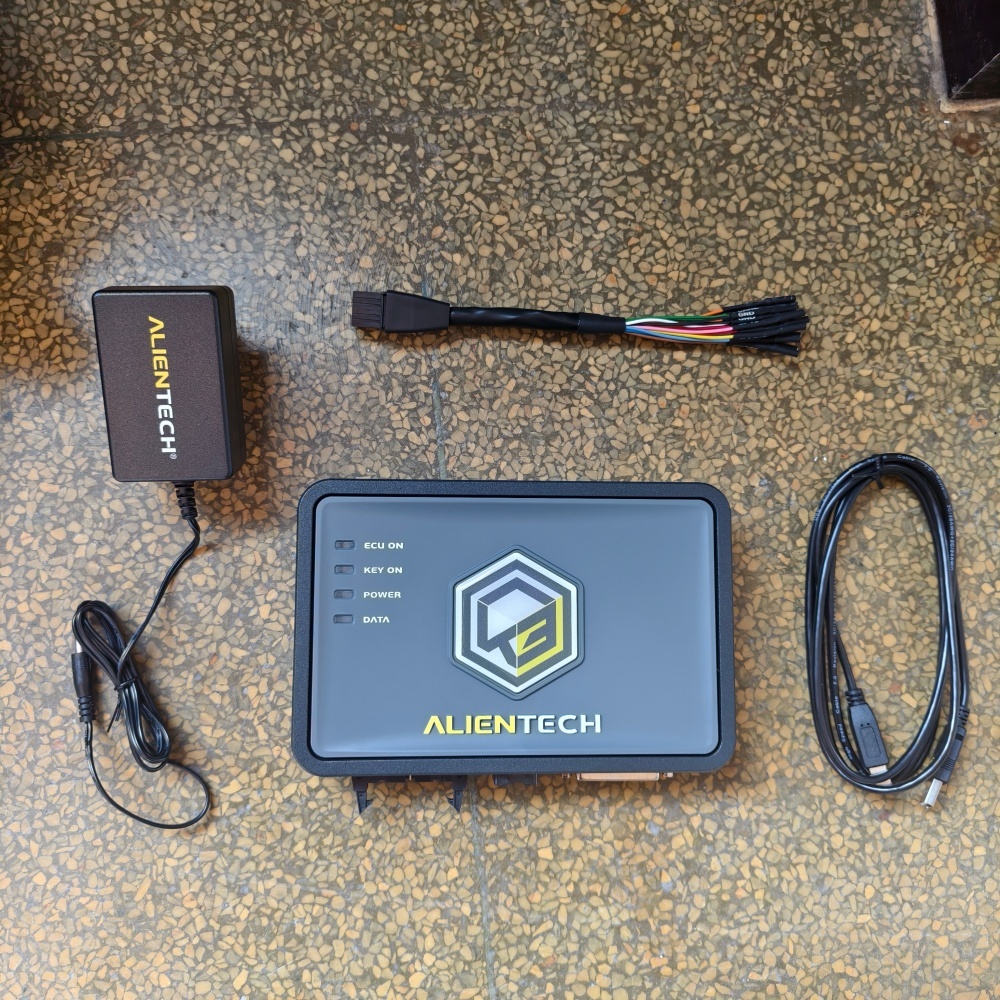

What's Included

  • 1 x Alientech KESS V3 Main Programming Unit
  • 1 x USB Connection Cable

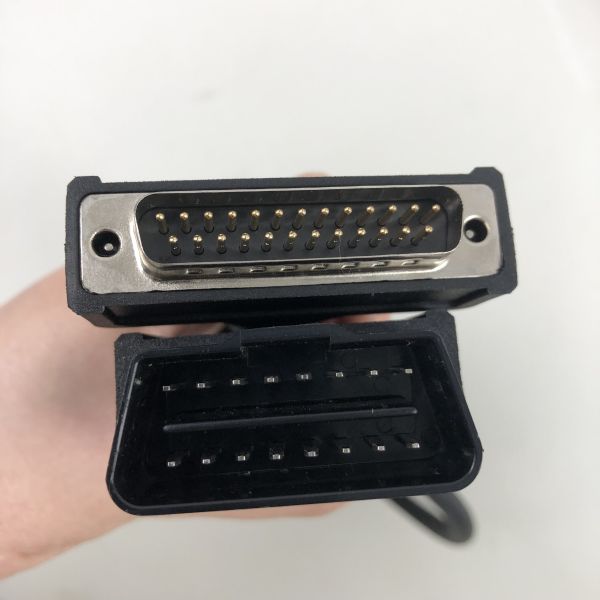

  • 1 x Next-Generation OBD Cable
  • 1 x 1400SWALIM Power Supply Adapter
  • 1 x 144300TALI Harness Cable
  • 1 x 144300KBNC Harness Cable
  • 1 x 144300KTER Terminal Pack
  • 1 x 144300T104 Cable
  • 1 x 144300T105 Cable
  • 1 x 144300T106 Cable

Warranty and Support

  • 12-Month Hardware Warranty Coverage
  • 12-Month Complimentary Subscription Period
  • Lifetime Technical Assistance from certified Alientech support engineers
  • Authorized distributor guarantee - every unit is 100% authentic Italian manufacture
  • Custom wholesale pricing and international dropshipping arrangements available

Alientech and KESS V3 are registered trademarks of Alientech Srl, Italy. We operate as an independent authorized distributor.
