Specifications
Brand Name :
jinhengsteel
Model Number :
JHS-20223662255
Certification :
ISO9001
Place of Origin :
China Guangdong Foshan
MOQ :
500 Square Meter/Square Meters
Price :
$35.00 - $65.00/ Square Meter
Supply Ability :
250000 Square Meter/Square Meters per Year
Packaging Details :
Wooden Package or bulk loading
Width :
1000mm / 1200mm
Length :
Greater than or equal to 4000
Thickness :
0.3 / 0.40 / 0.50mm
Function :
Anti-Static, Fireproof
Surface Treatment :
Anodized, Brushed, PE Coated, Printing, PVDF Coated
Description

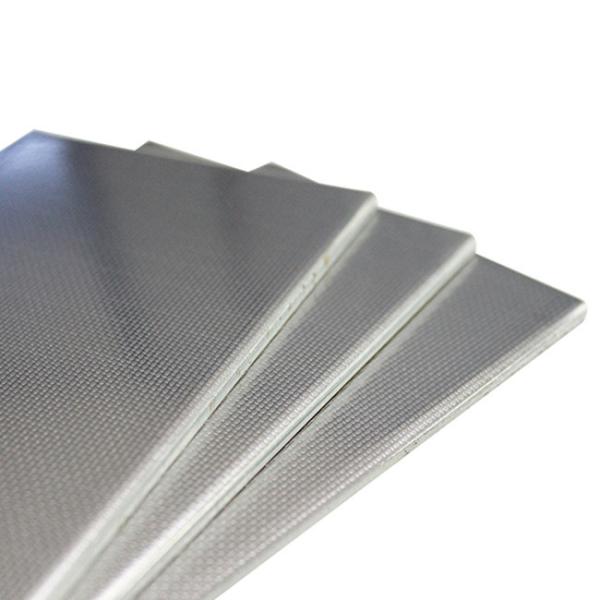

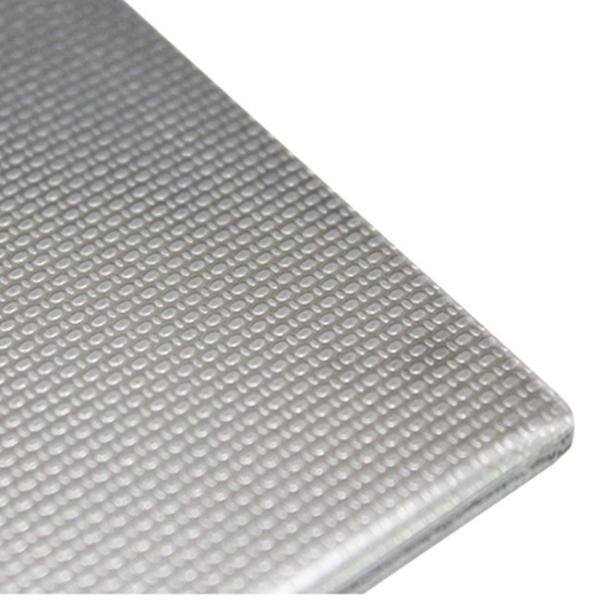

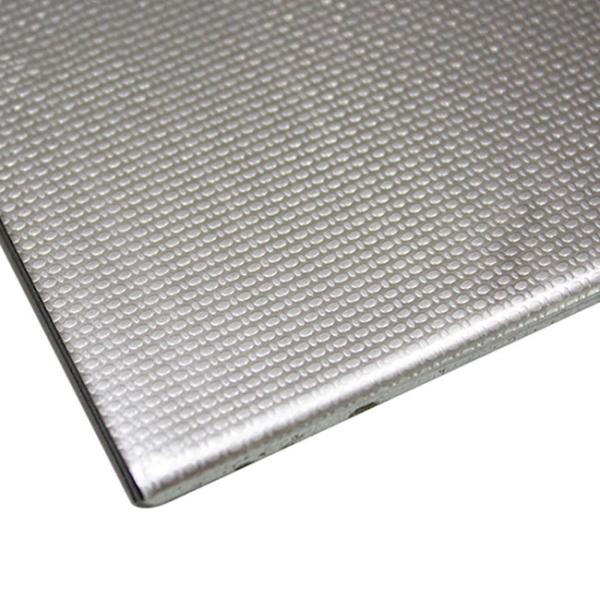

Exterior wall cladding brushed stainless steel metal composite panel

Structure:

  • Protective film to protect panel surface
  • Stainless Steel #304 / #316 sheet
  • Polymeric membrane composites the copper sheet onto core.
  • LDPE/FR core is made from low density polyethylene or fireproof grade materials.

Width 1000mm / 1200mm
Panel Thickness 3mm / 4mm
Stainless Alloy Stainless Steel #304 / #316
Stainless Steel Thickness 0.3 / 0.4 / 0.5mm
Skin Finish Dull / Mirror/ Hairline / Embossed
Core LDPE / Fireproof / A2 non-combustible
Length ≥4000mm
Brand / OEM ALCADEX® / Customized
Payment Terms T/T / L/C / Western Union / Paypal
Packing Wooden Package or bulk loading

Specification:

Characteristics

Characteristics for Stainless Steel Composite Panel (SSCP)

Test Item

Unit

 National Standard for SSCP
3(4)mm/0.3+0.3mm 3(4)mm/0.2+0.2mm
1800 Peel Off Strength N/mm ≥5.4 ≥6.0
Unit Weight Kg/m2 7.0±0.5 (8.0±0.5) 5.6±0.5 (6.5±0.5)
Flexural Strength MPa ≥130 ≥135
Flexural Modulus 104MPa ≥4.5 ≥4.4
Penetrating Resistance kN ≥23 ≥18
Shear Strength MPa ≥72 ≥80
Thermal Deformation Tept. 0C ≥110 ≥110
Thermal Expansion /0C ≤1.2x10-5 ≤1.8x10-5
Boiling-water Resistance - No effect No effect
Weather Resistance - No effect No effect
