720x1612 Resolution 6.56 Inch IPS TFT LCD Display 300cd/M2 Luminance For Smart Phone
720x1612 Resolution 6.56 Inch IPS TFT LCD Display 300cd/M2 Luminance For Smart Phone
Specifications
Brand Name :
Jingtai
Model Number :
JT-6.56BHMIPSINCELL
Certification :
ISO9001 / ISO14000
Place of Origin :
ShenZhen / China
MOQ :
5pcs
Price :
The most competitive price and the price is negotiable based on order quantity
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Supply Ability :
2000K pcs per month
Delivery Time :
1-5 weeks
Packaging Details :
Standard Exportation Package
Key Words :
6.56 Inch IPS TFT LCD Display Incell
Resolution :
720*1612
Display Mode :
IPS Full Viewing Angle
Aspect Ratio :
9:4
Luminance :
300cd/m²(Typ) 450cd/m²(Typ)
Interface Definition :
MIPI
Touch Screen :
CTP
CTP Interface :
12C/SPI
Description
6.56 Inch IPS TFT LCD Display with Incell Technology and Blind Hole Design
Product Overview

High-performance 6.56-inch IPS TFT LCD display featuring incell technology and center blind hole design, ideal for Mobile Phone, POS/PDA applications requiring excellent visibility and compact form factor.

Key Specifications
Parameter Specification
Application Mobile Phone
Resolution 720 × 1612 pixels
Active Area 67.93 × 152.09 mm
Module Dimensions 70.23 × 157.34 × 1.49 mm
Aspect Ratio 9:4
Display Mode Normally Black
Viewing Angle (CR>10) 85°/85°/85°/85° (Typical)
Contrast Ratio 1000 (Min), 1500 (Typical)
NTSC Color Gamut 67% (Typical)
Brightness 300 cd/m² (Typical), 450 cd/m² (Max)
Interface MIPI
Operating Temperature -20°C to +70°C
Storage Temperature -30°C to +80°C
Technical Features
  • IPS Technology: Delivers wide viewing angles and accurate color reproduction
  • Incell Touch: Integrated touch functionality for slim profile design
  • High Brightness: Up to 450 cd/m² for excellent outdoor visibility
  • Robust Construction: Designed for industrial temperature ranges

Model JT-6.56BHMIPSINCELL features a 6.56-inch display with a 720×1612 dot matrix and incorporates IPS technology, delivering an optimal viewing experience from virtually any angle. It operates at a low voltage range of 3V to 3.6V, with a typical voltage of 3.3V, and offers a high surface brightness of 450 nits. Users also have the option to integrate CTP onto the display to enhance human-machine interaction.

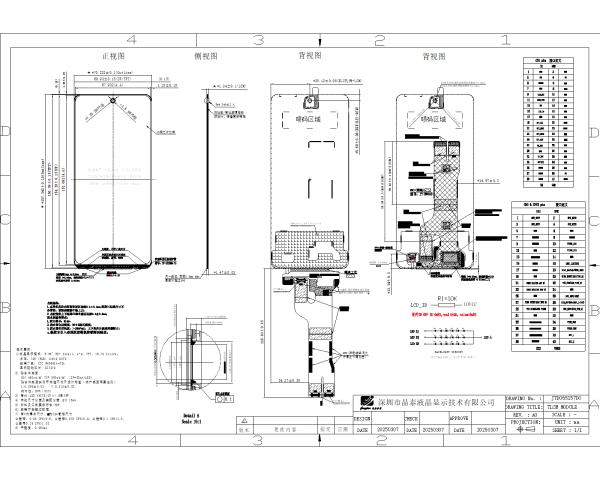

Mobile Phone Blind Hole Design 6.56 inch 720*1612 TFT Touch Display Module Drawing

720x1612 Resolution 6.56 Inch IPS TFT LCD Display 300cd/M2 Luminance For Smart Phone

720x1612 Resolution 6.56 Inch IPS TFT LCD Display 300cd/M2 Luminance For Smart Phone

720x1612 Resolution 6.56 Inch IPS TFT LCD Display 300cd/M2 Luminance For Smart Phone

720x1612 Resolution 6.56 Inch IPS TFT LCD Display 300cd/M2 Luminance For Smart Phone

Environmental / Reliability Tests

No Test Item Condition Remarks

1

 High Temperature Operation

Ts= +80℃ , 240hrs

Note 1

IEC60068-2-2, GB2423. 2-89
2 Low Temperature Operation Ta= -30℃ , 240hrs Note 2 IEC60068-2-1 GB2423.1-89
3 High Temperature Storage Ta= +80℃ , 240hrs IEC60068-2-2 GB2423. 2-89
4 Low Temperature Storage Ta= -30℃ , 240hrs IEC60068-2-1 GB/T2423.1-89
5 High Temperature & Humidity Storage Ta= +60℃ , 90% RH max, 160 hours

IEC60068-2-3

GB/T2423.3-2006

6

Thermal Shock (Non-operation)

-30℃ 30 min ~ +80℃ 30 min Change time: 5min, 30 Cycle

Start with cold

temperature, end with

high temperature

IEC60068-2-14,

GB2423.22-87

7

Electro Static Discharge (Operation)

C=150pF, R=330 Ω , 5 points/panel

Air:±8KV, 5 times; Contact: ±4KV, 5

times; (Environment: 15℃ ~

35℃ , 30% ~ 60%, 86Kpa ~ 106Kpa)

IEC61000-4-2

GB/T17626.2-1998

8

Vibration

(Non-operation)

Frequency range: 10~55Hz, Stroke:

1.mm Sweep: 10Hz~55Hz~10Hz

2 hours for each direction of X .Y. Z.

(package condition)

IEC60068-2-6

GB/T2423.5-1995
9 Shock (Non-operation)

60G 6ms, ± X, ±Y , ± Z

3 times for each direction

 IEC60068-2-27 GB/T2423.5-1995
10 Package Drop Test

Height: 80 cm, 1 corner, 3 edges,

6 surfaces

 IEC60068-2-32 GB/T2423.8-1995
