Specifications
Brand Name :
JingOne Machine
Model Number :
CTX200S
Certification :
CE Certifications
Place of Origin :
Tengzhou, Shandong
MOQ :
1
Price :
60000
Payment Terms :
T/T
Supply Ability :
50 sent/month
Delivery Time :
30 days
Packaging Details :
Plywood Case
Recommended processing diameter :
220mm
Recommended processing length :
600mm
Max. processing diameter :
280mm
Max. bar diameter through spindle :
48 mm
Spindle bore :
65 mm
Sub-spindle bore :
65 mm
Description

Twin Spindle Turning Center CTX200S: Simultaneous Back-Machining Eliminates Re-Clamping Errors

Model: CTX200S | Core Keyword: Twin spindle turning center

Summary

Twin spindle turning center CTX200S delivers simultaneous front and back-machining operations to cut production cycles by 30% without repositioning workpieces.

Equipped with a Y-axis power turret, 15Kw A2-6 spindles, and Taiwan roller linear guide rails, this model maintains tight tolerances of ±0.002mm for high-precision parts.

Ideal for aerospace, medical, and automotive contract manufacturers needing to optimize floor space with its compact 7sqm footprint.

Features

  • Integral slant bed cast from high-grade ductile iron with hardened surface for long-term rigidity and minimal spindle runout
  • Twin A2-6 spindles with 15Kw power enable simultaneous front and back-machining operations to eliminate re-clamping errors
  • BMT55 Y-axis power turret with live tooling for mill, drill, and tap operations in a single setup
  • Taiwan roller linear guide rails with pre-embedded lubrication system to minimize wear and reduce scheduled maintenance
  • Compact 7sqm footprint to maximize factory floor space utilization for high-volume production lines

Technical Specifications

Max. Swing Diameter over Bed 700 mm
Max. Swing Diameter over cross slide 350 mm
Max. turning length 600 mm
Max. Bar capacity 48 mm
Max. processing diameter(plate) 280 mm
Spindle Nose A2-6
Spindle Bore Diameter 65 mm
Main Motor Power 15 Kw
Spindle Speed 50-3500 rpm, stepless
Chuck 8 inch hydraulic
X/Y/Z-axis rapid traverse 18/6/18 rpm
X/Y/Z-axis motor torque 15/6/15 Nm
X/Y/Z axis travel 200/±45/650 mm
Guide rail linear guide
Turret BMT55
Tool quantity 12 stations
Tool shank size 25x25/40 mm
Sub-spindle nose A2-6
Sub-spindle speed 50-3500 rpm
Sub-spindle bore 65 mm
Sub-spindle power 15 Kw
Dimensions 3200x2000x2200 mm
Net Weight 4250 Kg

Accessory Configurations

Accessory Configuration

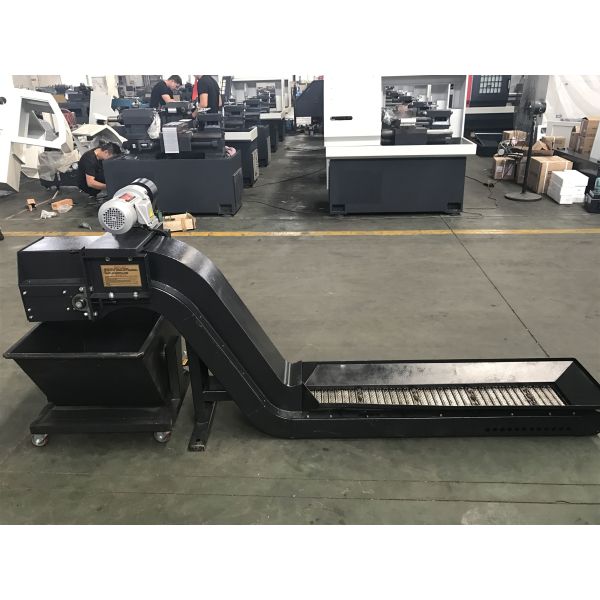

Chip Conveyor

Twin Spindle Turning Center CTX200S | Y-Axis Live Tooling & Simultaneous Back-Machining For Precision Components

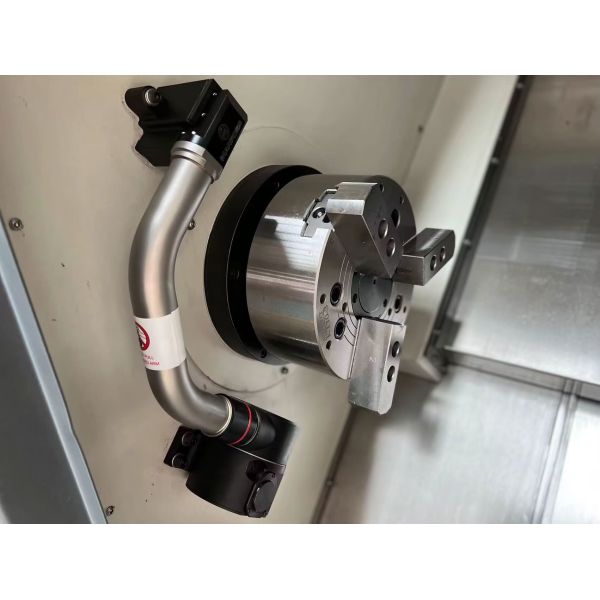

Tool Setter

Twin Spindle Turning Center CTX200S | Y-Axis Live Tooling & Simultaneous Back-Machining For Precision Components

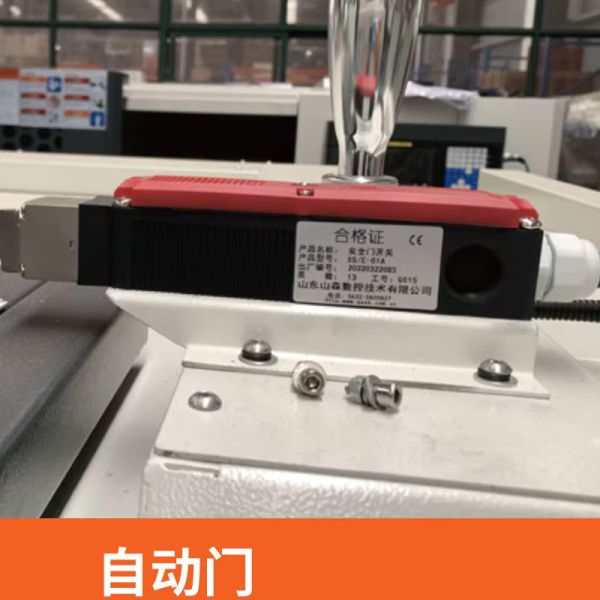

Automatic Door

Twin Spindle Turning Center CTX200S | Y-Axis Live Tooling & Simultaneous Back-Machining For Precision Components
Automatic Door Safety Device

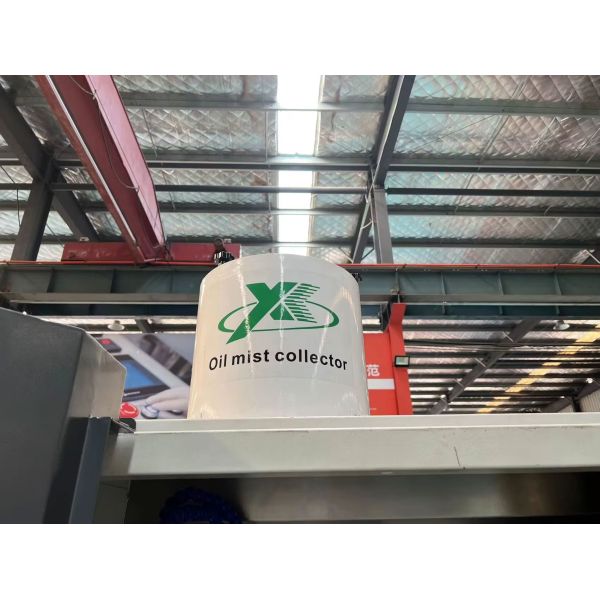

Oil Mist Collector

Twin Spindle Turning Center CTX200S | Y-Axis Live Tooling & Simultaneous Back-Machining For Precision Components
Oil/Coolant Separator
Robot Interface

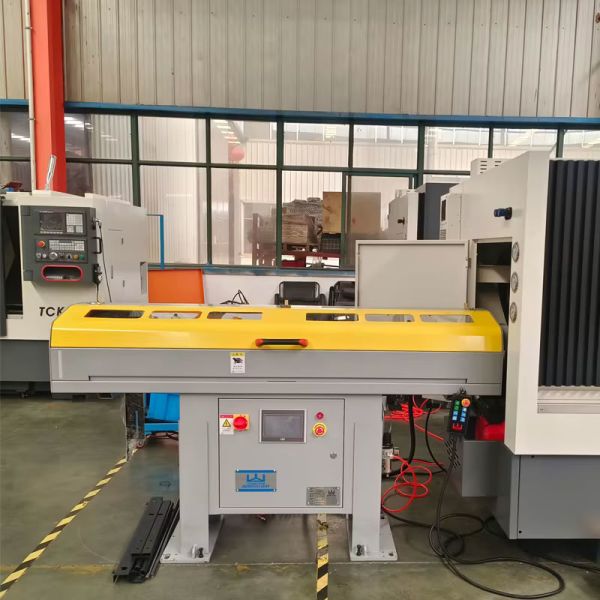

Bar Material Feeder

Twin Spindle Turning Center CTX200S | Y-Axis Live Tooling & Simultaneous Back-Machining For Precision Components
Blowing Device
Water Gun
Soft Jaws for Chuck
Live Tool Holders

Twin Spindle Turning Center CTX200S | Y-Axis Live Tooling & Simultaneous Back-Machining For Precision Components Twin Spindle Turning Center CTX200S | Y-Axis Live Tooling & Simultaneous Back-Machining For Precision Components

Logistics & Support

Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping

Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)

Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)

Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets

Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading

Contact our team for customized shipping quotes for your CTX200S order

FAQ

Q: How does the CTX200S reduce production time for precision parts?

A: The twin spindle turning center uses simultaneous back-machining and Y-axis live tooling to cut processing cycles by 30% without re-clamping workpieces.

Q: What maintenance is required for the CTX200S’s linear guide rails?

A: This twin spindle turning center features a pre-embedded lubrication system that automatically feeds oil to rails, reducing wear and extending component lifespan.

Q: Can the CTX200S machine high-strength titanium aerospace components?

A: Yes, the twin spindle turning center’s 15Kw spindles and hardened guideway handle titanium parts with tight ±0.002mm tolerance requirements.
