Specifications
Brand Name :
Reliable Supplier
Model Number :
4H
Certification :
CE Certifications
Place of Origin :
Tengzhou, Shandong
MOQ :
1
Price :
Start from 3911 USD/set
Payment Terms :
T/T
Supply Ability :
50 sent/month
Delivery Time :
30 days
Packaging Details :
Plywood Case
Worktable size :
254x1270mm
Max.workpiece weight :
320Kg
Voltage :
380V / Customized
Spindle taper :
R8
Main motor power :
11kw
Head Motor :
3HP/2.2KW
Description

Turret Milling Machine | 4H Model | Metal Component Machining

4H Turret Milling Machine with 850mm X-Axis Travel | R8 Spindle Taper for Precision Metal Component Machining

Product Overview

This Turret Milling Machine delivers versatile, precision machining for a range of metalworking applications. Available in 4H, 5H, 6H, and 5Hw models, it supports operations from small component fabrication to heavy-duty mold processing.

Equipped with 16 spindle speed steps and customizable spindle tapers (R8, NT30/NT40), it accommodates diverse cutting tools and material requirements. The machine’s rigid table design, featuring 3×16 T-slots spaced 65mm apart, ensures secure workpiece clamping for stable, accurate cuts.

Models with 5HP head motors include Z-axis electrical lifting to reduce operator fatigue, while all units come with a standard coolant system to extend tool life and improve surface finish. With a max workpiece weight capacity of 320Kg, it balances flexibility with heavy-duty performance for toolrooms, job shops, and manufacturing facilities.

Core Features

  • Spindle System: 16 speed steps (or 12 steps for 5Hw model) with multiple feed rates (0.076/0.003, 0.038/0.0015, 0.203/0.008 mm) to match diverse material and tooling requirements
  • Axis Travel: X-axis ranges from 850mm to 900mm, Y-axis from 400mm to 420mm, Z-axis up to 500mm, supporting large workpiece machining
  • Table Stability: 3×16 T-slots with 65mm spacing provide secure workpiece clamping for consistent precision during cuts
  • Motor Configurations: 3HP/2.2KW or 5HP/3.75KW head motors; 5H/6H models include 1.1KW lifting motor for Z-axis electrical lifting
  • Coolant System: Standard on all models to control heat buildup and improve machining surface quality

Technical Specifications

Parameter Details
Worktable size 254x1270mm
Voltage 380V / Customized
Spindle taper R8
Head Motor 3HP/2.2KW
Frequency (Hz) 50/60
Spindle Stroke 127mm
Spindle speed range 30-1500rpm
Main motor power 11kw
Max.workpiece weight 320Kg
Dimensions 1516x1550x2080mm

Accessory Configurations

Optional Accessories

DRO
Specification: Brand: Sino
2-axis DRO or 3-axis DRO

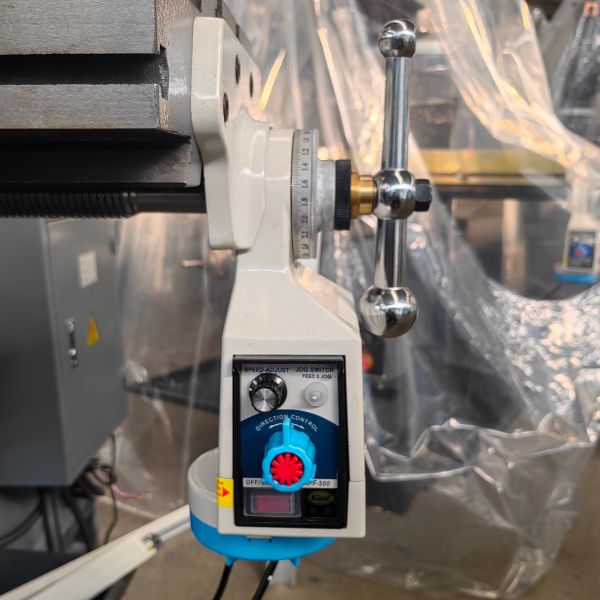

Auto feeder
Specification: Optional:
X-axis auto feeder or Y-axis auto feeder
Rotary table
Specification: Diameter:
250mm

International Shipping & Support

Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading

Frequently Asked Questions

Q: How do I choose the right turret milling machine model for my job shop?
A: Match your workpiece size to axis travel (e.g., 850mm X-axis for 4H, 900mm for 6H) and select 3HP/5HP spindle based on material hardness.
Q: What is the typical maintenance cost for a turret milling machine?
A: Annual maintenance costs are minimal, focusing on regular lubrication (use included oil can) and coolant system servicing for your turret milling machine.
Q: How does spindle speed configuration affect turret milling machining efficiency?
A: The 16-speed spindle system lets you match cutting speeds to materials, reducing cycle times for your manual toolroom milling operations.
