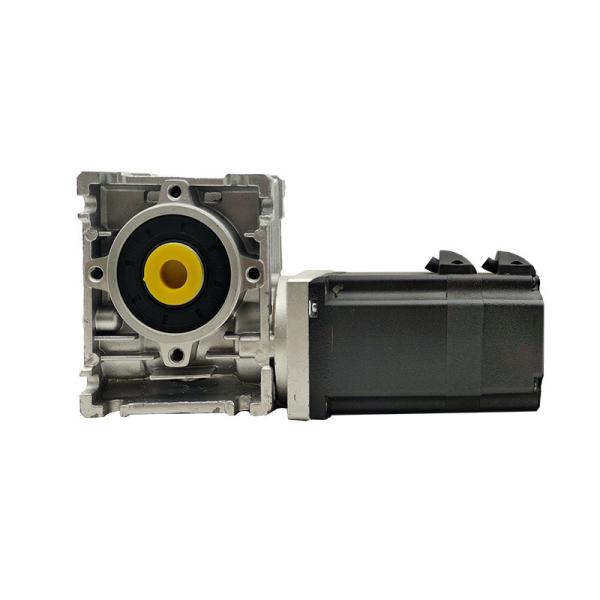

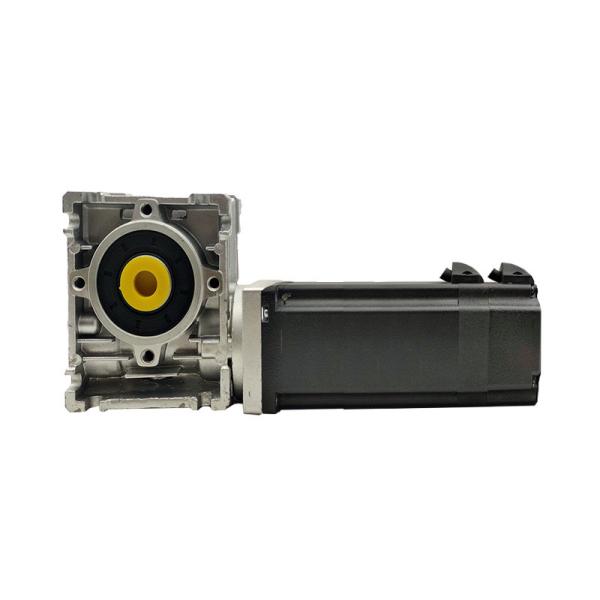

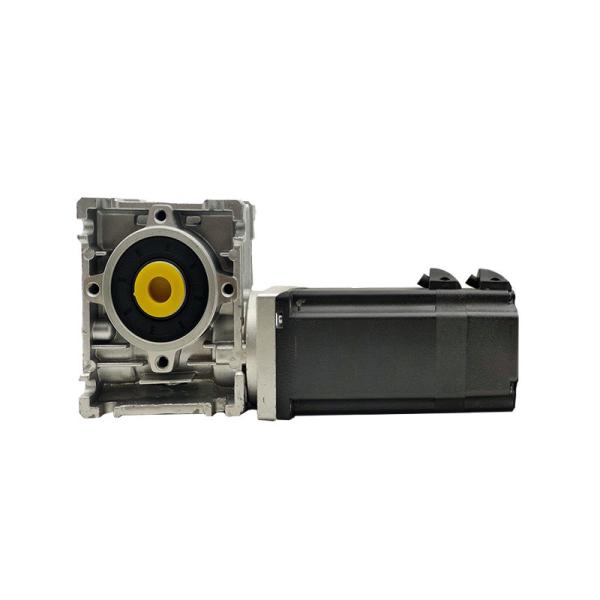

200W/300W/400W 60mm Brushless DC Motor 48V with worm gearbox Brushless DC worm geared motor
200W/300W/400W 60mm Brushless DC Motor 48V with worm gearbox Brushless DC worm geared motor
200W/300W/400W 60mm Brushless DC Motor 48V with worm gearbox Brushless DC worm geared motor
200W/300W/400W 60mm Brushless DC Motor 48V with worm gearbox Brushless DC worm geared motor
200W/300W/400W 60mm Brushless DC Motor 48V with worm gearbox Brushless DC worm geared motor
200W/300W/400W 60mm Brushless DC Motor 48V with worm gearbox Brushless DC worm geared motor
Specifications
Brand Name :
KIMBROUGH
Model Number :
J60BLSWG99-430A, J60BLSWG120-430A, J60BLSWG140-430A
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Supply Ability :
10000pcs per month
Packaging Details :
carton
Output Power :
200W/300W/400W
Description

200W/300W/400W 60mm Brushless DC Motor 48V with worm gearbox Brushless DC worm geared motor

Winding type Star
Hall effect angle 120°
Insulation class B
Ambient temperature range -20°C ~ +50°C
Insulation resistance 100MΩMin 500VDC
Dielectric Strength 500VDC 1 minute

Technical data :

Model

Voltage

(VDC)

 Motor Rated Parameters

Motor

Peak

Torque

(N.m)

Torque

Constant

(N.m/A)

Back

EMF

(V/k RPM)

Motor

Rotor

Inertia

(kg.mm2)

Length

(L:mm)

Weight

(kg)

Gear

Ratio

Speed

(rpm)

Torque

(N.m)

Current

(A)

Power

(W)
J60BLSWG99-430A 48 3000 0.65 6.5 200 1.95 0.065 4.5 48 195 2.55

5:1

7.5:1

10:1

15:1

20:1

25:1

30:1

40:1

50:1

60:1

80:1
J60BLSWG120-430A 3000 0.95 8.8 300 2.85 0.126 9.3 72 216 2.95
J60BLSWG140-430A 3000 1.25 11.5 400 3.81 0.127 9.2 96 236 3.35

Dimension unit:mm

200W/300W/400W 60mm Brushless DC Motor 48V with worm gearbox Brushless DC worm geared motor

200W/300W/400W 60mm Brushless DC Motor 48V with worm gearbox Brushless DC worm geared motor

Wiring diagram

200W/300W/400W 60mm Brushless DC Motor 48V with worm gearbox Brushless DC worm geared motor
