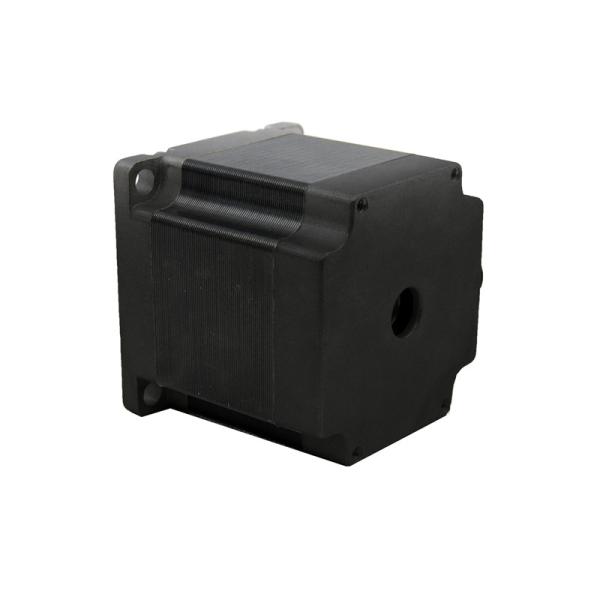

4wires NEMA23 stepping motor 1.3N.m(186oz-in) motor length 56mm shaft diameter 6.35/8.0mm 3.0A
4wires NEMA23 stepping motor 1.3N.m(186oz-in) motor length 56mm shaft diameter 6.35/8.0mm 3.0A
4wires NEMA23 stepping motor 1.3N.m(186oz-in) motor length 56mm shaft diameter 6.35/8.0mm 3.0A
4wires NEMA23 stepping motor 1.3N.m(186oz-in) motor length 56mm shaft diameter 6.35/8.0mm 3.0A
4wires NEMA23 stepping motor 1.3N.m(186oz-in) motor length 56mm shaft diameter 6.35/8.0mm 3.0A
4wires NEMA23 stepping motor 1.3N.m(186oz-in) motor length 56mm shaft diameter 6.35/8.0mm 3.0A
Specifications
Brand Name :
KIMBROUGH
Model Number :
57HS56A43006/57HS56A43008
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1pc
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
2000pcs per week
Delivery Time :
in stock
Step Angle :
1.8 degree
Holding torque :
1.3N.m(186oz-in)
Current(A/Phases) :
3.0A
Motor length :
56mm
Description

4wires NEMA23 stepping motor 1.3N.m(186oz-in) motor length 56mm shaft diameter 6.35/8.0mm 3.0A

General specifications

Step Angle Accuracy: 5%

Temperature rise: 80°c Max

Ambient temperature: -10°c~+50°c

Insulation resistance: 100MΩ Min 500VDC

Dielectric strength: 500V AC 1minute

Shaft Radial Play: 0.02mm Max(450g-load)

Shaft Axial Play: 0.08mm Max(450g-load)

■ Specifications
Model Step Angle (°) Length L(mm) Holding Torque (N.m) Current (A/Phase) Resistance (Ω) Inductance (mH) Rotor inertia (g.cm2) Weight (kg) Shaft diameter (mm) Axis stretch (mm) Matched driver
57HS41A43006 1.8 41 0.6 3.0 0.7 1.4 120 0.45 6.35 Leveling block 0.5x20 JB542M
57HS51A43006 51 1.0 3.0 0.74 1.2 275 0.65 6.35 Leveling block 0.5x20
57HS56A43006 56 1.3 3.0 0.75 2.4 300 0.7 6.35 Leveling block 0.5x20
57HS56A43008 56 1.3 3.0 0.75 2.4 300 0.7 8.0 Leveling block 0.5x20
57HS76A44006 76 2.3 4.0 0.5 2.0 480 1.0 6.35 Leveling block 0.5x20
57HS76A44008 76 2.3 4.0 0.5 2.0 480 1.0 8.0 Leveling block 0.5x20
57HS85A44008 85 2.6 4.0 0.8 3.2 520 1.2 8.0 Leveling block 0.5x20
57HS115A44008 115 3.5 4.0 0.5 2.3 600 1.7 8.0 Leveling block 0.5x20

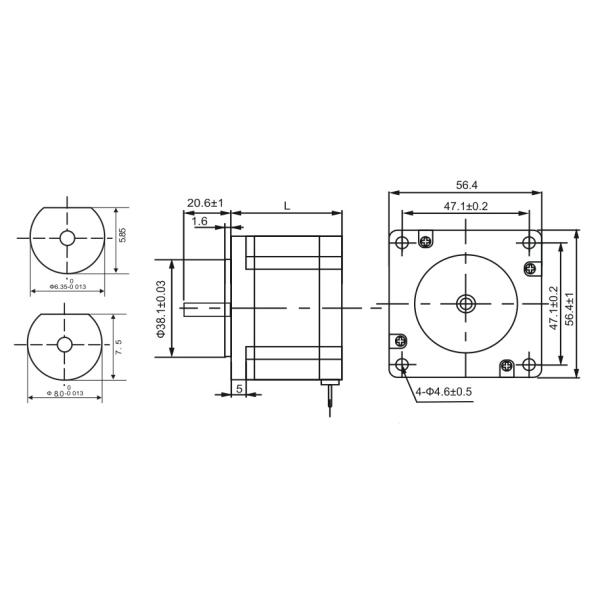

■Dimension Unit:mm

4wires NEMA23 stepping motor 1.3N.m(186oz-in) motor length 56mm shaft diameter 6.35/8.0mm 3.0A

■Frequency-torque characteristics

4wires NEMA23 stepping motor 1.3N.m(186oz-in) motor length 56mm shaft diameter 6.35/8.0mm 3.0A

■Connections

4wires NEMA23 stepping motor 1.3N.m(186oz-in) motor length 56mm shaft diameter 6.35/8.0mm 3.0A
