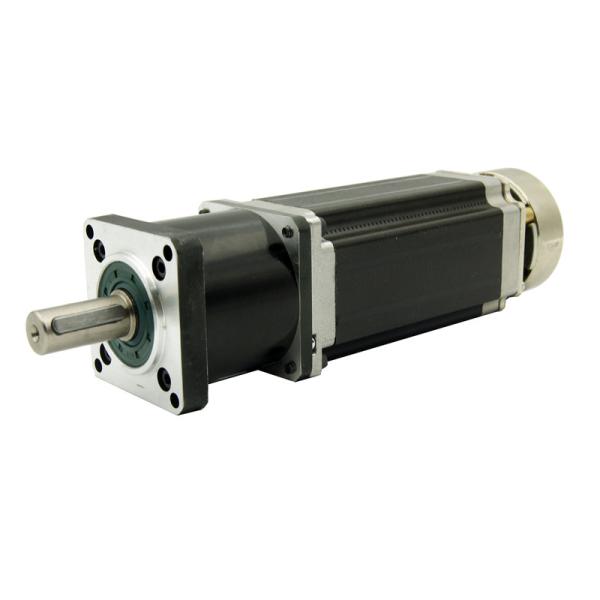

NEMA23 Planetary geared stepper motor with brake
NEMA23 Planetary geared stepper motor with brake
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Jingbo
Certification :
CE
Model Number :
NEMA23 Planetary geared stepper motor with brake
MOQ :
1
Delivery Time :
in stock
Payment Terms :
T/T, Paypal, Western union
Supply Ability :
999
Description

NEMA23 Planetary geared stepper motor with brake

Stepper motor Specification:

Model Step Angle(°) LengthL(mm) Holding Torque(N.m) Current(A/Phase) Resistance(Ω) Inductance(mH) Rotor inertia(g.cm2) Weight(Kg)
J57HB41-02 1.8 41 0.39 2.0 1.4 1.4 120 0.45
J57HB51-03 51 0.72 3.0 1.65 0.9 275 0.65
J57HB56-03 56 0.9 3.0 0.75 1.1 300 0.7
J57HB76-03 76 1.35 3.0 1.0 1.6 480 1.0
J57HB85-03 85 1.8 3.0 1.45 3.0 520 1.2
J57HB115-03 115 2.0 3.0 2.2 3.5 580 1.5


Note: conventional brake is power-off brake, the general brake voltage is DC24V, but we can design according to clients’ requirement

Planetary gearbox pecification:

Technical Data 1 stage 2 stage
Reduction ratio 4, 5, 10 16, 20, 25, 40, 50, 100
Length L1: mm 53 70
Rated load: Nm ≤25 ≤40
Efficiency: % 95 90
Backlash: arcmin ≤15 ≤25
Weight: KG 0.8 1.1
Rated input speed: rpm 3000 3000
Max input speed: rpm 5000 5000
Safety class: IP 65 65
Lubrication: Life grease lubrication Life grease lubrication
Noise: dB ≤45 ≤45
Service life: h ~20000 ~20000

Dimension unit: mm

NEMA23 Planetary geared stepper motor with brake

Connections

NEMA23 Planetary geared stepper motor with brake
