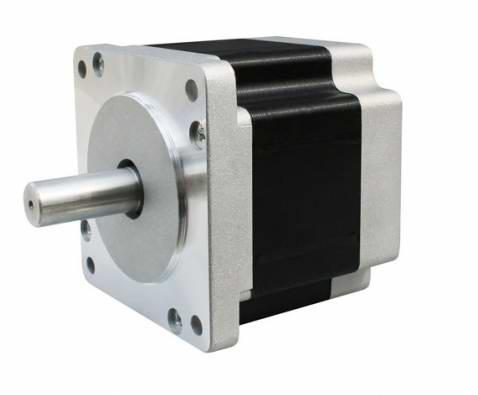

3-phase 86 Series hybrid stepper motor J3913
3-phase 86 Series hybrid stepper motor J3913
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Jingbo
Model Number :
J3913
Certification :
CE
Step Angle(degree) :
1.2
Holding torque(N.m) :
6
Current(A/Phase) :
5.8
Delivery Time :
in stock
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
500pcs per week
MOQ :
1pc
Description

General specifications

Stepping accuracy………………5%

Temperature rise……………………80℃Max

Ambient temperature………………-20℃～+50℃

Insulation resistance………………100MΩMin 500VDC

Dielectric strength……………………500V AC 1minute

Allowable radial load………………0.06mm Max (450g load)

Allowable thrust load………………0.08mm Max (450g load)

■Specifications

Model
Step Angle
（°）
Length
L(mm)
Holding Torque
(N.m)
Current
(A/Phase)
Power supply
Rotor inertia
(Kg.cm2)
Weight
(Kg)
Matched drive
J397-H
1.2
69
2
1.75
AC220V2A
1.32
2
JB3722M
J397
69
2
5.8
DC40V5A
1.32
2
JB364MA
J3910-H
97
4
2
AC220V2.5A
2.4
3
JB3722M
J3910
97
4
5.8
DC40V5A
2.4
3
JB364MA
J3913-H
125
6
2.25
AC220V2.5A
3.48
4
JB3722M
J3913
125
6
5.8
DC40V5A
3.48
4
JB364MA

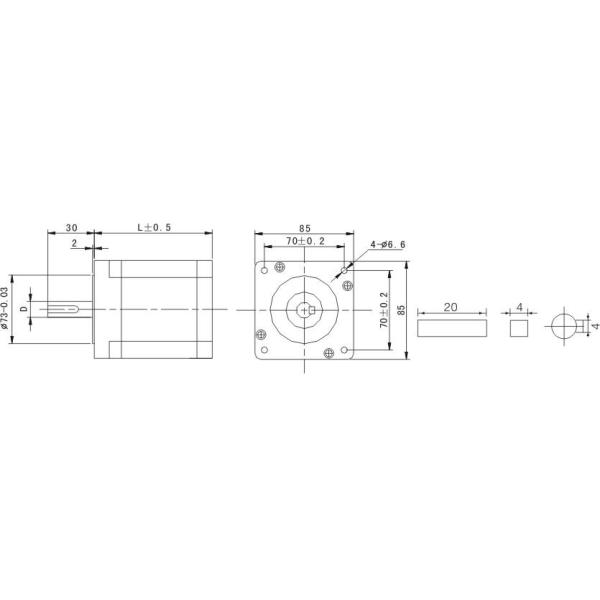

■Dimension

3-phase 86 Series hybrid stepper motor J3913

Model
D(mm)
Note
J397(H)
12
Flat key 4×20
J3910(H)
12
Flat key 4×20
J3913(H)
14
Flat key 4×20

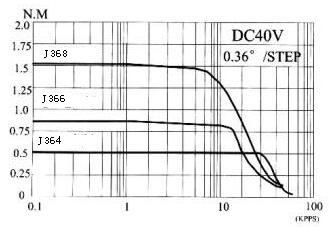

■Frequency-torque characteristics

3-phase 86 Series hybrid stepper motor J3913
■Connections

3-phase 86 Series hybrid stepper motor J3913
