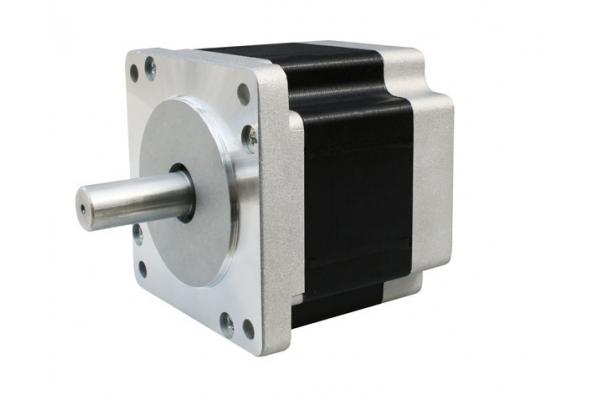

1.2° 86mm 3phase Hybrid Stepper Motor-NEMA34 J3913-H
1.2° 86mm 3phase Hybrid Stepper Motor-NEMA34 J3913-H
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Jingbo
Model Number :
J3913-H
Certification :
CE
Step angle(degree) :
1.2
Holding torque(N.m) :
6
Current(A/Phase) :
2.25
Delivery Time :
in stock
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
500pcs per week
MOQ :
1pc
Description

1.2°86mm 3phase Hybrid Stepper Motor-NEMA34 J3913-H


General specifications

Stepping accuracy_5%

Temperature rise_80cMax

Ambient temperature_-20c~+50c

Insulation resistance_100MMin 500VDC

Dielectric strength_500V AC 1minute

Allowable radial load_0.06mm Max (450g load)

Allowable thrust load_0.08mm Max (450g load)

Specifications

ModelStep Angle ()Length L(mm)Holding Torque (N.m)Current (A/Phase)Power supplyRotor inertia (Kg.cm2)Weight (Kg)Matched drive
J397-H1.26921.75AC220V2A1.322JB3220M
J3976925.8DC40V5A1.322JB364MA
J3910-H9742AC220V2.5A2.43JB3220M
J39109745.8DC40V5A2.43JB364MA
J3913-H12562.25AC220V2.5A3.484JB3220M
J391312565.8DC40V5A3.484JB364MA

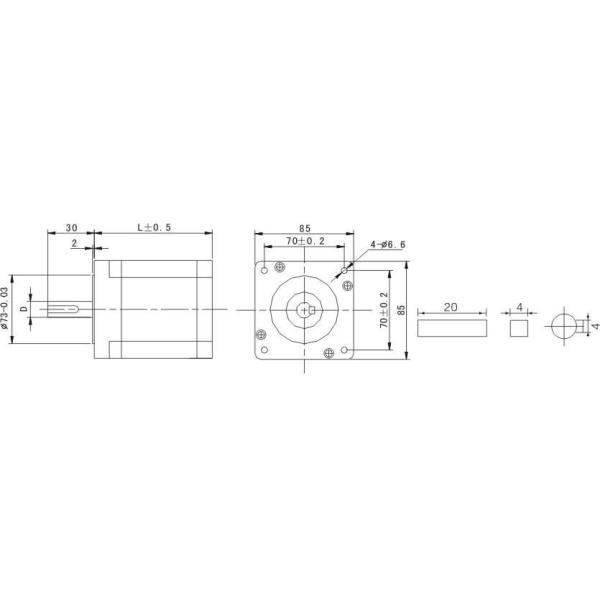

Dimension

1.2° 86mm 3phase Hybrid Stepper Motor-NEMA34 J3913-H

Model
D(mm)
Note
J397(H)
12
Flat key 420
J3910(H)
12
Flat key 420
J3913(H)
14
Flat key 420

Frequency-torque characteristics

B_chinajingjin20090703171657

Connections

1.2° 86mm 3phase Hybrid Stepper Motor-NEMA34 J3913-H
