OEM 2618A Forged Aluminum Metal Parts For Airplane Cylinder Head And Piston
OEM 2618A Forged Aluminum Metal Parts For Airplane Cylinder Head And Piston
OEM 2618A Forged Aluminum Metal Parts For Airplane Cylinder Head And Piston
OEM 2618A Forged Aluminum Metal Parts For Airplane Cylinder Head And Piston
OEM 2618A Forged Aluminum Metal Parts For Airplane Cylinder Head And Piston
OEM 2618A Forged Aluminum Metal Parts For Airplane Cylinder Head And Piston
OEM 2618A Forged Aluminum Metal Parts For Airplane Cylinder Head And Piston
OEM 2618A Forged Aluminum Metal Parts For Airplane Cylinder Head And Piston
Specifications
Brand Name :
JIMA
Model Number :
ALP
Certification :
ISO9001-2008,SGS,ROHS.
Place of Origin :
CHINA
MOQ :
1PCS
Price :
Negotiations
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs /per month
Delivery Time :
10~20days
Packaging Details :
Standard Export Wooden Pallet
Application :
Airplane Cylinder Head And Piston
Name :
OEM 2618A Forged Aluminum Metal Parts For Airplane Cylinder Head And Piston,Metal Parts,Forging Parts
Standard :
JIS, DIN, BS, ASTM, SAE.
Alloy :
AL2618A
Sample :
Can be Customized
Surface treatment :
Anodizing,Plating,Satin,Painting,Powder Coating,Anodized etc
Process :
Forging
Mold :
Can be Customized
Description

OEM 2618A Forged Aluminum Airplane Cylinder Head, Piston hub Auto Aluminum Parts, Forged Aluminum parts


Product Description

Material

Aluminum Alloy 2618A

Process

Forging+CNC+Heat Treatment

Surface Treatment

Transparent ;Color Anodized;Hard Anodizing;Powder Coating;
Sandblasting, Laser Carving, Silk Screening;
Nickel-Plated, Chrome, Galvanized, Silver/Gold Plating;
Black Oxide Coating; Polishing; etc...

Manufacture Ability

Depends on The Complexity Of Different Products And Quantities

Experience

Aluminum Machining Service for 12 Years

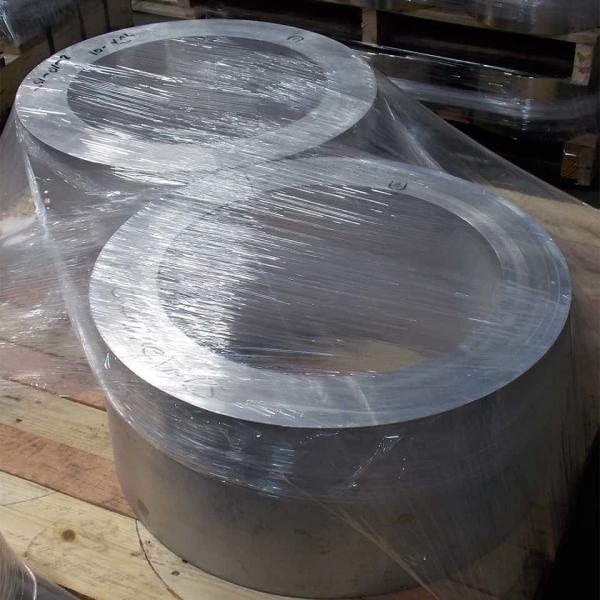

Packaging

Standard Export Wooden Pallets
Another Request According to Your Need

MOQ

1pcs

Sample

Can be Customized

Mold

Can be Customized

Lead Time

Mold for 15-20 Days

Process for 15-20 Days

OEM

Can be Customized

Chemical Composition of 2618A

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Ni

Zn

Ti

Zr

Others

Al

Each

Total

2618A

0.15-0.25

0.9-1.4

1.8-2.7

0.25

1.2~1.8

-

0.8~1.4

0.15

0.2

~

0.05

0.15

Rest

Properties

Metric

Imperial

Density

2.76g/cm³

0.0997 lb/in³

Melting point

549 - 638°C

1020 - 1180°F

Mechanical Properties

Properties

Metric

Tensile

Tensile Strength

372 MPa

54000 psi

Tensile Strength, Ultimate

441 Mpa

64000 psi

Shear Strength

262 Mpa

38000 psi

Fatigue Strength (completely reversed stress; RR Moore machine/specimen)

124 Mpa

18000 psi

Elastic Modulus (AA; Typical; Average of tension and compression)

74.5 Gpa

10800 ksi

Poisson's ratio

0.33

0.33

Elongation at Break

10% at -28.0 °C

10% -18.4 °F

14% at 149 °C

14% at 300 °F

50% at 260 °C

50% at 500 °F

Thermal Properties

Thermal Properties

Metric

Imperial

Thermal Conductivity

146 W/m-K

1010 BTU-in/hr-ft²-°F

Specific Heat Capacity

0.875 J/g-°C

0.209 BTU/lb-°F

Room Temperature Tensile Properties of 2618A Aluminum Alloy Forgings in T61 State

Type

Specs/mm

Direction

Tension strength Rm/MPa

Prescribed plastic elongation strength Rp0.2/MPa

Elongation A
(%)

Die forgings

Thickness≤100

400

310

4

380

290

4

Flat forging

≤50

Portrait

400

325

7

Long transverse

380

290

5

Short transverse

360

290

4

51-76

Portrait

400

315

7

Long transverse

380

290

5

Short transverse

360

290

4

77--100

Portrait

385

310

7

Long transverse

365

275

5

Short transverse

350

270

4

Rolling ring

Thickness≤63

Tangential direction

380

285

6

Axial direction

380

285

5

STANDARD SPECIFICATIONS

  • DIN 3.1924

  • DTD 717A

  • DTD 731B

  • DTD 745A

  • DTD 5070B

  • DTD 5014

  • DTD 5084A

  • MSRR 8018

  • MSRR 8016

  • BS Pre-1980 H16

  • CM001-1 T6

  • CM001-3 H28

  • Hiduminium 58

  • GB-D19S

  • SO7-1103 (S07-1103)

  • A-U2GN

  • UNI 9002/6

  • L-3171

  • CCT LA 767

  • AIRBUS-ABM1-1006

  • BAEM 1101

  • BAEM 1103

  • MM 0531

  • AIR 9048.640 T351

  • AIR 9048.640 T851

  • AIR 9051A

  • AIR 9048.150

  • AIR 9048.170

  • AIR 9048.640

  • Werkstoff Nr. 3.1924 T651

  • EN 2123 T351

  • EN 2123 T851

  • EN 3553 T6511

  • ASN-A-3355

  • ASN-A-3357

Product Show

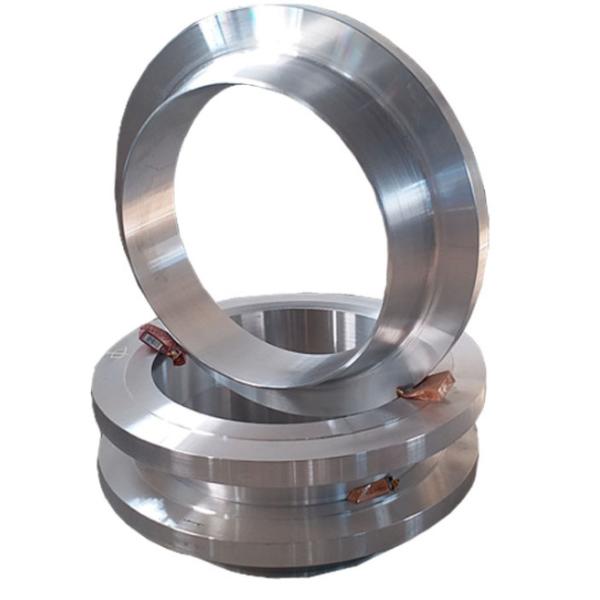

OEM 2618A Forged Aluminum Metal Parts For Airplane Cylinder Head And Piston
