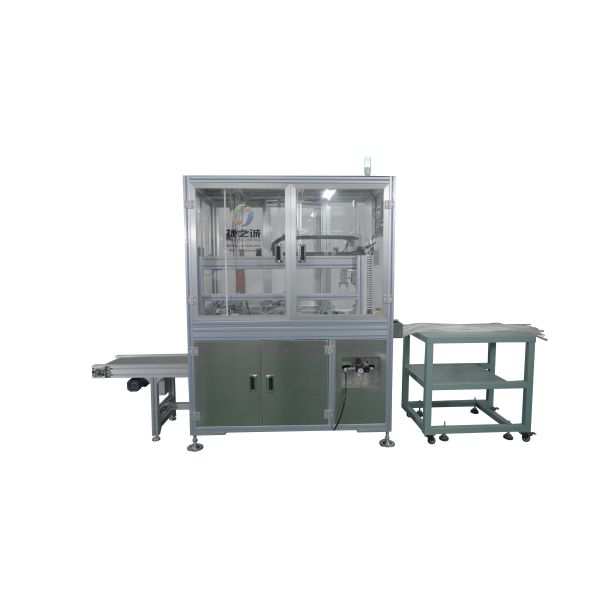

Dual Catheter Bundling and Welding Machine Automated Double Lumen Catheter Coiling Cutting And Bundling Equipment SDG001
Dual Catheter Bundling and Welding Machine Automated Double Lumen Catheter Coiling Cutting And Bundling Equipment SDG001
Dual Catheter Bundling and Welding Machine Automated Double Lumen Catheter Coiling Cutting And Bundling Equipment SDG001
Dual Catheter Bundling and Welding Machine Automated Double Lumen Catheter Coiling Cutting And Bundling Equipment SDG001
Specifications
Brand Name :
JZC
Model Number :
JZC-SDG001
Place of Origin :
Jiangsu,China
MOQ :
1
Price :
Negotiable
Payment Terms :
Western Union
Supply Ability :
10 sets per 120 days
Delivery Time :
90-120 days
Packaging Details :
Negotiable
Description

Product Description:

Dual Catheter Bundling and Welding Machine Automated Double Lumen Catheter Coiling Cutting And Bundling Equipment SDG001

Dual Catheter Bundling and Welding Machine Automated Double Lumen Catheter Coiling Cutting And Bundling Equipment SDG001Dual Catheter Bundling and Welding Machine Automated Double Lumen Catheter Coiling Cutting And Bundling Equipment SDG001

Equipment Function:

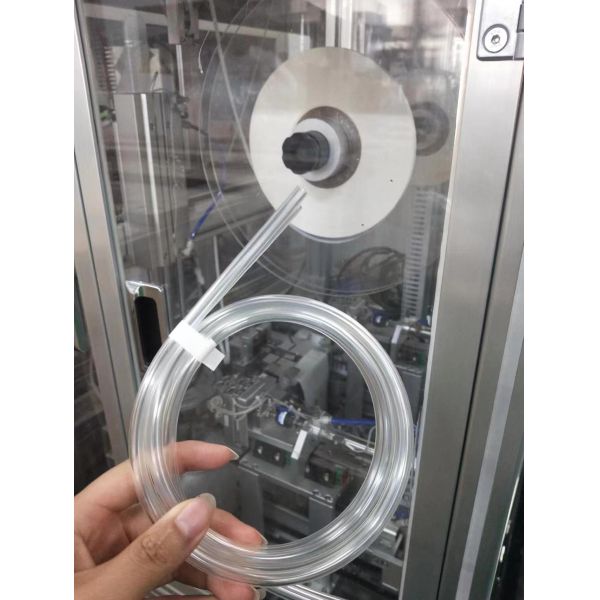

The equipment is used for 980-1050 or 920-940 mm in length and 6.4-6.7 mm in outer diameter; PVC soft, paralleel double pipe coil, binding, welding, munual feeding, automatic coil, binding and welding and other functions. The processing is automated, which is more efficient and cost-efficient.

1. Production efficiency, 6s/piece;

2. The length of the welding position between the hose tail and strapping belt can be set;

3. After 120 high temperature sterilization, the strapping strength of the strapping catheter remained;

4. Different fixture can be designed according to the length of the hose, which is universal;

5. The compact and reasonable structure design make the operation and maintenance more humanized;

6. With automatic counting function.

Technology Parametres:

1. External dimension: 1.4*0.9*1.7M;

2. Power supply: 220V,50HZ;

3. Equipment power: 2.0KW;

4. Air source 0.5-0.7MPA (the equipment can not work normally when the air pressure is lower than 0.5MPA);

5. The operation system uses PLC to display the interface.

Configuration instruction:

1. Pneumatic components: AirTAC cylinder;

2. Switch control button: IDEC Japan;

3. PLC: Siem;

4. Operation interface: Siem;

5. Motor: Panas;

6. Electric control module: LS;

7. Switching power supply: Mingwei;

8. Bearing: NSK;

9. Welding system: JZC development.

Application scope:

It is suitable for the coil binding of various plastic pipes. The length of the pipe can be customized without standard.
