Medical Check Valve Automatic Production Machine One-way Valve Automated Assembly Equipment Jiezhicheng Automation
Medical Check Valve Automatic Production Machine One-way Valve Automated Assembly Equipment Jiezhicheng Automation
Medical Check Valve Automatic Production Machine One-way Valve Automated Assembly Equipment Jiezhicheng Automation
Medical Check Valve Automatic Production Machine One-way Valve Automated Assembly Equipment Jiezhicheng Automation
Medical Check Valve Automatic Production Machine One-way Valve Automated Assembly Equipment Jiezhicheng Automation
Medical Check Valve Automatic Production Machine One-way Valve Automated Assembly Equipment Jiezhicheng Automation
Specifications
Brand Name :
JZC
Model Number :
JZC-DXF001
Place of Origin :
Jiangsu, China
MOQ :
1
Price :
negotiable
Payment Terms :
Western Union
Supply Ability :
10 sets per 120 days
Delivery Time :
90-120 days
Packaging Details :
negotiable
Productname :
Check Valve Assembly Machine
Operatingmode :
Semi-automatic / Fully automatic
Safetyfeatures :
Emergency stop, safety guards
Controlsystem :
PLC control with touch screen interface
Dimensions :
1500 mm x 1200 mm x 1600 mm
Maintenance :
Easy maintenance with modular design
Materialcompatibility :
plastic valve components
Materialfeedingmethod :
Automatic feeder
Machinetype :
Automated Assembly Equipment
Application :
Assembly of check valves
Airpressurerequirement :
0.6 MPa
Machineweight :
Approx. 500 kg
Powersupply :
220V/380V, 50/60Hz
Assemblyaccuracy :
±0.01 mm
Description

Product Description:

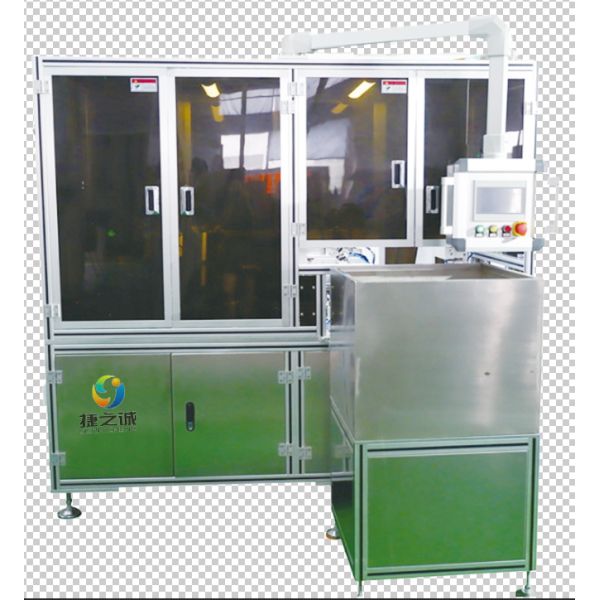

Medical Check Valve Automatic Production Machine One-way Valve Automated Assembly Equipment Jiezhicheng Automation

Medical Check Valve Automatic Production Machine One-way Valve Automated Assembly Equipment Jiezhicheng AutomationMedical Check Valve Automatic Production Machine One-way Valve Automated Assembly Equipment Jiezhicheng Automation

Equipment Function:

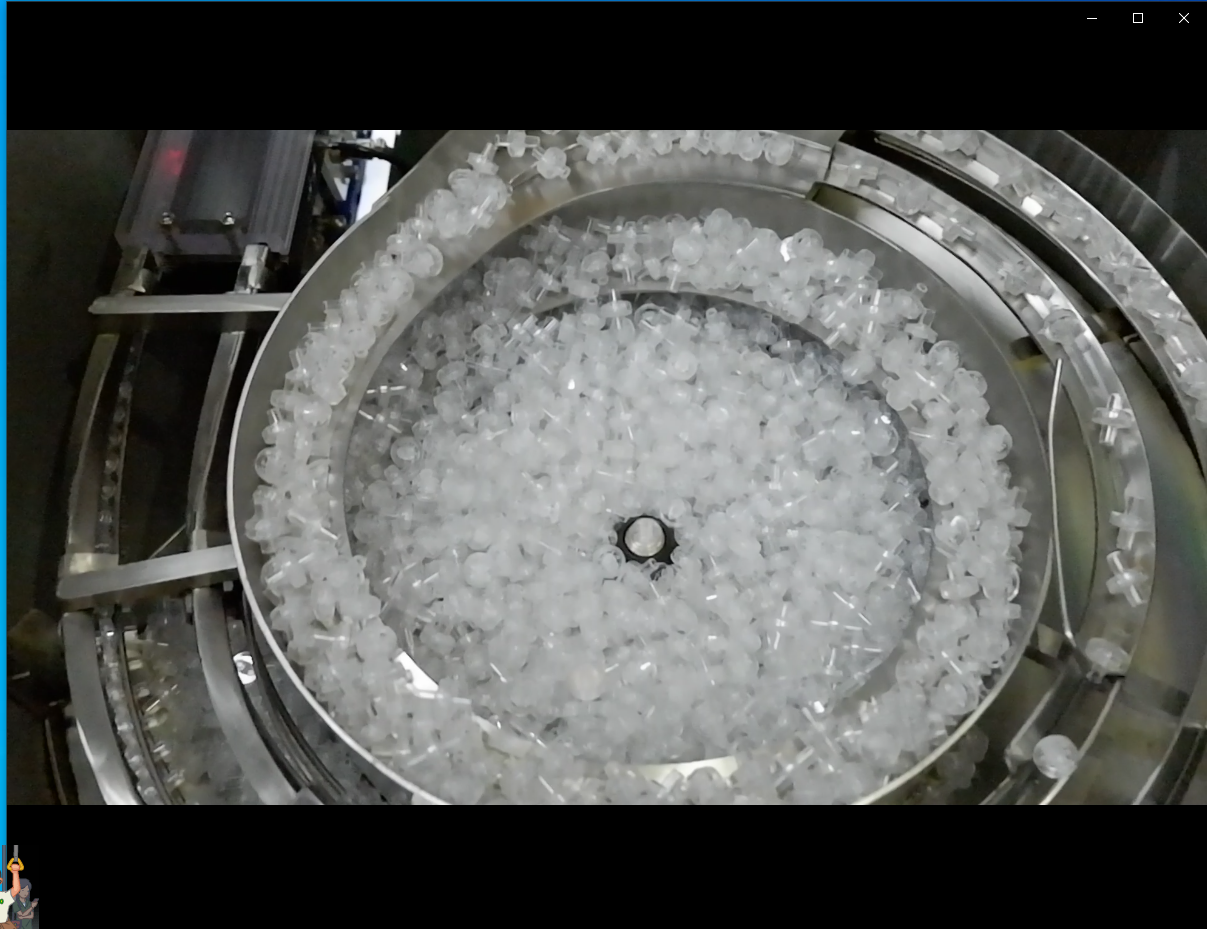

1. Automatically feeding device;

2. With automatic hose positioning and loading mechanism;

3. With automatic coating UV glue and cyclohexanone mechanism;

4. With luer automatic assembly mechanism;

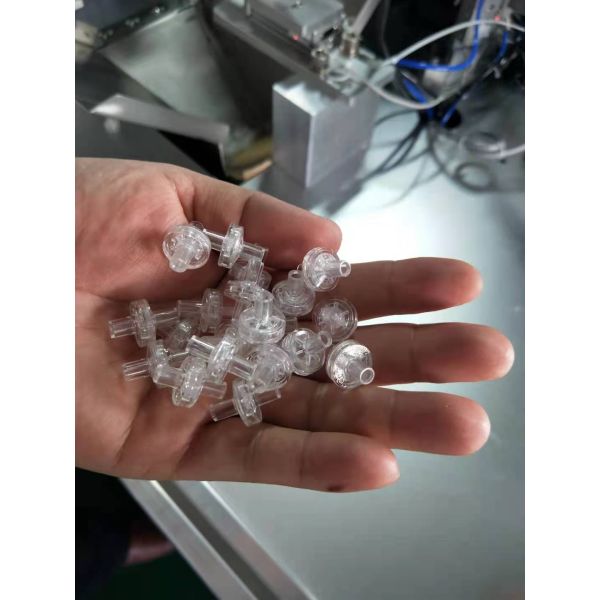

5. It has automatic assembly mechanism of one-way valve;

6. With one-way valve UV curing mechanism;

7. Automatic detection mechanism for product ventilation;

8. Defective product screening agency;
9. Complete safety protection device.

Technology parametres:

1. Power supply: 380V50HZ;

2. Power: 3.0KW;

3. Air supply: 0.5-0.7mpa( Equipped with low pressure detection sensor, ensure the production process of good field);

4. The operating system adopts programmable controller PLC and man-machine interface display.

Configuration instructions:

1. Pneumatic components: SMC cylinder;

2. Electric control PLC: Omron;

3. Operation inerface: Siem:

4. UV lamp and controller: Omron;

5. Digital dispensing machine: Meiyuan;

6. Stepping motor: Panas;

7. Servo motor: Panas;

8. Liner guide rail: WIHIN;

9. Bearing NSK, Japan.

Application Scope:

Suitable for luer and hose length of 80mm--100mm assembly and testing. Size can be customized.
