Two Station Flat Sheet Membrane Production Machine Automatic UF Film Sheet Cutting And Welding Machine PBM001
Two Station Flat Sheet Membrane Production Machine Automatic UF Film Sheet Cutting And Welding Machine PBM001
Specifications
Delivery Time :
90 -120 days
Productioncapacity :
Up to 1000 square meters per day
Materialcompatibility :
Polymeric membranes (e.g., PVDF, PES, PAN)
Production Delivery :
51 days
Machinedimensions :
Length 3000mm x Width 1500mm x Height 1800mm
Model Number :
PBM001
Controlsystem :
PLC with touch screen interface
Safetyfeatures :
Emergency stop, overload protection, safety guards
Price :
negotiable
Packaging Details :
Negotiable
Coolingsystem :
Water cooling or air cooling options
Supply Ability :
10 sets per 120 days
Membranewidthrange :
Up to 2000 mm
Applicable Material :
non-woven fabric
Payment Terms :
Western Union, , T/T
Production Beat :
3-4slices in 1 minute
Filmwidth :
Up to 2000 mm
Place of Origin :
China
Productname :
Membrane Manufacturing Equipment
MOQ :
1 set
Diaphragm Shape :
Square Oval Circle etc
Material Of Construction :
Stainless Steel 304/316
Brand Name :
JZC
Automationlevel :
Semi-automatic / Fully automatic options
Description

Product Description

Two Station Flat Sheet Membrane Production Machine Automatic UF Film Sheet Cutting And Welding Machine PBM001

Two Station Flat Sheet Membrane Production Machine Automatic UF Film Sheet Cutting And Welding Machine PBM001

Technical parameters:

Equipment Dimensions:2000*2200*H2100mm

Equipment Weight:1900Kg

1. Production Cycle: 25~40 seconds per side (manual operation time excluded)
2. Operators Required: 2 persons
3. Voltage: AC 220V, Three-phase Four-wire System
4. Frequency: 60Hz
5. Power: 12.5KW
6. Compressed Air: Pressure ＞0.6MPa, Flow Rate 0.55m³/min

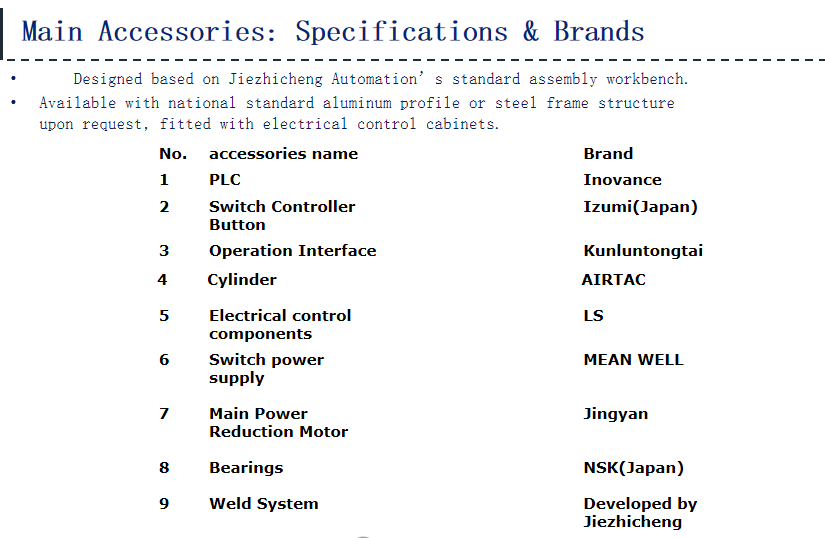

Main Accessories: Specifications & Brands

Designed based on Jiezhicheng Automation’s standard assembly workbench.
Available with national standard aluminum profile or steel frame structure upon request, fitted with electrical control cabinets.

Two Station Flat Sheet Membrane Production Machine Automatic UF Film Sheet Cutting And Welding Machine PBM001
