Fully Automatic Guidewire Sheath Coiling Machine Automatic Guidewire Sheath Coiling Machine 2 Pcs / 18s 4-Axis Robotic Snap Fitting Low Loss DSHT001
Fully Automatic Guidewire Sheath Coiling Machine Automatic Guidewire Sheath Coiling Machine 2 Pcs / 18s 4-Axis Robotic Snap Fitting Low Loss DSHT001
Fully Automatic Guidewire Sheath Coiling Machine Automatic Guidewire Sheath Coiling Machine 2 Pcs / 18s 4-Axis Robotic Snap Fitting Low Loss DSHT001
Fully Automatic Guidewire Sheath Coiling Machine Automatic Guidewire Sheath Coiling Machine 2 Pcs / 18s 4-Axis Robotic Snap Fitting Low Loss DSHT001
Specifications
Model Number :
JZC-DSHT001
Price :
Negotiable
Packaging Details :
Negotiable
Supply Ability :
10 sets per 120 days
Payment Terms :
Western Union, T/T
Place of Origin :
China
Delivery Time :
90-120 days
MOQ :
1
Brand Name :
JZC
Description

Product Description:

Fully Automatic Guidewire Sheath Coiling Machine Automatic Guidewire Sheath Coiling Machine 2 Pcs / 18s 4-Axis Robotic Snap Fitting Low Loss DSHT001

Fully Automatic Guidewire Sheath Coiling Machine Automatic Guidewire Sheath Coiling Machine 2 Pcs / 18s 4-Axis Robotic Snap Fitting Low Loss DSHT001Fully Automatic Guidewire Sheath Coiling Machine Automatic Guidewire Sheath Coiling Machine 2 Pcs / 18s 4-Axis Robotic Snap Fitting Low Loss DSHT001

Equipment Functions:

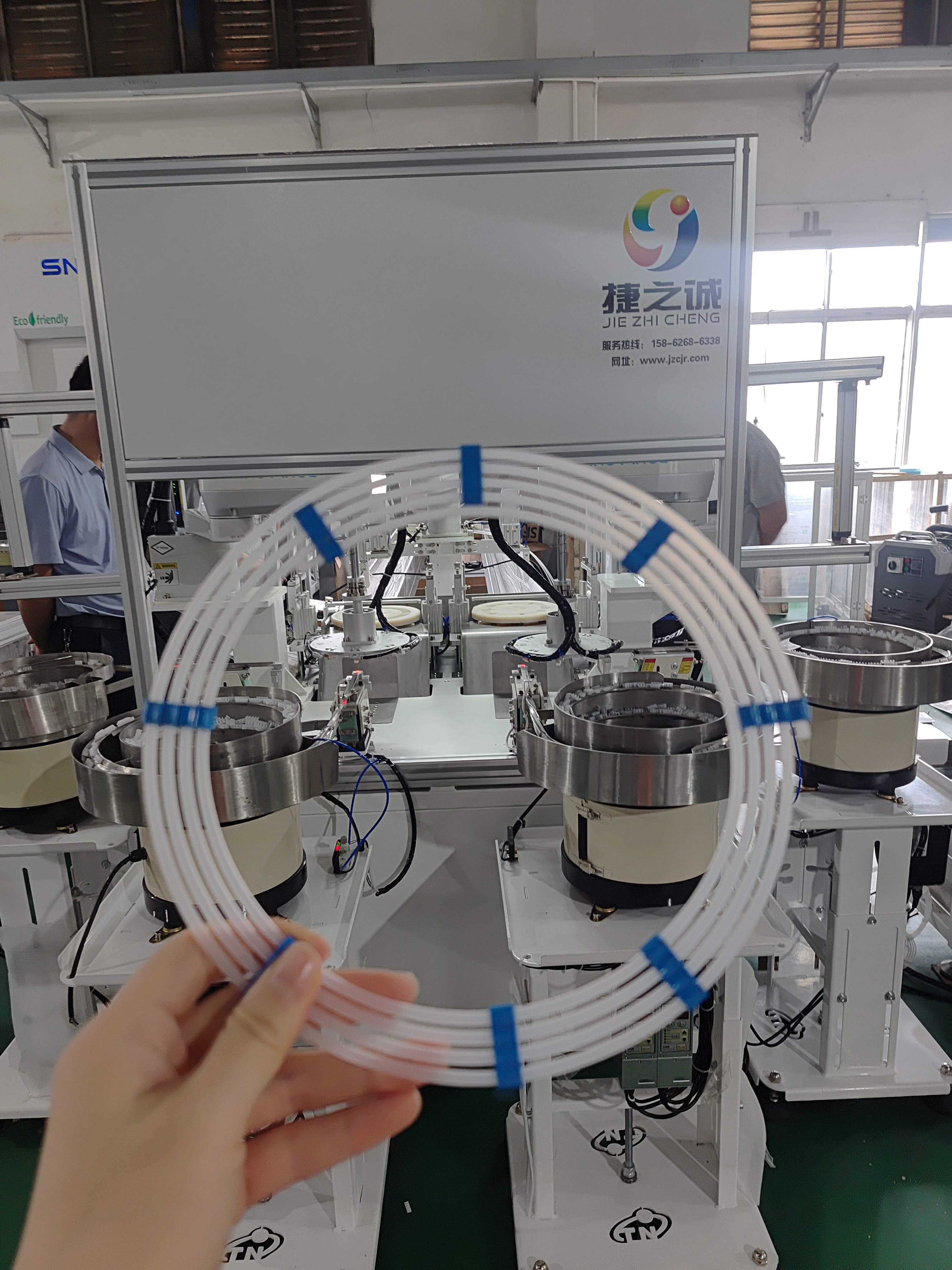

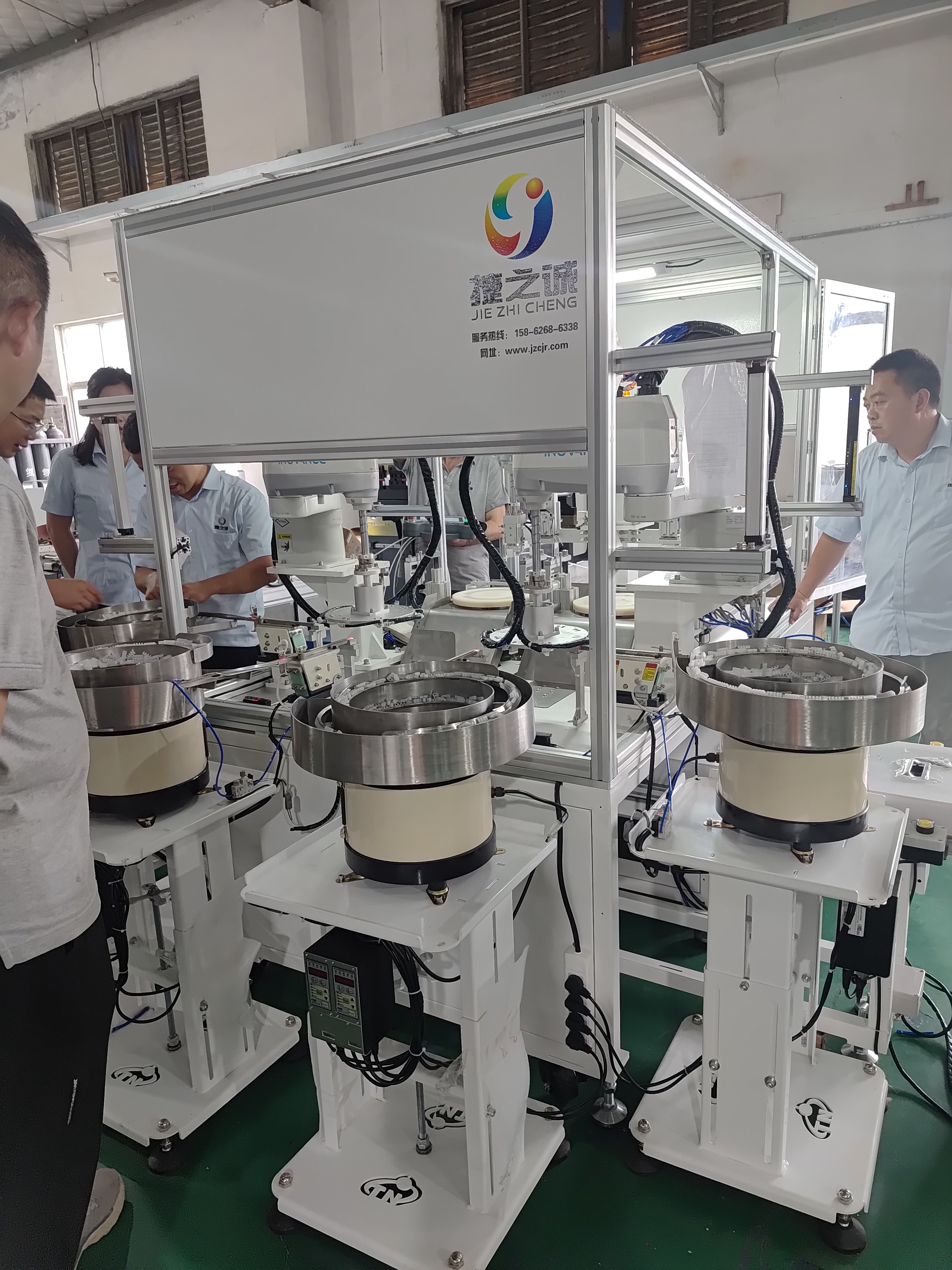

Fully automatic coil device for guide wire sheathing, can be adapted to different molds according to different products Dual station automatic loading, coiling, and unloading.
Production efficiency, 18S/2 pieces;
Applicable to different product size requirements;
The snap assembly uses Huichuan 4-axis robot to collect and assemble materials, which has low loss and high efficiency.

Technical Parametres:

Appearance size: length 1.6m × width 1.2m × height 1.9m
Power supply: 380V, 50HZ
Equipment power: 10.0KW
Gas source 0.6MPA
The operating system uses a programmable controller PLC plus a friendly human-machine interface display.

Configuration specification:

1. Pneumatic components: Yade Guest Cylinder

2. Switch control button: Japan Waizumi

3. PLC: Huichuan

4. Operation interface: Kunlun Tongtai

5. Motor: Huichuan

6. Electrical control components: LS

7. Switching power supply: Mingwei

8. Bearing: NSK

9. Four-axis robot: matching the sky

Scope of application:

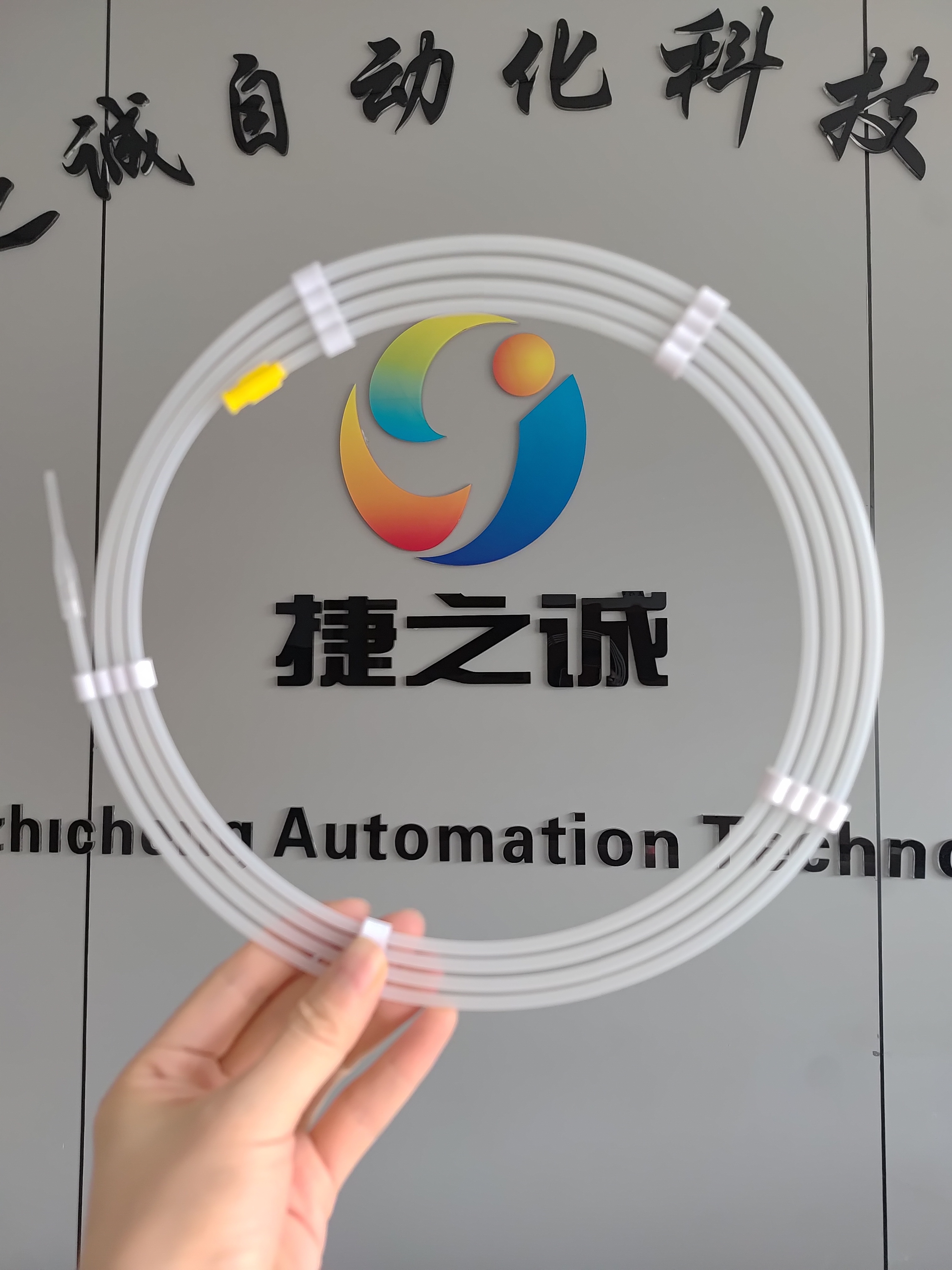

Application field: Fully automatic coil upper snap buckle suitable for guidewire sheathing, can be equipped with a variety of pipe sizes. Customizable on demand!
